神钢零件查询(6D22CT) - MITSUBISHI DIESEL ENGINE - K909A, K910, K912 & K935 (1/76-12/06) (05-004) - EMERGENCY PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
751 次

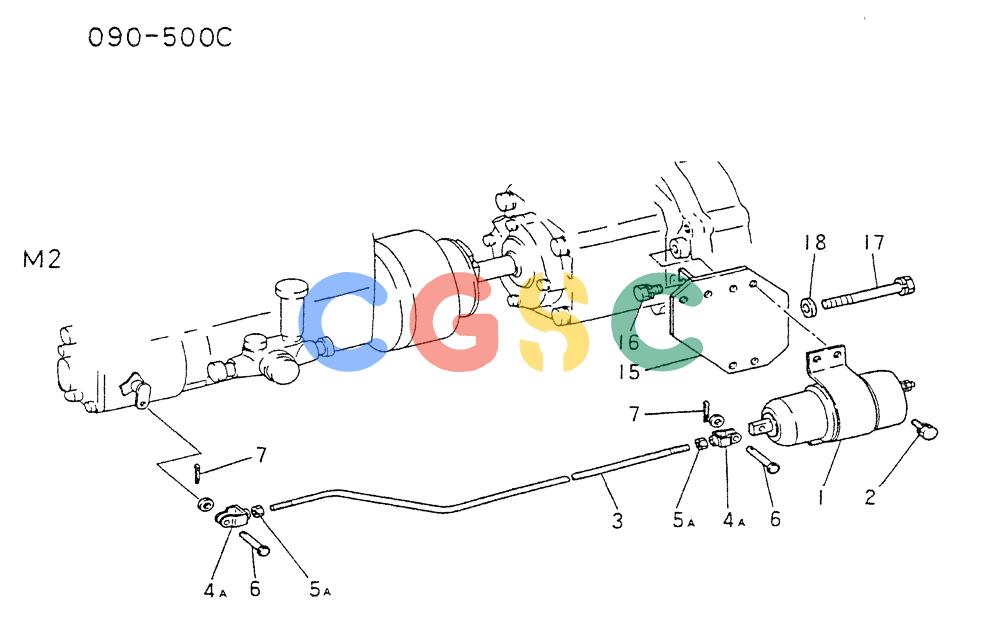

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CZ-KS06 | [1] | EMERGENCY PARTS(M2) | |
| 1. | VA3089804100 | [1] | SOLENOID | KOBSTOP 24V ND |
| 2. | VAMF240049 | [4] | BOLT, W/WSR 8X12 | |
| 3. | VAME059873 | [1] | ROD | |
| 4A. | VAMC429036 | [2] | CLEVIS | KOB |
| 5A. | VAMF430004 | [2] | NUT | KOB6 Superseded by part number: 132434A1 |
| 6. | VAMF472953 | [2] | PIN | KOB6X16 |
| 7. | VAMF472024 | [2] | PIN, SPLIT 1.6X15 | |
| . . | VAMF450004 | [2] | WASHER | KOBPLAIN 6 |
| 15. | VAME059907 | [1] | BRACKET, SOLENOID | |
| 16. | VAMF300841 | [2] | SCREW | KOBW/WSR 10X20 Superseded by part number: 132461A1 |
| 17. | VAMS306008 | [1] | BOLT, W/WSR 10X95 | |
| 18. | VAMC820467 | [1] | SPACER L=3.2 | |
