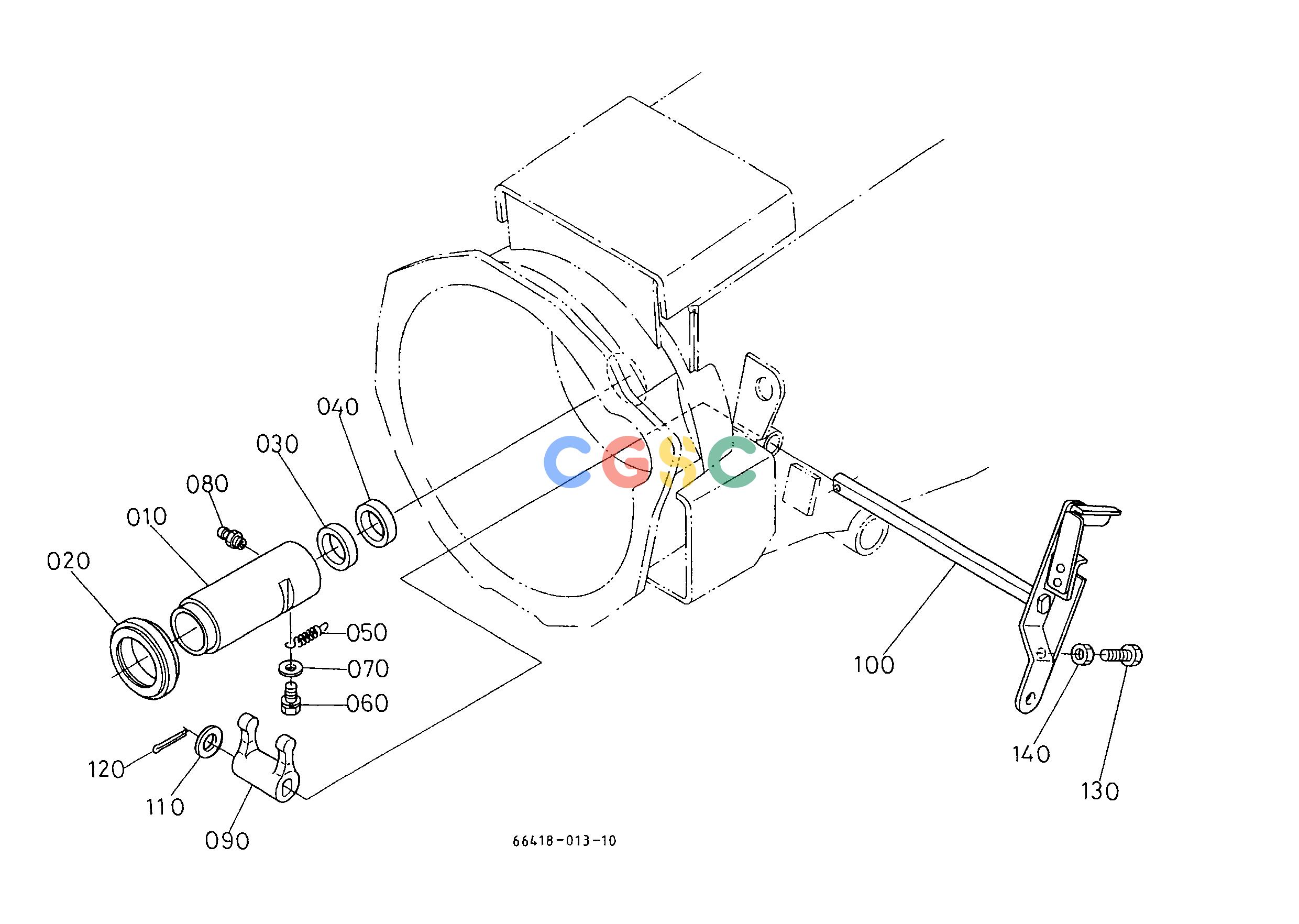

久保田零件查询T04902 CLUTCH ROD CLUTCHEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
562 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6711113413
|
[1] |
HOLDER RELEASE BRG
|
1.1000(lbs); 0.500
|
| 020. |
6636113320
|
[1] |
BEARING BALL
|
0.5500(lbs); 0.250
|
| 030. |
6711113420
|
[1] |
SEAL OIL
|
0.0176(lbs); 0.008
|
| 040. |
6711113430
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 050. |
6661113340
|
[1] |
SPRING RELEASE
|
0.0132(lbs); 0.006
|
| 060. |
0120250610
|
[1] |
BOLT
|
0.0088(lbs); 0.004
|
| 070. |
0401360060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 080. |
0661310675
|
[1] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 090. |
6711113450
|
[1] |
FORK CLUTCH RELEASE
|
0.3300(lbs); 0.150
|
| 100. |
6641913460
|
[1] |
ASSY ROD CLUTCH
|
1.4960(lbs); 0.680
|
| 110. |
0401160160
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 120. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 130. |
6671113320
|
[1] |
BOLT ADJUSTING
|
0.0616(lbs); 0.028
|
| 140. |
0211650100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
