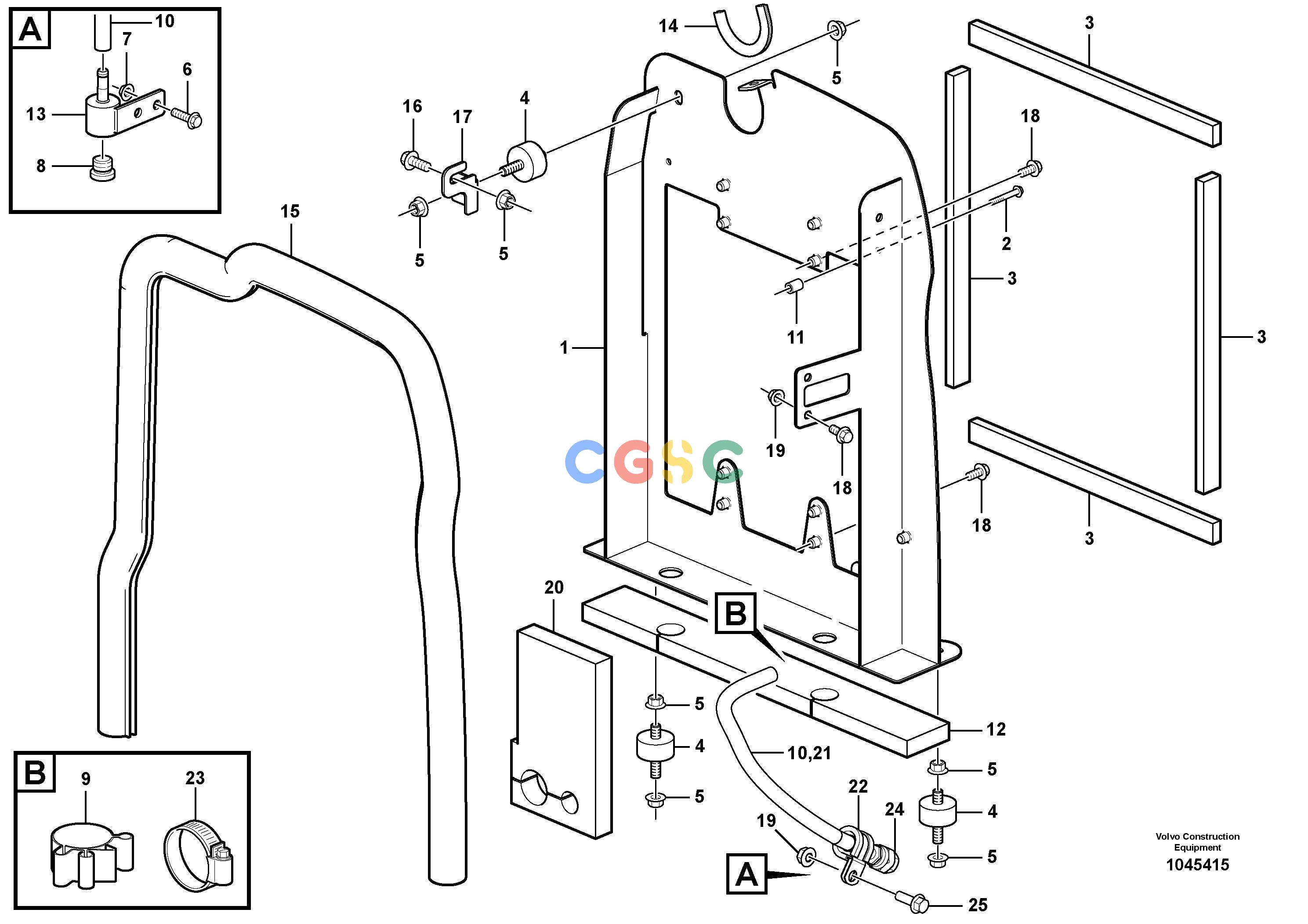

沃尔沃零件查询EC27C Radiator with fitting partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
995 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15614248
|
[1] |
Support
|
|
| 2. |
VOE965176
|
[2] |
Flange screw
|
|
| 3. |
VOE11804619
|
[4] |
Insulating material
|
|
| 4. |
VOE11806235
|
[3] |
Stopping device
|
|
| 5. |
VOE13971095
|
[7] |
Flange nut
|
|
| 6. |
VOE946934
|
[2] |
Flange screw
|
SER NO - 2786
|
| 7. |
VOE945407
|
[2] |
Flange nut
|
SER NO - 2786
|
| 8. |
VOE11804120
|
[1] |
Connector
|
SER NO - 2786
|
| 9. |
VOE11802316
|
[2] |
Clamp
|
SER NO - 2786
|
| 10. |
VOE11807438
|
[1] |
Radiator hose
|
SER NO - 2786
|
| 11. |
VOE930419
|
[2] |
Spacer ring
|
|
| 12. |
VOE11807562
|
[1] |
Insulating plate
|
|
| 13. |
VOE11802284
|
[1] |
Plug
|
|
| 14. |
VOE11808679
|
[1] |
Rubber strap
|
|
| 15. |
VOE11808884
|
[1] |
Sealing kit
|
|
| 16. |
VOE946329
|
[1] |
Flange screw
|
|
| 17. |
VOE11807455
|
[1] |
Support
|
|
| 18. |
VOE946440
|
[6] |
Flange screw
|
|
| 19. |
VOE13945408
|
[3] |
Nut
|
|
| 20. |
VOE11809029
|
[1] |
Insulating material
|
|
| 21. |
VOE15621607
|
[1] |
Hose assembly
|
SER NO 2787 -
|
| 22. |
VOE967531
|
[1] |
Clamp
|
SER NO 2787 -
|
| 23. |
VOE943470
|
[1] |
Hose clamp
|
SER NO 2787 -
|
| 24. |
VOE935651
|
[1] |
Plug
|
SER NO 2787 -
|
| 25. |
VOE13945444
|
[1] |
Screw
|
SER NO 2787 -
|
