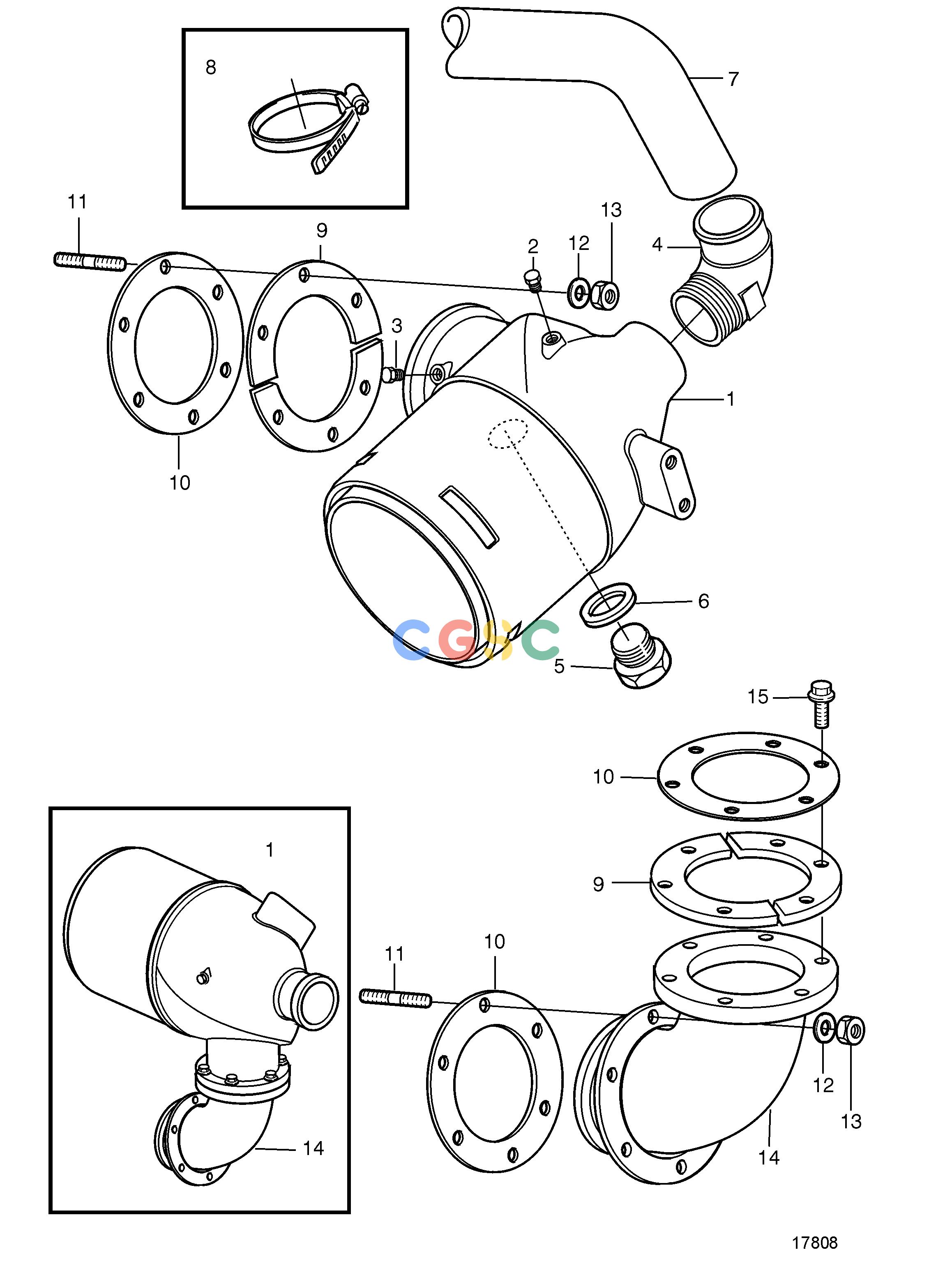

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MIntake and Exhaust SystemWet Exhaust Line 8'' (200mm)EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
790 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21411117
|
[1] |
Exhaust pipe elbow
|
|
| 2. |
981749
|
[1] |
Plug, brass
|
|
| 3. |
479979
|
[1] |
Plug
|
|
| 4. |
813644
|
[1] |
Hose attachment
|
|
| 5. |
914392
|
[2] |
Plug
|
|
| 6. |
947626
|
[2] |
Gasket
|
|
| 7. |
343849
|
[1] |
Radiator hose
|
L=575mm, Early type, Replaced by 3886728
|
| 7. |
3886728
|
[1] |
Hose
|
L=575mm, Late type
|
| 8. |
961672
|
[4] |
Hose clamp
|
|
| 9. |
863442
|
[2] |
Flange
|
|
| 10. |
863353
|
[1] |
Gasket
|
|
| 11. |
479972
|
[6] |
Stud
|
|
| 12. |
941908
|
[6] |
Spring washer
|
|
| 13. |
940183
|
[6] |
Hexagon nut
|
|
| 14. |
3827940
|
[1] |
Exhaust riser
|
Alt
|
| 15. |
981000
|
[6] |
Flange screw
|
|
