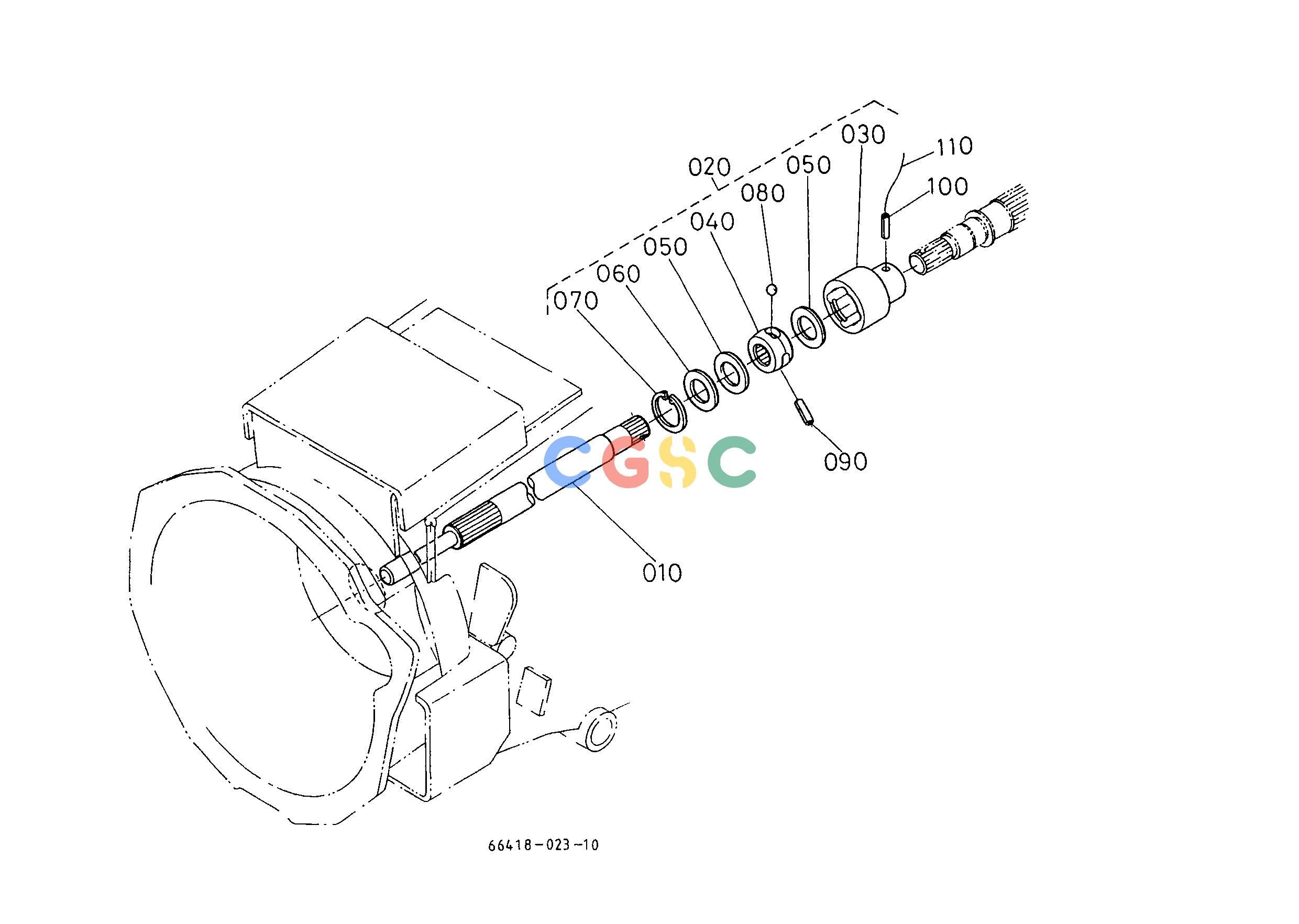

久保田零件查询T05602 PROPELLER SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
414 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6630113610
|
[1] |
SHAFT PROPELLER
|
2.2440(lbs); 1.020
|
| 020. |
6711113700
|
[1] |
ASSY JOINT BALL
|
0.7150(lbs); 0.325
|
| 030. |
6711113710
|
[1] |
COUPLING BALL OUTER
|
0.4950(lbs); 0.225
|
| 040. |
6711113720
|
[1] |
COUPLING BALL INNER
|
0.1650(lbs); 0.075
|
| 050. |
6711113730
|
[2] |
GASKET BALL JOINT
|
0.0044(lbs); 0.002
|
| 060. |
6711113740
|
[1] |
SUPPORT GASKET
|
0.0088(lbs); 0.004
|
| 070. |
0461100350
|
[1] |
CIR CLIP INTERNAL
|
0.0066(lbs); 0.003
|
| 080. |
0771500803
|
[4] |
BALL
|
0.0044(lbs); 0.002
|
| 090. |
0541100632
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 100. |
0541100640
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 110. |
9999999999
|
[1] |
WIRE
|
0.0000(lbs); 0.000
|
