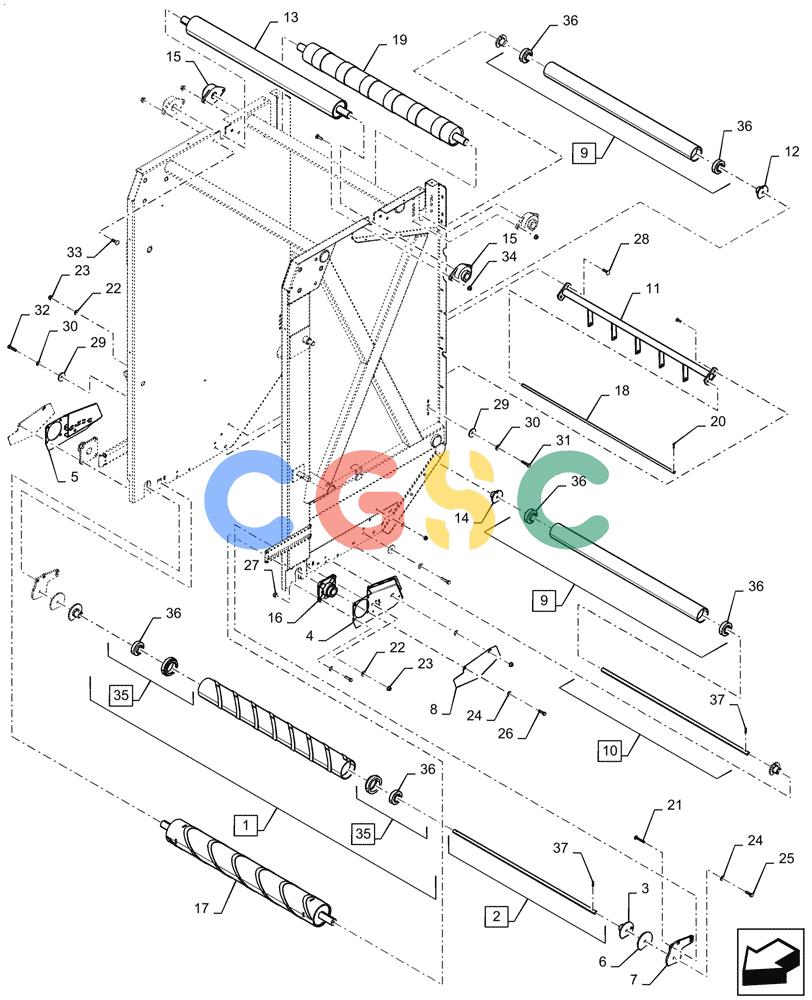

| 1. |
47512226
|
[1] |
ROLL
|
PLO
Chop, Incl 35
|
| 2. |
9823372
|
[1] |
SHAFT,1135mm L
|
NH
|
| 3. |
87654792
|
[1] |
SUPPORT
|
PLO
|
| 4. |
47871214
|
[1] |
BRACKET
|
PLO
|
| 5. |
47876349
|
[1] |
BRACKET
|
PLO
|
| 6. |
47876890
|
[2] |
PLATE
|
PLO
|
| 7. |
47876893
|
[2] |
PLATE
|
PLO
|
| 8. |
47876969
|
[2] |
SHIELD
|
PLO
|
| 9. |
84600572
|
[2] |
ROLL
|
PLO
Adjustable & Lower, Incl 36
|
| 10. |
9823371
|
[1] |
SHAFT
|
NH
Incl 37 Superseded by part number: 87023402
|
| 11. |
86628013
|
[1] |
GUIDE
|
NH
|
| 12. |
86516321
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87654791
|
| 13. |
84560941
|
[1] |
ROLL
|
PLO
Upper Tailgate
|
| 14. |
86521602
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87023400
|
| 15. |
47538078
|
[4] |
BEARING ASSY,40mm ID x 60.3mm H
|
PLO
|
| 16. |
85005084
|
[2] |
BEARING ASSY
|
ZED
|
| 17. |
86611454
|
[1] |
ROLLER
|
NH
Loop Tailgate
|
| 18. |
9800832
|
[1] |
ROD
|
NH
|
| 19. |
47450975
|
[1] |
ROLL
|
NH
Rubber Belt Guide
|
| 20. |
80756
|
[2] |
COTTER PIN,1/8" x 3/4"
|
NH
|
| 21. |
374894
|
[6] |
CARRIAGE BOLT,Sq Nk, M10 x 70mm, Cl 8.8
|
ZED
Superseded by part number: 811-10070
|
| 22. |
140045
|
[10] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 23. |
9804278
|
[10] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 24. |
140046
|
[10] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 25. |
337563
|
[2] |
BOLT,M12 x 1.75 x 47.68mm, Cl 10.9
|
NH
|
| 26. |
86629541
|
[8] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 27. |
9706685
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 28. |
86512446
|
[4] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 29. |
29684
|
[4] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
|
| 30. |
65319
|
[4] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 31. |
9706702
|
[2] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
NH
|
| 32. |
43260
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
|
BHB
|
| 33. |
328754
|
[8] |
CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 34. |
9804279
|
[8] |
FLANGE NUT,Hex, M12, Cl 8
|
NH
Superseded by part number: 86512497
|
| 35. |
47935418
|
[2] |
BEARING HOUSING
|
NH
Incl 36
|
| 36. |
84259867
|
[2] |
BALL BEARING,38.1mm ID x 80mm OD x 22mm W
|
PLO
|
| 37. |
130045
|
[2] |
PIN,5mm OD x 26mm L, Slotted
|
NH
|
