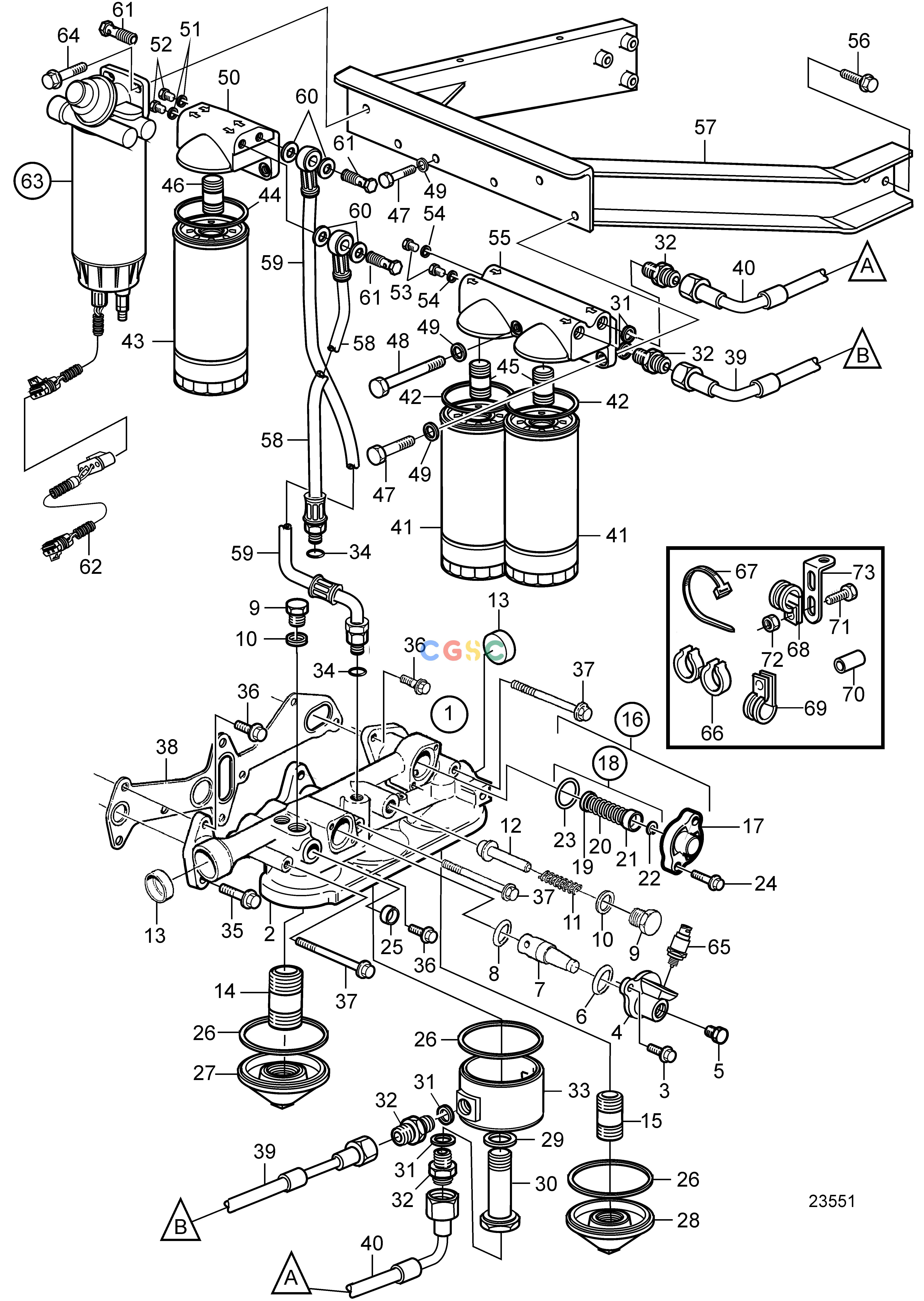

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MLubricating SystemOil Filter Housing and Oil Filter, Alternative MountingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
215 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3886152
|
[1] |
Oil filter housing
|
|
| 2. |
8170274
|
[1] |
Oil filter housing
|
|
| 3. |
946544
|
[2] |
Flange screw
|
|
| 4. |
3827980
|
[1] |
Cap
|
|
| 5. |
479979
|
[1] |
Plug
|
|
| 6. |
949659
|
[1] |
O-ring
|
|
| 7. |
471646
|
[1] |
Piston cooling valve
|
(3830140)
|
| 8. |
469846
|
[1] |
Sealing ring
|
|
| 9. |
471598
|
[2] |
Plug
|
|
| 10. |
947627
|
[2] |
Gasket
|
|
| 11. |
3830138
|
[1] |
Compression spring
|
|
| 12. |
471085
|
[1] |
Valve cone
|
|
| 13. |
948812
|
[2] |
Cap plug
|
|
| 14. |
469904
|
[1] |
Nipple
|
|
| 15. |
466623
|
[1] |
Nipple
|
|
| 16. |
3169687
|
[1] |
Relief valve
|
|
| 17. |
3184806
|
[1] |
Cover
|
|
| 18. |
3169687
|
[1] |
Relief valve
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
955964
|
[1] |
Snap ring
|
|
| 23. |
949659
|
[1] |
O-ring
|
|
| 24. |
947542
|
[2] |
Flange screw
|
|
| 25. |
946778
|
[1] |
Cap plug
|
|
| 26. |
993235
|
[3] |
X-ring
|
|
| 27. |
3812509
|
[1] |
Cover
|
(848431)
|
| 28. |
3812511
|
[1] |
Cover
|
(3828030)
|
| 29. |
944126
|
[1] |
O-ring
|
|
| 30. |
3827458
|
[1] |
Nipple
|
|
| 31. |
976932
|
[4] |
Gasket
|
|
| 32. |
982254
|
[4] |
Nipple
|
|
| 33. |
21157098
|
[1] |
Cover
|
|
| 34. |
976971
|
[2] |
O-ring
|
|
| 35. |
947760
|
[1] |
Flange screw
|
Used when oil filler is mounted on right side., L=40mm
|
| 36. |
945444
|
[5] |
Flange screw
|
L=25mm
|
| 37. |
969225
|
[3] |
Flange screw
|
L=120mm
|
| 38. |
8170534
|
[1] |
Gasket
|
|
| 39. |
3830932
|
[1] |
Oil hose
|
|
| 40. |
3830882
|
[1] |
Oil hose
|
|
| 41. |
478736
|
[2] |
Oil filter
|
|
| 42. |
|
|
|
|
| 43. |
477556
|
[1] |
Oil filter, by-pass
|
|
| 44. |
|
|
|
|
| 45. |
466623
|
[2] |
Nipple
|
|
| 46. |
469904
|
[1] |
Nipple
|
|
| 47. |
946472
|
[4] |
Flange screw
|
L=30mm
|
| 48. |
969313
|
[1] |
Flange screw
|
L=110mm
|
| 49. |
941908
|
[5] |
Spring washer
|
|
| 50. |
11127104
|
[1] |
Oil filter housing
|
|
| 51. |
969011
|
[2] |
Gasket
|
|
| 52. |
960630
|
[2] |
Plug
|
|
| 53. |
960634
|
[2] |
Plug
|
|
| 54. |
976932
|
[2] |
Gasket
|
|
| 55. |
11031901
|
[1] |
Oil filter housing
|
|
| 56. |
968436
|
[6] |
Flange screw
|
L=50mm
|
| 57. |
21376696
|
[1] |
Bracket
|
|
| 58. |
3830981
|
[1] |
Hose
|
|
| 59. |
3831045
|
[1] |
Hose
|
|
| 60. |
969011
|
[4] |
Gasket
|
|
| 61. |
25167
|
[2] |
Hollow screw
|
|
| 62. |
874280
|
[1] |
Extension cable
|
|
| 63. |
7740680_043
|
|
Fuel filter
|
|
| 64. |
946472
|
[2] |
Flange screw
|
|
| 65. |
7740680_154
|
|
Sensor, oil pressure/temperature
|
|
| 66. |
9205207
|
[1] |
Retainer
|
|
| 67. |
948211
|
[1] |
Cable tie
|
|
| 68. |
947827
|
[5] |
Clamp
|
D=25,4mm
|
| 69. |
949747
|
[11] |
Clamp
|
D=15,9mm
|
| 70. |
827861
|
[3] |
Spacer sleeve
|
|
| 71. |
946173
|
[10] |
Flange screw
|
M8x20mm
|
| 71. |
946470
|
[3] |
Flange screw
|
M8x35mm
|
| 71. |
946329
|
[8] |
Flange screw
|
M10x25mm
|
| 71. |
946472
|
[4] |
Flange screw
|
M10x30mm
|
| 71. |
965185
|
[4] |
Flange screw
|
M10x40mm
|
| 72. |
945408
|
[7] |
Flange nut
|
|
| 73. |
965534
|
[1] |
Bracket
|
|
| 73. |
965552
|
[4] |
Bracket
|
|
| 73. |
965555
|
[1] |
Bracket
|
|
| 73. |
965541
|
[1] |
Bracket
|
|
