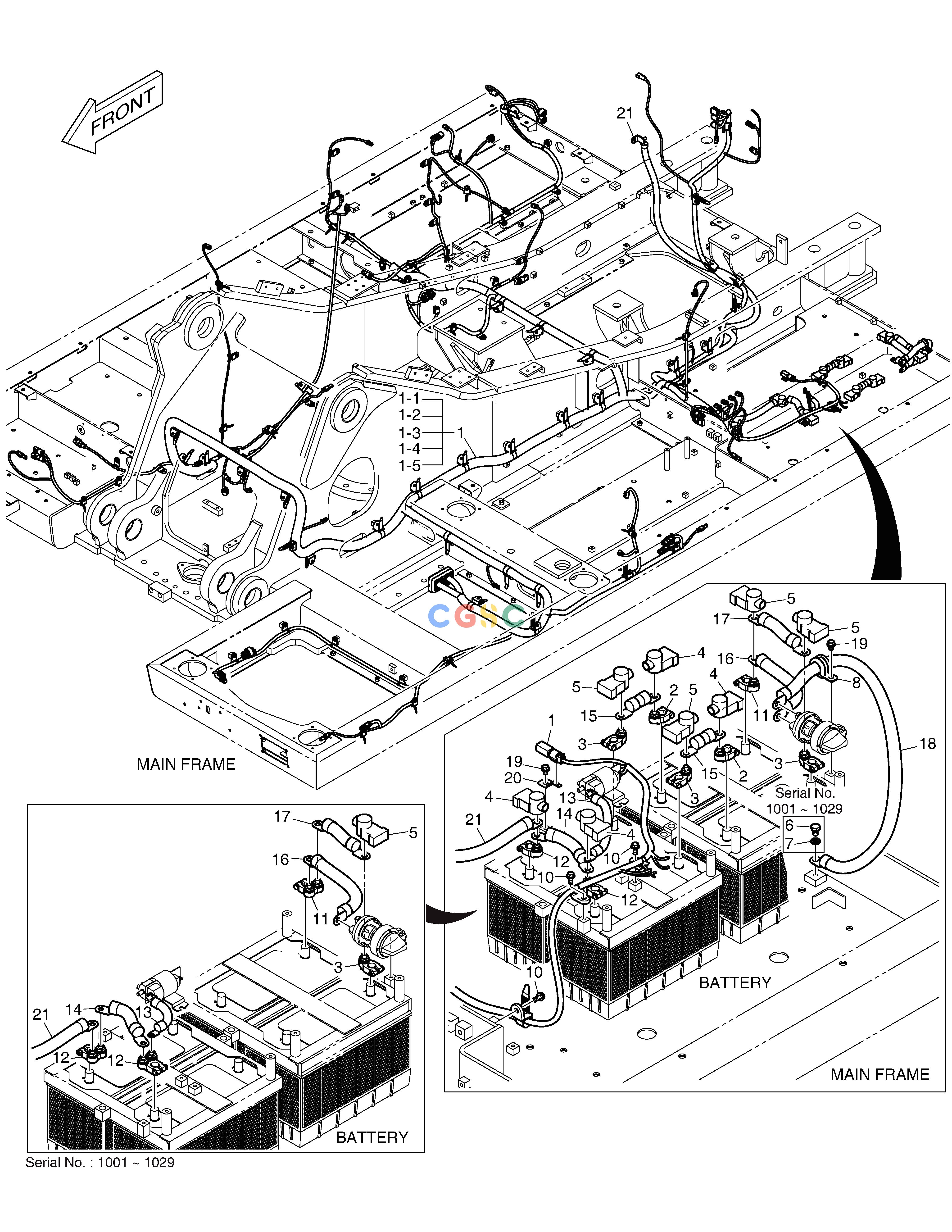

斗山零件查询ELECTRIC WIRING(1500CCA) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
388 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02799
|
[-] |
|
|
| 1. |
310207-03430A
|
[1] |
|
|
| 1. |
310207-03430B
|
[1] |
|
|
| 1. |
310207-03430C
|
[1] |
|
|
| 1-1. |
2548-1027
|
[2] |
DIODE
|
|
| 1-2. |
K1000814
|
[2] |
DIODE
|
|
| 1-3. |
K1000815
|
[1] |
DIODE
|
|
| 1-4. |
120402-00439
|
[1] |
CLIP
|
|
| 1-5. |
120402-00440
|
[1] |
CLIP
|
|
| 10. |
120106-00596
|
[3] |
BOLT
|
|
| 11. |
2550-1014D2
|
[1] |
TERMINAL,BATTERY(-)
|
|
| 11. |
301503-00483
|
[1] |
|
|
| 12. |
2550-1014D1
|
[2] |
TERMINAL,BATTERY(+)
|
|
| 12. |
301503-00484
|
[2] |
|
|
| 13. |
DS4531179
|
[1] |
|
|
| 14. |
DS4531178
|
[1] |
|
|
| 15. |
DS4531177
|
[2] |
|
|
| 16. |
DS4531176
|
[1] |
|
|
| 17. |
DS4531175
|
[1] |
|
|
| 18. |
DS4531174
|
[1] |
|
|
| 19. |
K1001029
|
[2] |
BOLT
|
|
| 2. |
2550-1014D1
|
[2] |
TERMINAL,BATTERY(+)
|
|
| 20. |
2197-1661
|
[1] |
BRACKET
|
|
| 21. |
310203-05677
|
[1] |
|
|
| 3. |
2550-1014D2
|
[3] |
TERMINAL,BATTERY(-)
|
|
| 4. |
2160-1212
|
[4] |
CAP,BATT. TML(+)
|
|
| 4. |
2160-1212
|
[2] |
CAP,BATT. TML(+)
|
|
| 5. |
2160-1213
|
[4] |
CAP,BATT. TML(-)
|
|
| 5. |
2160-1213
|
[3] |
CAP,BATT. TML(-)
|
|
| 6. |
S0511653
|
[1] |
BOLT
|
|
| 7. |
S5102603
|
[1] |
. WASHER
|
|
| 8. |
124-00208D4
|
[1] |
CLIP
|
|
