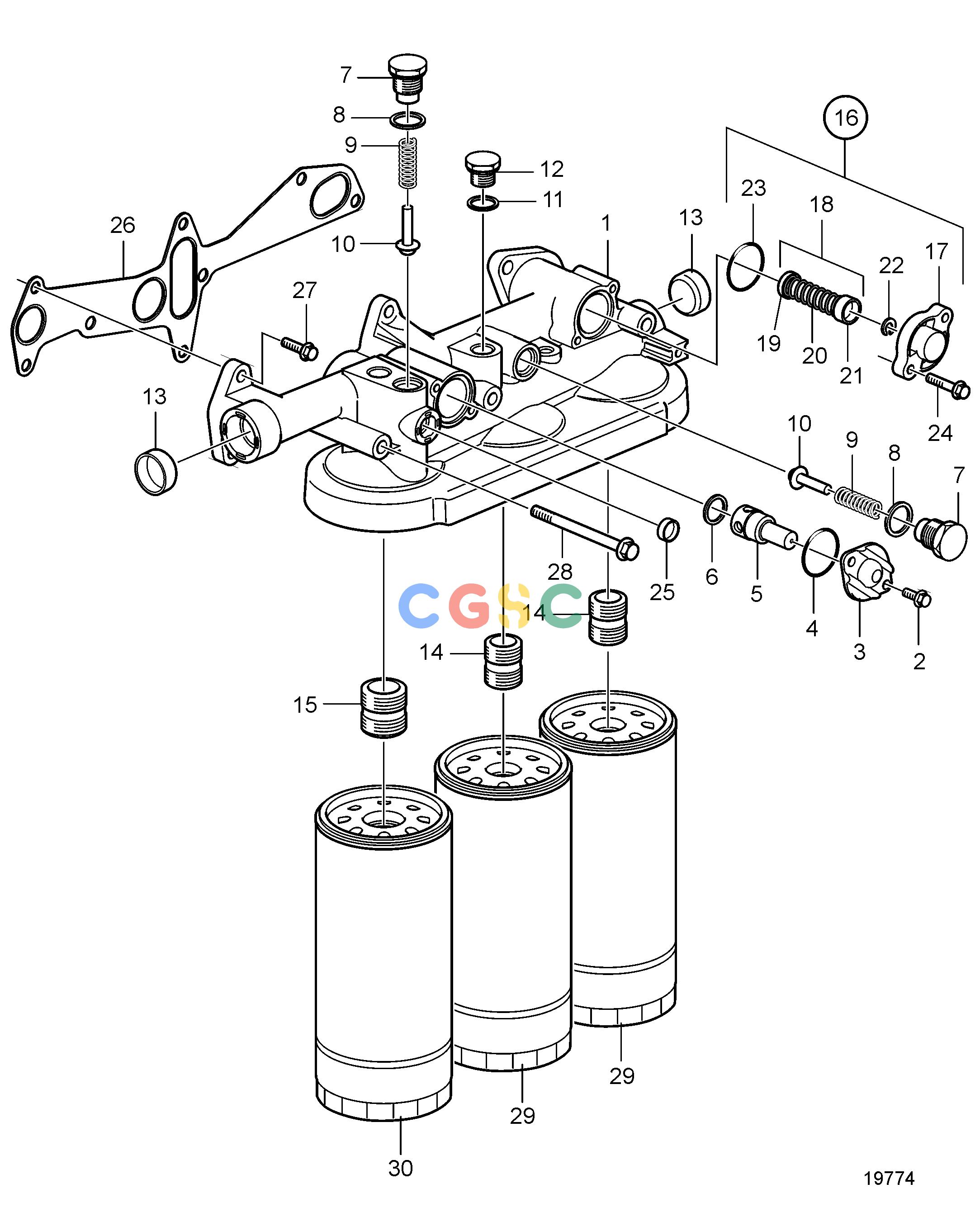

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MLubricating SystemOil Filter Housing and Oil Filter, Standard MountedEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
474 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8170274
|
[1] |
Oil filter housing
|
|
| 2. |
946544
|
[2] |
Flange screw
|
|
| 3. |
471648
|
[1] |
Cover
|
|
| 4. |
949659
|
[1] |
O-ring
|
|
| 5. |
1546305
|
[1] |
Piston cooling valve
|
|
| 6. |
469846
|
[1] |
Sealing ring
|
|
| 7. |
471598
|
[2] |
Plug
|
|
| 8. |
947627
|
[2] |
Gasket
|
|
| 9. |
466653
|
[2] |
Compression spring
|
|
| 10. |
471085
|
[2] |
Valve cone
|
|
| 11. |
11998
|
[1] |
Gasket
|
|
| 12. |
960632
|
[1] |
Plug
|
|
| 13. |
948812
|
[2] |
Cap plug
|
|
| 14. |
466623
|
[2] |
Nipple
|
|
| 15. |
469904
|
[1] |
Nipple
|
|
| 16. |
3169689
|
[1] |
Relief valve
|
|
| 17. |
3184806
|
[1] |
Cover
|
|
| 18. |
3169687
|
[1] |
Relief valve
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
955964
|
[1] |
Snap ring
|
|
| 23. |
976039
|
[1] |
O-ring
|
|
| 24. |
947542
|
[2] |
Flange screw
|
|
| 25. |
946778
|
[1] |
Cap plug
|
|
| 26. |
8170534
|
[1] |
Gasket
|
|
| 27. |
945444
|
[5] |
Flange screw
|
|
| 28. |
969225
|
[3] |
Flange screw
|
|
| 29. |
478736
|
[2] |
Oil filter
|
|
| 30. |
477556
|
[1] |
Oil filter
|
|
