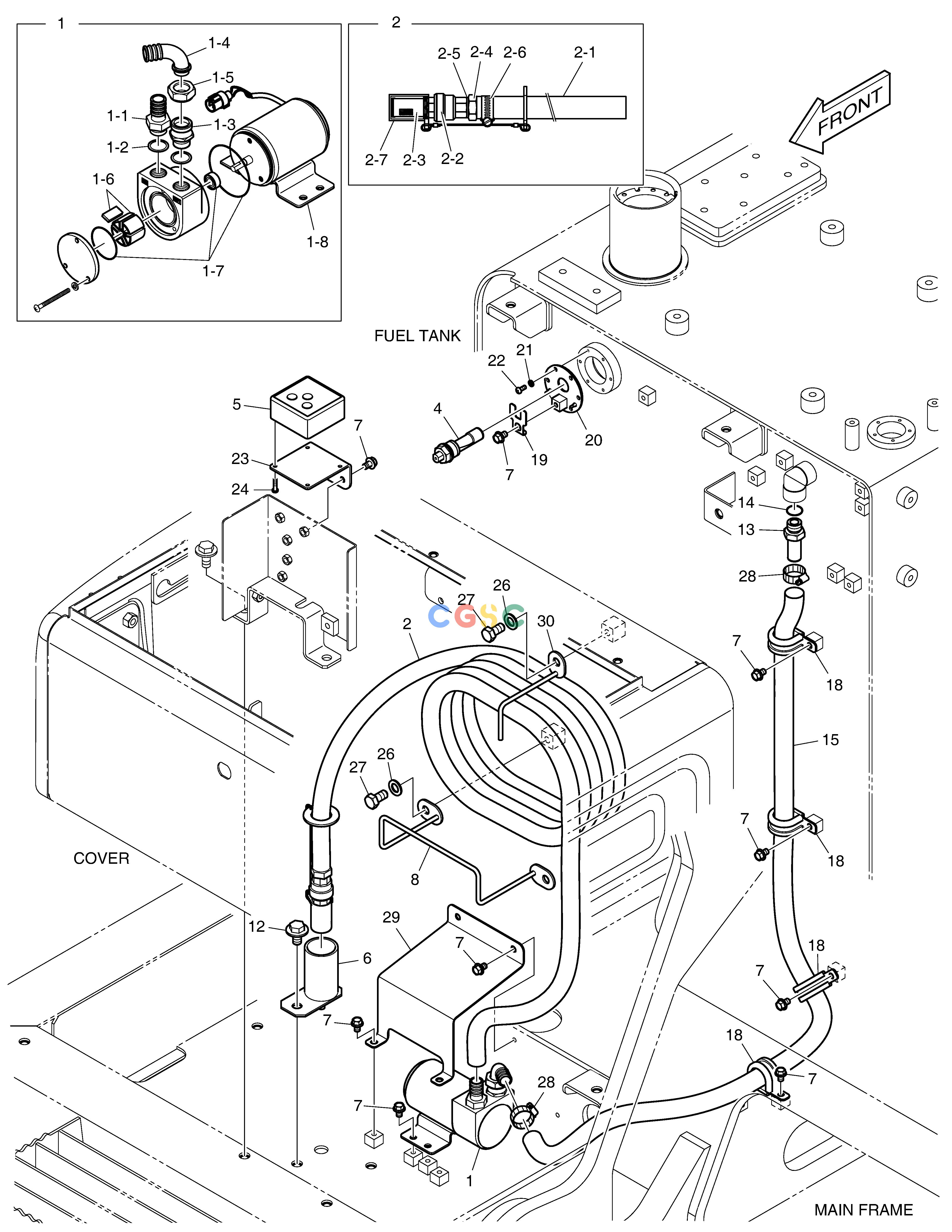

斗山零件查询FUEL FILLER PUMP DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
207 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400909-00087
|
[-] |
|
|
| 1. |
401-00449
|
[1] |
PUMP,FUEL TRANSFER
|
|
| 1-1. |
2181-2755B
|
[1] |
. ADAPTER
|
|
| 1-2. |
S8180321
|
[2] |
. RING,SEAL
|
|
| 1-3. |
181-00809
|
[1] |
. ADAPTER
|
|
| 1-4. |
181-00810
|
[1] |
. ELBOW
|
|
| 1-5. |
121-00085
|
[1] |
. NUT
|
|
| 1-6. |
407-00001
|
[1] |
. VANE KIT
|
|
| 1-7. |
2401-1276KT
|
[1] |
. SEAL KIT
|
|
| 1-8. |
523-00012
|
[1] |
. MOTOR
|
|
| 12. |
DS0025015
|
[1] |
BOLT
|
|
| 13. |
2181-2104D6
|
[1] |
ADAPTER
|
|
| 14. |
S8000181
|
[1] |
O-RING
|
|
| 15. |
DS2079237
|
[1] |
|
|
| 18. |
124-00208D5
|
[4] |
CLIP
|
|
| 19. |
250201-00137A
|
[1] |
|
|
| 2. |
185-00167D3
|
[1] |
HOSE
|
|
| 2-1. |
185-00195D3
|
[1] |
. HOSE
|
|
| 2-2. |
2420-1258
|
[1] |
. VALVE,CHECK
|
|
| 2-3. |
2471-1152
|
[1] |
. STRAINER
|
|
| 2-4. |
2181-2755B
|
[1] |
. ADAPTER
|
|
| 2-5. |
S8180321
|
[1] |
. RING,SEAL
|
|
| 2-6. |
S8450016
|
[2] |
. CLAMP
|
|
| 2-7. |
2160-1336
|
[1] |
. CAP,STRAINER
|
|
| 20. |
110508-00245A
|
[1] |
|
|
| 21. |
S5100203
|
[6] |
WASHER
|
|
| 22. |
S3450833
|
[6] |
BOLT
|
|
| 23. |
110406-00095
|
[1] |
|
|
| 24. |
S3640352
|
[4] |
|
|
| 26. |
S5010713
|
[3] |
WASHER;PLAIN
|
|
| 27. |
S0515066
|
[3] |
BOLT
|
|
| 28. |
S8470032
|
[2] |
CLAMP
|
|
| 29. |
110406-02749
|
[1] |
|
|
| 30. |
110406-02837
|
[1] |
|
|
| 4. |
301412-00004
|
[1] |
|
|
| 5. |
300609-00005
|
[1] |
|
|
| 6. |
110420-00036
|
[1] |
|
|
| 7. |
K1001029
|
[15] |
BOLT
|
|
| 8. |
K1011080
|
[1] |
BRACKET
|
|
