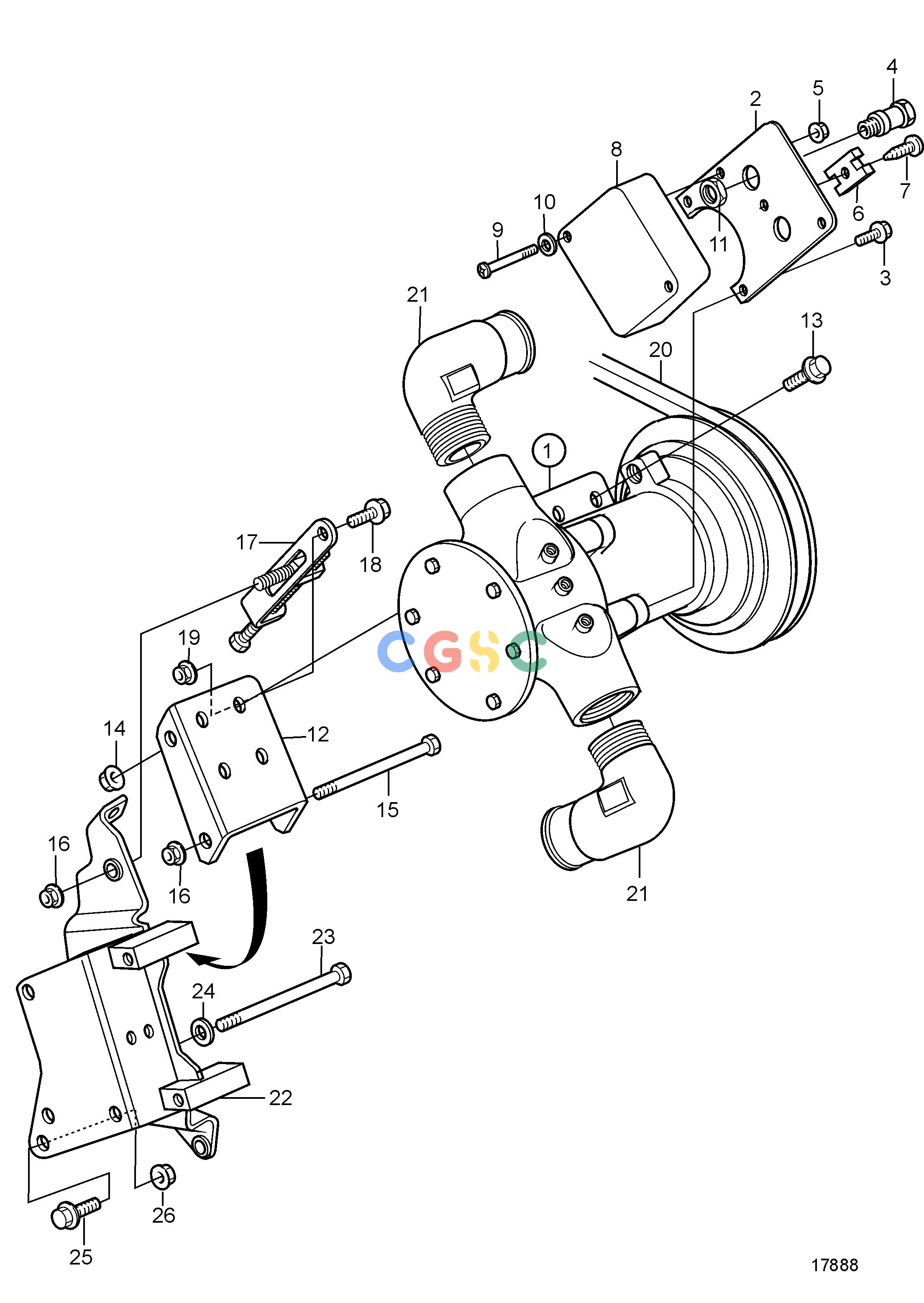

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MMiscellaneous EquipmentFlushing Pump 2''EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
578 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846105
|
[1] |
Bilge pump
|
2''
|
| 1. |
|
|
|
|
| 2. |
846233
|
[1] |
Bracket
|
|
| 3. |
955525
|
[2] |
Hexagon screw
|
|
| 4. |
822327
|
[1] |
Grommet
|
Sealing diameter 8,5mm-11,5mm.
|
| 4. |
881192
|
[1] |
Grommet
|
Sealing diameter 12,5mm-15mm.
|
| 5. |
955780
|
[2] |
Hexagon nut
|
|
| 6. |
926219
|
[1] |
Coupling piece
|
|
| 7. |
956049
|
[1] |
Cross recessed screw
|
|
| 8. |
837392
|
[1] |
Cap
|
|
| 9. |
956301
|
[2] |
Cross recessed screw
|
|
| 10. |
941905
|
[2] |
Spring washer
|
|
| 11. |
880243
|
[2] |
Nut
|
|
| 12. |
847950
|
[1] |
Bracket
|
|
| 13. |
946472
|
[4] |
Flange screw
|
|
| 14. |
971095
|
[4] |
Flange nut
|
|
| 15. |
965190
|
[1] |
Flange screw
|
|
| 16. |
971095
|
[2] |
Flange nut
|
|
| 17. |
1676586
|
[1] |
Tensioner
|
|
| 18. |
946173
|
[1] |
Flange screw
|
|
| 19. |
945408
|
[1] |
Flange nut
|
|
| 20. |
846361
|
[1] |
V-belt
|
|
| 21. |
813644
|
[2] |
Hose attachment
|
|
| 22. |
3826651
|
[1] |
Bracket
|
|
| 23. |
970985
|
[2] |
Hexagon screw
|
|
| 24. |
940280
|
[2] |
Spring washer
|
|
| 25. |
965192
|
[2] |
Flange screw
|
|
| 26. |
971096
|
[2] |
Flange nut
|
|
