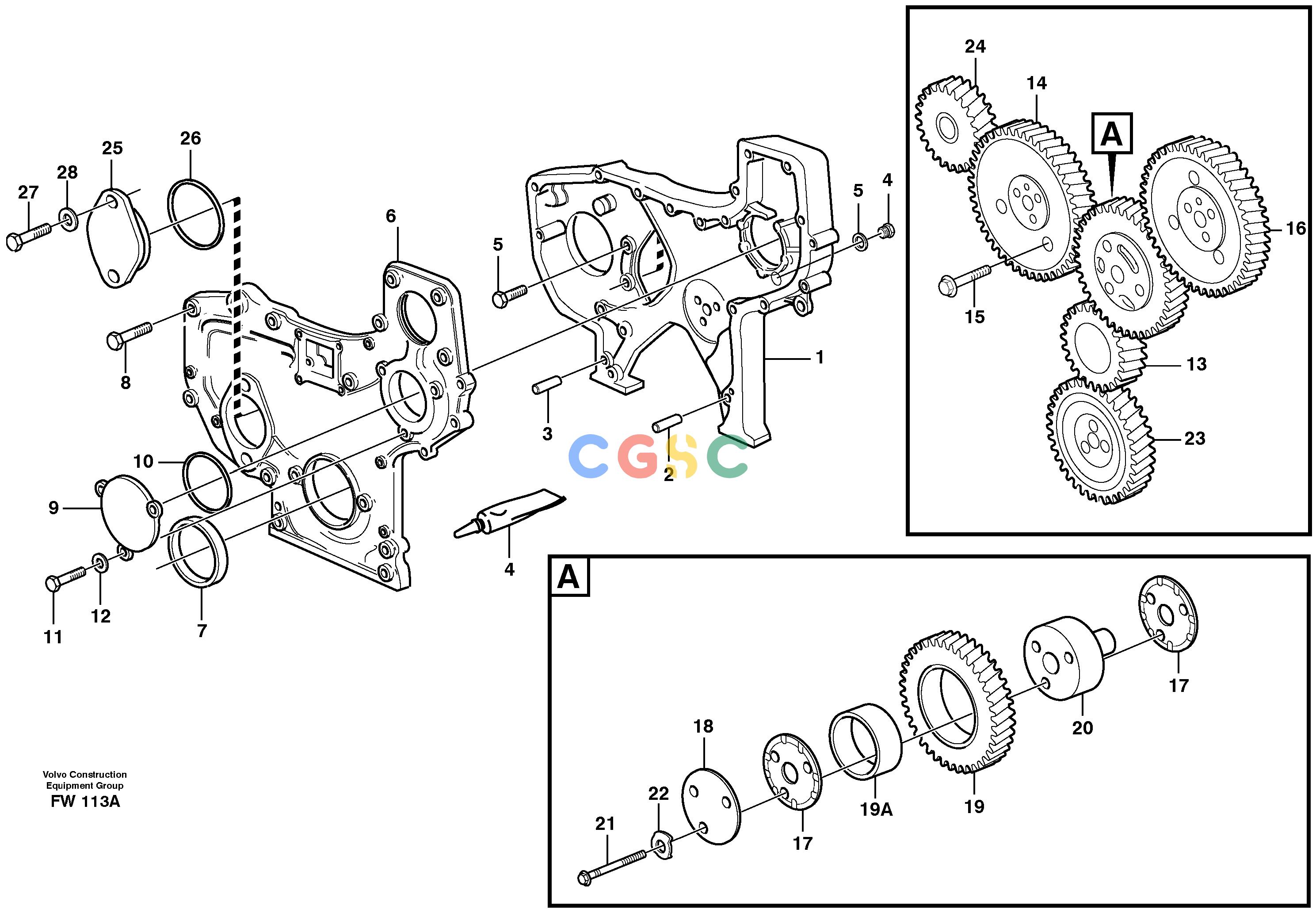

沃尔沃零件查询EC280 Timing gear casing and gearsSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE471505
|
[1] |
Timing gear casing
|
|
| 2. |
VOE13941510
|
[1] |
Pin
|
|
| 3. |
VOE13941511
|
[1] |
Pin
|
|
| 4. |
VOE1161277
|
[REQ] |
Sealant
|
20 g
|
| 5. |
VOE471534
|
[2] |
Screw
|
L = 28MM
|
| |
VOE471535
|
[2] |
Screw
|
L = 58MM
|
| |
|
|
None
|
|
| 6. |
VOE8192590
|
[1] |
Timing gear cover
|
|
| 7. |
VOE477118
|
[1] |
Sealing ring
|
|
| |
|
|
None
|
|
| 8. |
VOE13947760
|
[2] |
Screw
|
L = 40MM
|
| |
VOE13948217
|
[2] |
Screw
|
L = 45MM
|
| |
VOE13965179
|
[3] |
Screw
|
L = 50MM
|
| |
VOE13965216
|
[1] |
Screw
|
L = 55MM
|
| |
VOE13965182
|
[7] |
Screw
|
L = 80MM
|
| |
VOE13965180
|
[2] |
Screw
|
L = 60MM
|
| 9. |
VOE471559
|
[1] |
Cover
|
|
| 10. |
VOE925257
|
[1] |
O-ring
|
|
| 11. |
VOE13945444
|
[3] |
Screw
|
|
| 12. |
VOE13941907
|
[3] |
Washer
|
|
| 13. |
|
[1] |
Gear
|
Crankshaft gear
|
| 14. |
VOE478297
|
[1] |
Gear
|
|
| 15. |
VOE471555
|
[3] |
Screw
|
|
| 16. |
|
[1] |
Gear
|
|
| 17. |
VOE478951
|
[2] |
Thrust washer
|
|
| 18. |
VOE478954
|
[1] |
Bearing shield
|
|
| 19. |
VOE8192578
|
[1] |
Idler gear
|
|
| 19A. |
VOE479687
|
[1] |
Bushing
|
|
| 20. |
VOE8192636
|
[1] |
Idler gear
|
|
| 21. |
VOE8192579
|
[3] |
Screw
|
|
| 22. |
VOE942180
|
[3] |
Disc spring
|
|
| 23. |
|
[1] |
Oilpump gear
|
|
| 24. |
|
[1] |
Pump drive gear
|
|
| 25. |
VOE11030981
|
[1] |
Cover
|
|
| 26. |
VOE925094
|
[1] |
O-ring
|
|
| 27. |
VOE13965187
|
[1] |
Screw
|
M10 x 60MM
|
| |
VOE946441
|
[1] |
Flange screw
|
M10 x 20MM
|
| 28. |
VOE955895
|
[2] |
Plain washer
|
|
| 29. |
VOE13960632
|
[1] |
Plug
|
|
| 30. |
VOE13947624
|
[1] |
Plane gasket
|
|
