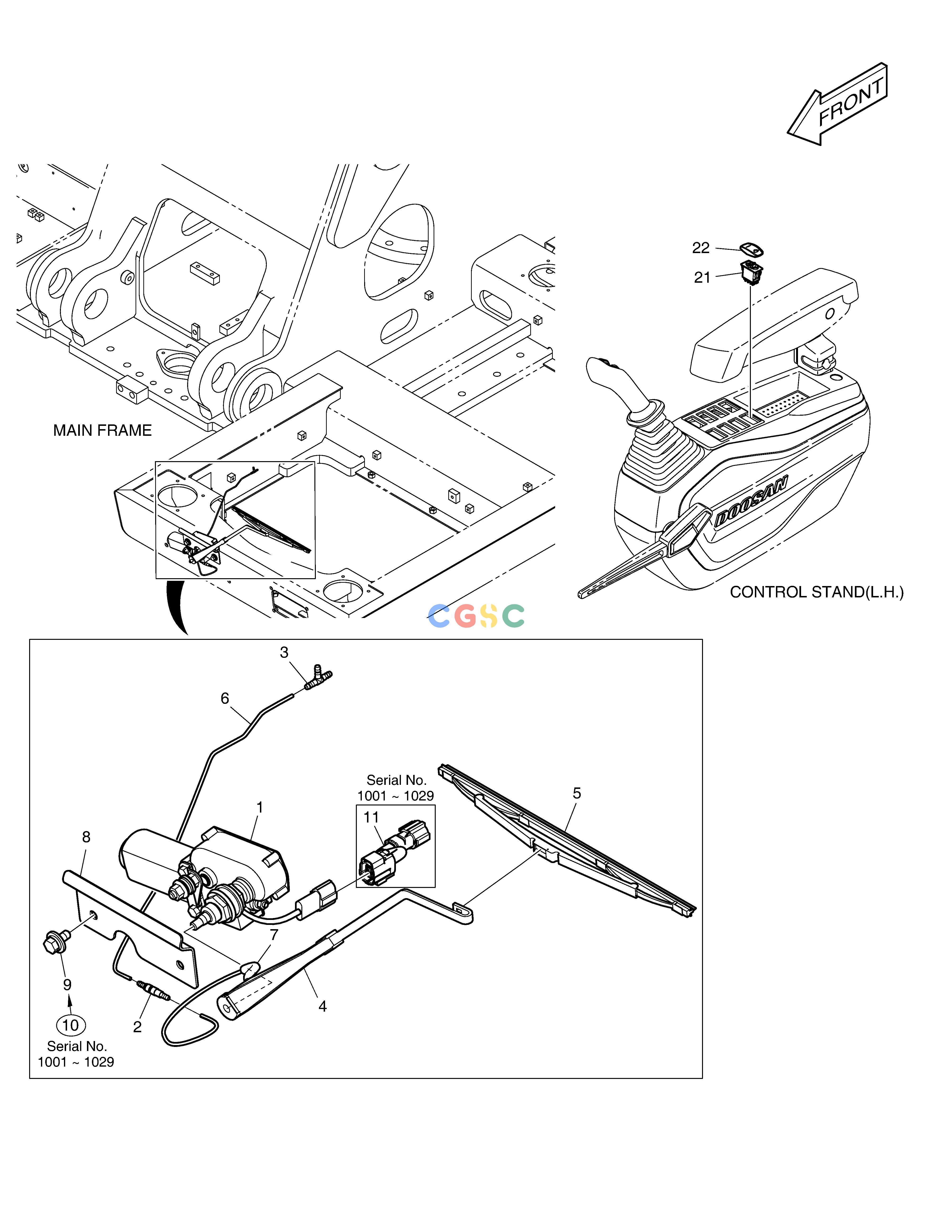

斗山零件查询LOWER WIPER DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
147 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02837
|
[-] |
|
|
| -. |
300619-01275
|
[-] |
|
|
| 1. |
538-00012
|
[1] |
MOTOR;WIPER
|
|
| 10. |
DS0025033
|
[2] |
BOLT
|
|
| 11. |
310207-01427
|
[1] |
|
|
| 2. |
426-00282
|
[1] |
VALVE;LOWER WIPER CHECK
|
|
| 21. |
549-00101
|
[1] |
SWITCH,ROCKER
|
|
| 22. |
301401-00022
|
[1] |
|
|
| 3. |
181-00804
|
[1] |
TEE
|
|
| 4. |
541-00016
|
[1] |
ARM;WIPER
|
|
| 5. |
507-00007
|
[1] |
BLADE;WIPER
|
|
| 6. |
K1002866
|
[1] |
HOSE
|
|
| 7. |
K1002867D1
|
[1] |
TUBE
|
|
| 8. |
110423-00050
|
[1] |
|
|
| 8. |
110406-03374
|
[1] |
|
|
| 9. |
DS0025033
|
[1] |
BOLT
|
|
