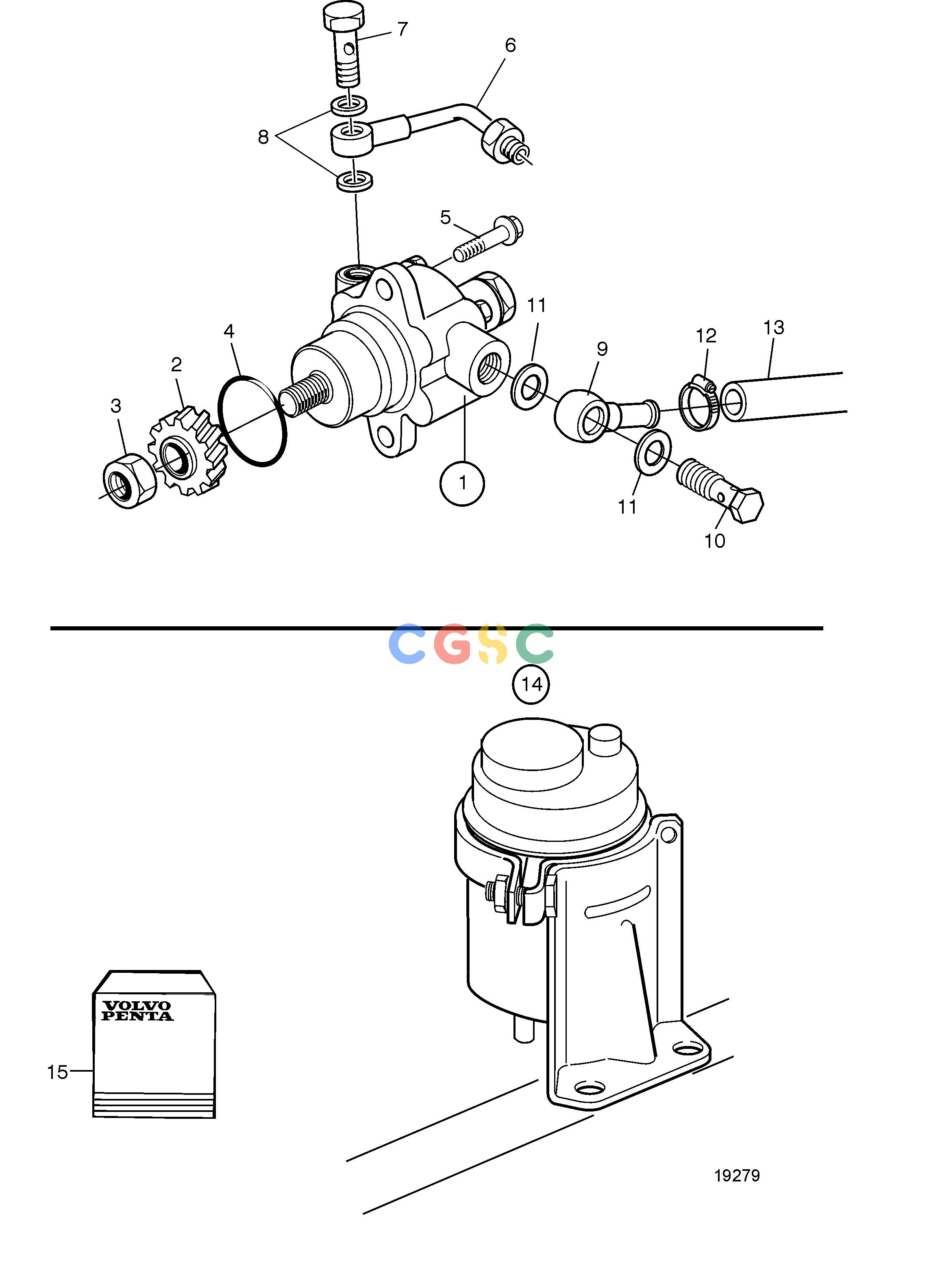

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MSteering SystemHydraulic PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
729 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3172488
|
[1] |
Oil pump
|
|
| 1. |
|
|
|
|
| 2. |
8170423
|
[1] |
Gear
|
|
| 3. |
20367040
|
[1] |
Castle nut
|
|
| 4. |
925256
|
[1] |
O-ring
|
|
| 5. |
946472
|
[2] |
Flange screw
|
|
| 6. |
3987505
|
[1] |
Servo pipe
|
|
| 7. |
190714
|
[1] |
Hollow screw
|
|
| 8. |
948884
|
[2] |
Gasket
|
|
| 9. |
1598185
|
[1] |
Banjo nipple
|
|
| 10. |
191620
|
[1] |
Hollow screw
|
|
| 11. |
977937
|
[2] |
Gasket
|
|
| 12. |
961667
|
[2] |
Hose clamp
|
|
| 13. |
8157557
|
[1] |
Hose
|
L=2000mm
|
| 14. |
872137
|
[1] |
Tank
|
(1592945)
|
| 14. |
|
|
|
|
| 15. |
276140
|
[1] |
Gasket kit, hydraulic pump
|
|
| 15. |
3090436
|
[1] |
Rotor kit
|
|
