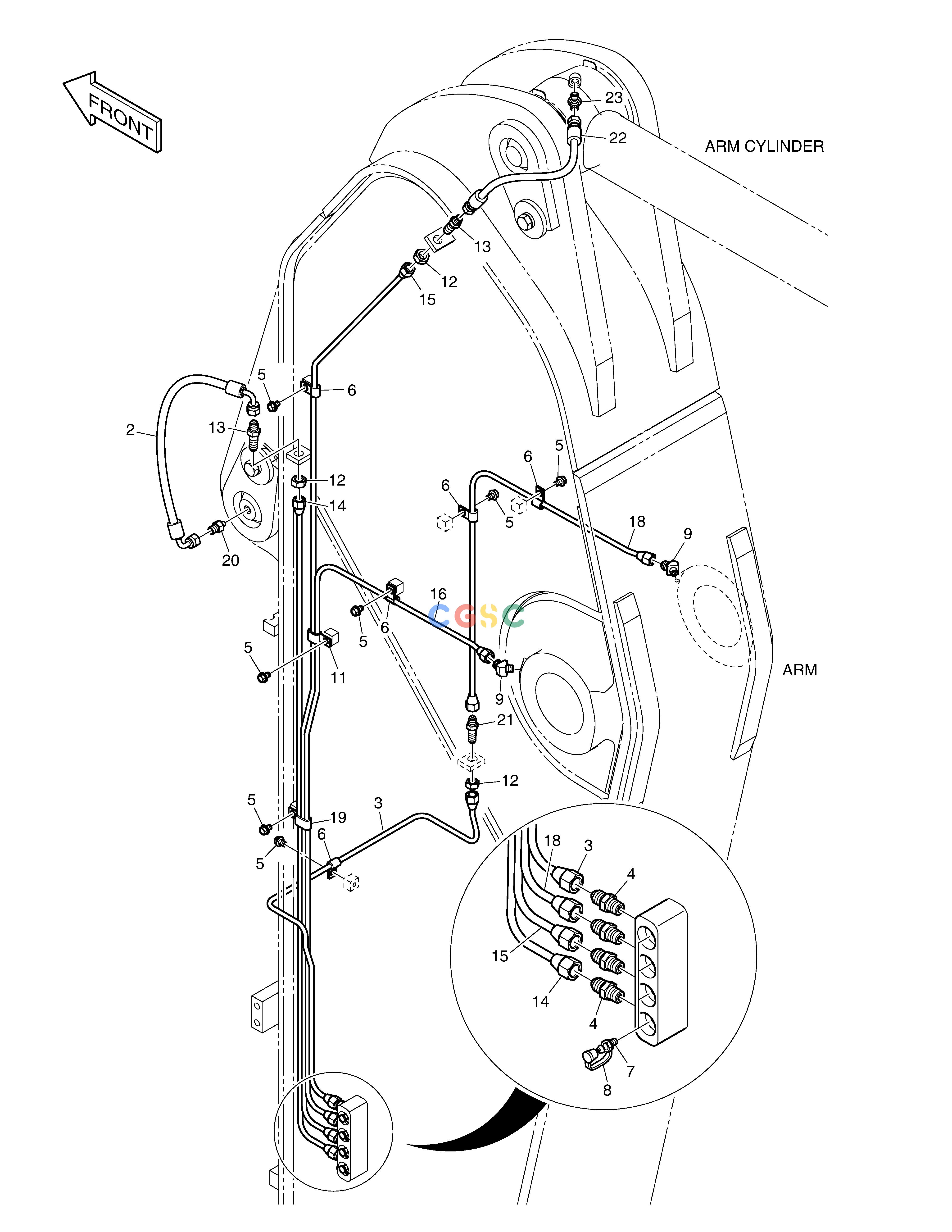

斗山零件查询LUBRICATION PIPING - ARM 2.85m DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
745 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04964
|
[-] |
|
|
| 11. |
DS2805007
|
[1] |
CLIP
|
|
| 12. |
S4032833
|
[3] |
NUT
|
|
| 13. |
2181-1923D12
|
[2] |
ADAPTER
|
|
| 14. |
K1054263
|
[1] |
PIPE
|
|
| 15. |
420205-00088
|
[1] |
|
|
| 16. |
420205-00579
|
[1] |
|
|
| 18. |
420205-00174A
|
[1] |
|
|
| 19. |
DS2805008
|
[1] |
CLIP
|
|
| 2. |
DS2059594
|
[1] |
|
|
| 20. |
2181-1110D30
|
[1] |
ADAPTER
|
|
| 21. |
DS2225009
|
[1] |
ADAPTER
|
|
| 22. |
DS2094501
|
[1] |
|
|
| 23. |
2181-1110D1
|
[1] |
ADAPTER
|
|
| 3. |
420205-00004
|
[1] |
|
|
| 4. |
2181-1184
|
[4] |
ADAPTER
|
|
| 5. |
K1001029
|
[7] |
BOLT
|
|
| 6. |
DS2802023
|
[5] |
CLIP
|
|
| 7. |
S6710041
|
[4] |
NIPPLE,GREASE
|
|
| 8. |
160-00020
|
[4] |
CAP
|
|
| 9. |
K1000057
|
[2] |
ELBOW
|
|
