卡特零件查询（725C） 416-4726: VALVE GP-AIR CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
355 次

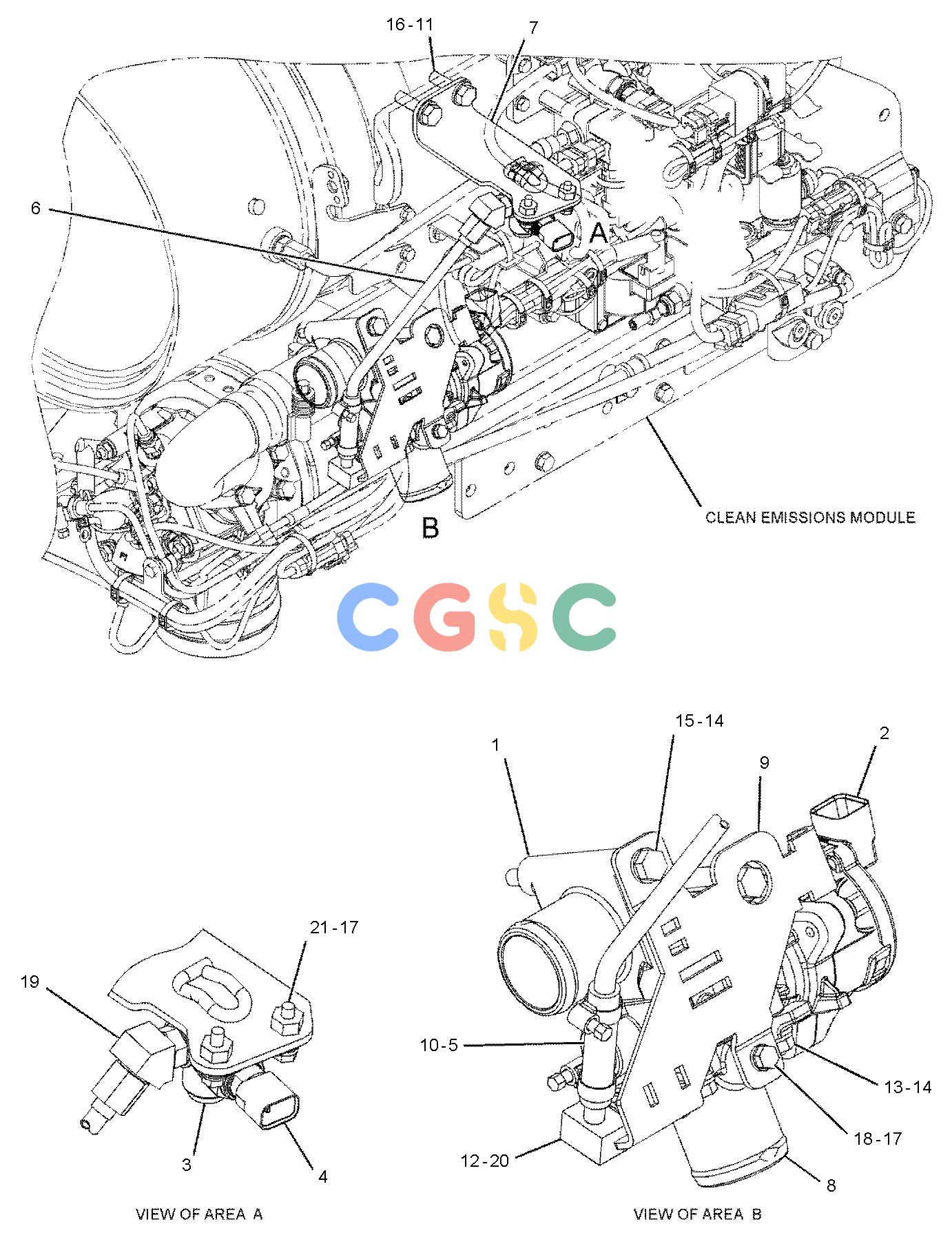

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 343-8109 | [1] | ELBOW-OUTLET | |
| 2. | 365-3006 | [1] | VALVE GP-AIR CONTROL | |
| 3. | 389-3708 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 360-3679 | [1] | PLUG-CONNECTOR(9/16-18-THD) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 4. | 415-2405Y | [1] | MANIFOLD GP-INLET | |
| 5. | 415-2415 | [1] | HOSE-AIR | |
| 6. | 417-3556 | [1] | TUBE AS | |
| 7. | 417-3558 | [1] | BRACKET AS | |
| 8. | 417-3560 | [1] | ELBOW-AIR INLET | |
| 9. | 417-3561 | [1] | BRACKET | |
| 10. | 124-6275 | [2] | CLAMP-HOSE | |
| 11. | 183-7121M | [2] | BOLT(M10X1.5X35-MM) | |
| 12. | 214-7568 | [1] | SEAL-O-RING | |
| 13. | 8T-6869M | [4] | BOLT(M8X1.25X60-MM) | |
| 14. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 15. | 344-1195 | [2] | BOLT(M8X1.25X100-MM) | |
| 16. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 9X-8256 | [3] | WASHER(6.6X12X2-MM THK) | |
| 18. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 19. | 353-5103 | [1] | ADAPTER AS | |
| | 030-7942 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 20. | 5P-4924 | [1] | ELBOW | |
| 21. | 6V-7357M | [2] | BOLT(M6X1X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
