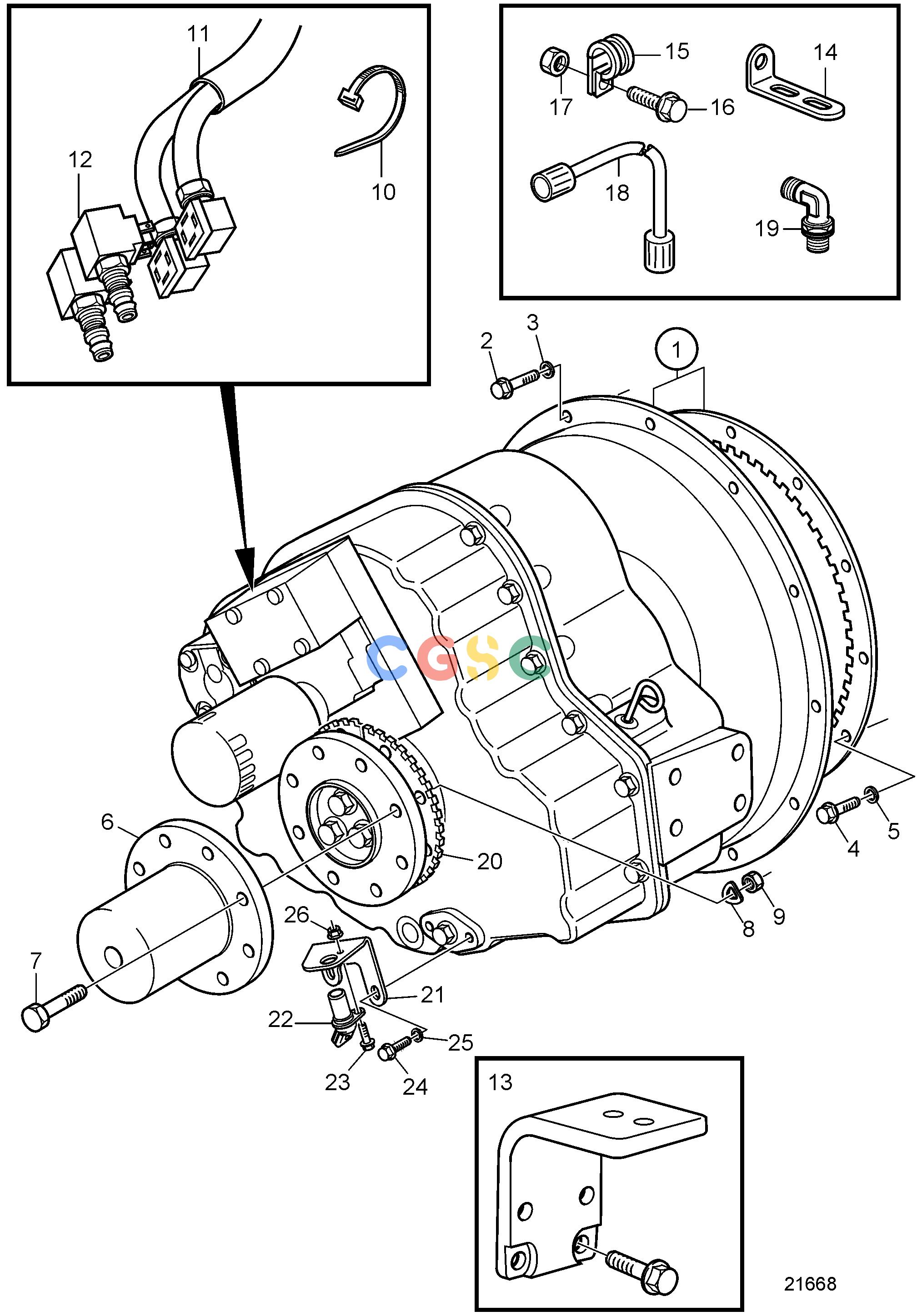

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MTransmissionsConnecting Components for ZF311A-E: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1014 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
7° angle down, Ratio 2.03:1
|
| 2. |
946817
|
[8] |
Flange screw
|
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 4. |
965193
|
[12] |
Flange screw
|
|
| 5. |
940280
|
[12] |
Spring washer
|
|
| 6. |
863994
|
[1] |
Clutch flange
|
Pre-drilled 30mm. Max shaft 80mm.
|
| 7. |
955739
|
[8] |
Hexagon screw
|
|
| 8. |
941912
|
[8] |
Spring washer
|
|
| 9. |
950378
|
[8] |
Lock nut
|
|
| 10. |
948211
|
[1] |
Cable tie
|
|
| 11. |
3808581
|
[1] |
Wiring harness
|
(874619)
|
| 12. |
3826414
|
[2] |
Solenoid
|
|
| 14. |
965553
|
[1] |
Bracket
|
|
| 15. |
945081
|
[2] |
Clamp
|
|
| 16. |
946173
|
[2] |
Flange screw
|
|
| 17. |
945408
|
[1] |
Flange nut
|
|
| 18. |
3837463
|
[1] |
Hose
|
|
| 19. |
11090362
|
[1] |
Elbow nipple
|
|
| 20. |
3841414
|
[1] |
Sprocket wheel
|
|
| 21. |
3840887
|
[1] |
Bracket
|
|
| 22. |
7740680_157
|
|
Tachometer sensor
|
|
