沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MTransmissionsConnecting Components Twin Disc MG5114DC: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
975 次

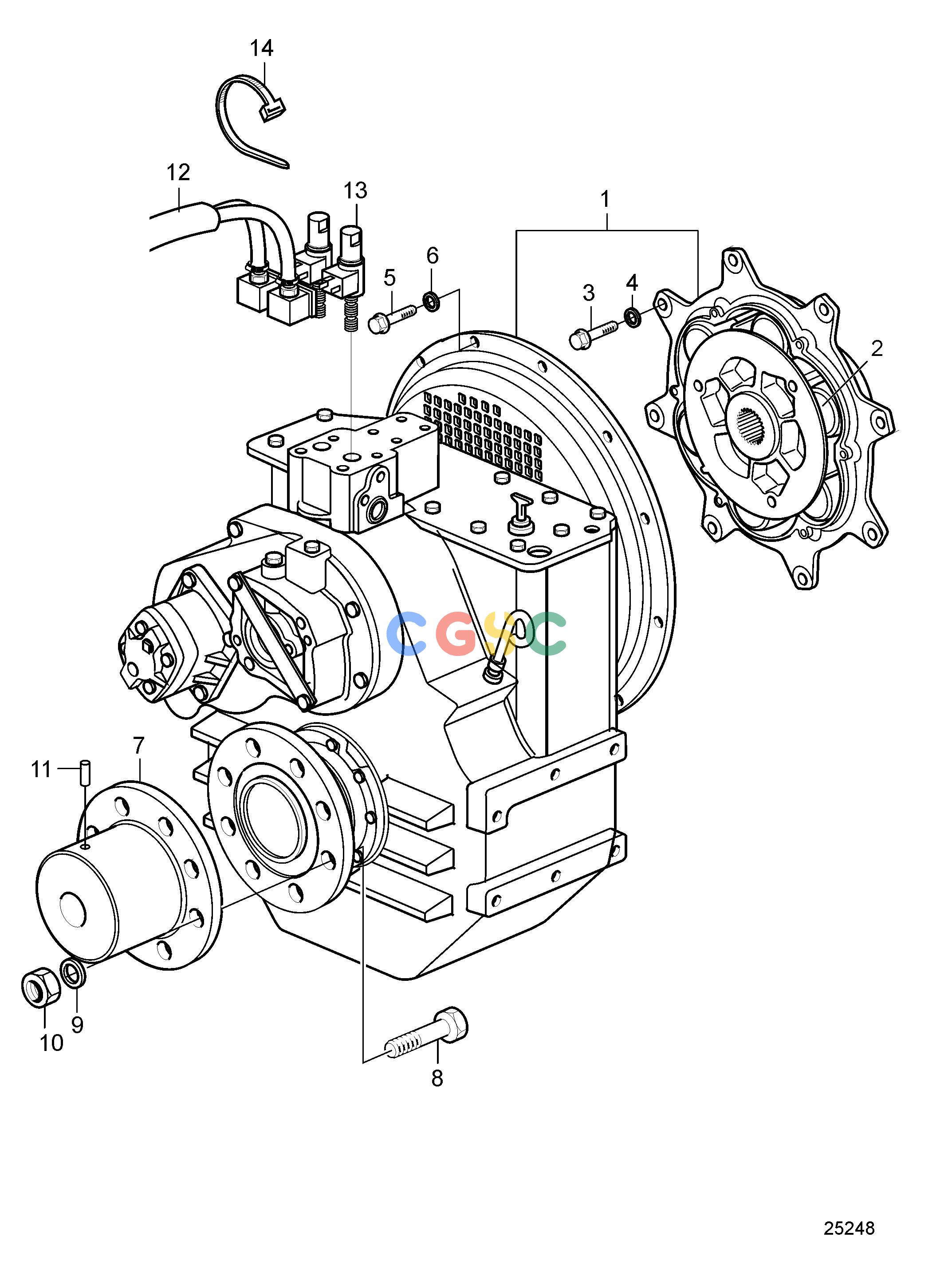

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Ratio 4.86:1
|
| 2. |
21509619
|
[1] |
Roller kit
|
Kit include 6pcs rubber rollers
|
| 3. |
965192
|
[8] |
Flange screw
|
|
| 4. |
940280
|
[8] |
Spring washer
|
|
| 5. |
946472
|
[12] |
Flange screw
|
|
| 6. |
941908
|
[12] |
Spring washer
|
|
| 7. |
837093
|
[1] |
Clutch flange
|
10,5''
|
| 8. |
955764
|
[8] |
Hexagon screw
|
|
| 9. |
941915
|
[8] |
Spring washer
|
|
| 10. |
950380
|
[8] |
Lock nut
|
|
| 11. |
|
|
|
|
| 12. |
3819944
|
[1] |
Wiring harness
|
(874619)
|
| 13. |
3587981
|
[2] |
Shift valve
|
|
| 14. |
948211
|
[1] |
Cable tie
|
|
