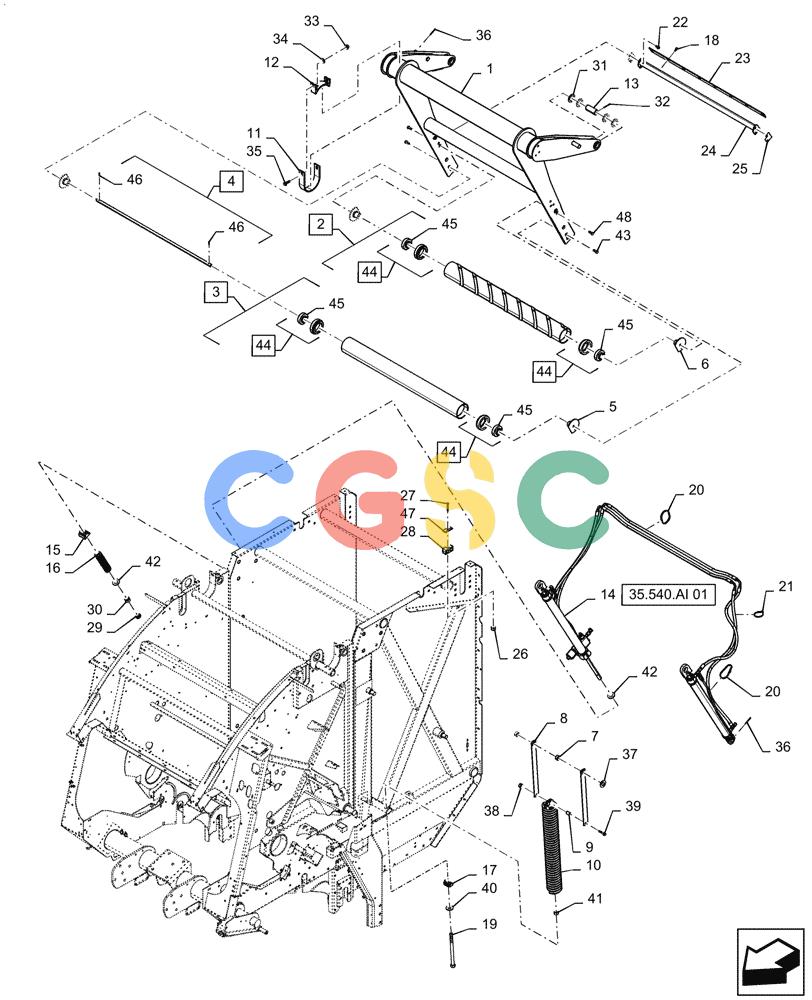

| 1. |
47689494
|
[1] |
ARM
|
NH
Take Up
|
| 2. |
47512226
|
[1] |
ROLL
|
PLO
Front Serpentine, Incl 44
|
| 3. |
84601406
|
[1] |
ROLL
|
PLO
Rear Serpentine, Incl 44
|
| 4. |
9823372
|
[1] |
SHAFT,1135mm L
|
NH
Incl 46
|
| 5. |
87654792
|
[2] |
SUPPORT
|
PLO
|
| 6. |
87646324
|
[2] |
SUPPORT
|
PLO
|
| 7. |
87655372
|
[4] |
SPACER,25.9mm ID x 31.5mm OD x 16.8mm Thk
|
PLO
|
| 8. |
86637229
|
[4] |
LINK,489mm L
|
NH
|
| 9. |
86636659
|
[2] |
SPACER,10.28mm ID x 15.85mm OD x 21.84mm L
|
NH
|
| 10. |
87654704
|
[2] |
SPRING
|
PLO
|
| 11. |
9617265
|
[2] |
BAND
|
NH
|
| 12. |
86636552
|
[2] |
BEARING CAP
|
NH
|
| 13. |
86637228
|
[2] |
PIN,38.1mm OD x 91.5mm L
|
NH
|
| 14. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
DUAL HYD. CYLINDERS, IN CAB CONTROL - VAR 726815
|
| 15. |
87654703
|
[1] |
PIVOT
|
PLO
|
| 16. |
87655350
|
[1] |
SPRING,Compression, 1.81" OD x 9.44" L
|
PLO
Superseded by part number: 9846489
|
| 17. |
84407658
|
[2] |
PIVOT
|
PLO
|
| 18. |
9804258
|
[8] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 19. |
633038
|
[2] |
THREADED ROD,3/4" - 10 x 11-1/2" L
|
NH
|
| 20. |
87034173
|
[6] |
CABLE TIE,774.7mm L
|
PA
Superseded by part number: 529070
|
| 21. |
86566989
|
[2] |
CABLE TIE,208mm L
|
ZED
|
| 22. |
86050286
|
[4] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 23. |
9845575
|
[1] |
SCRAPER BLADE
|
NH
|
| 24. |
87040645
|
[1] |
ANGLE
|
PA
|
| 25. |
47527692
|
[2] |
SHIM,54mm OD x 0.4mm Thk
|
PLO
|
| 26. |
86629542
|
[2] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 27. |
120061
|
[2] |
BOLT,Hex, M8 x 60mm L, Cl 8.8
|
NH
|
| 28. |
1589857
|
[4] |
CLAMP
|
BER
|
| 29. |
87314
|
[1] |
JAM NUT,Jam, 7/8"-9, G2
|
NH
|
| 30. |
9849647
|
[1] |
NUT,7/8"-9, G5
|
NH
|
| 31. |
28581
|
[8] |
WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk
|
NH
Superseded by part number: 86611730
|
| 32. |
87400
|
[4] |
COTTER PIN,3/16" x 2"
|
WIN
|
| 33. |
86619803
|
[4] |
FLANGE NUT
|
NH
|
| 34. |
87364
|
[4] |
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
|
NH
|
| 35. |
9804268
|
[4] |
BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd
|
NH
|
| 36. |
87399
|
[3] |
COTTER PIN,1/2 x 3 Bolt
|
GI
|
| 37. |
87367
|
[4] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
PA
|
| 38. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 39. |
9804264
|
[2] |
FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8
|
NH
Superseded by part number: 16587625
|
| 40. |
86511191
|
[2] |
WASHER,0.81" ID x 2" OD x 0.15" Thk
|
NH
|
| 41. |
280954
|
[2] |
NUT,3/4"-10, G5
|
NH
|
| 42. |
257163
|
[2] |
WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk
|
NH
|
| 43. |
86627635
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9
|
NH
|
| 44. |
47504953
|
[4] |
BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk
|
NH
Incl 45
|
| 45. |
84259867
|
[4] |
BALL BEARING,38.1mm ID x 80mm OD x 22mm W
|
PLO
|
| 46. |
130045
|
[2] |
PIN,5mm OD x 26mm L, Slotted
|
NH
|
| 47. |
87000230
|
[2] |
PLATE
|
GI
Clamp
|
| 48. |
47945176
|
[2] |
BOLT
|
PLO
|
