神钢零件查询(6D24-TEB) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-006) - ROCKER COVER & BREATHER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
846 次

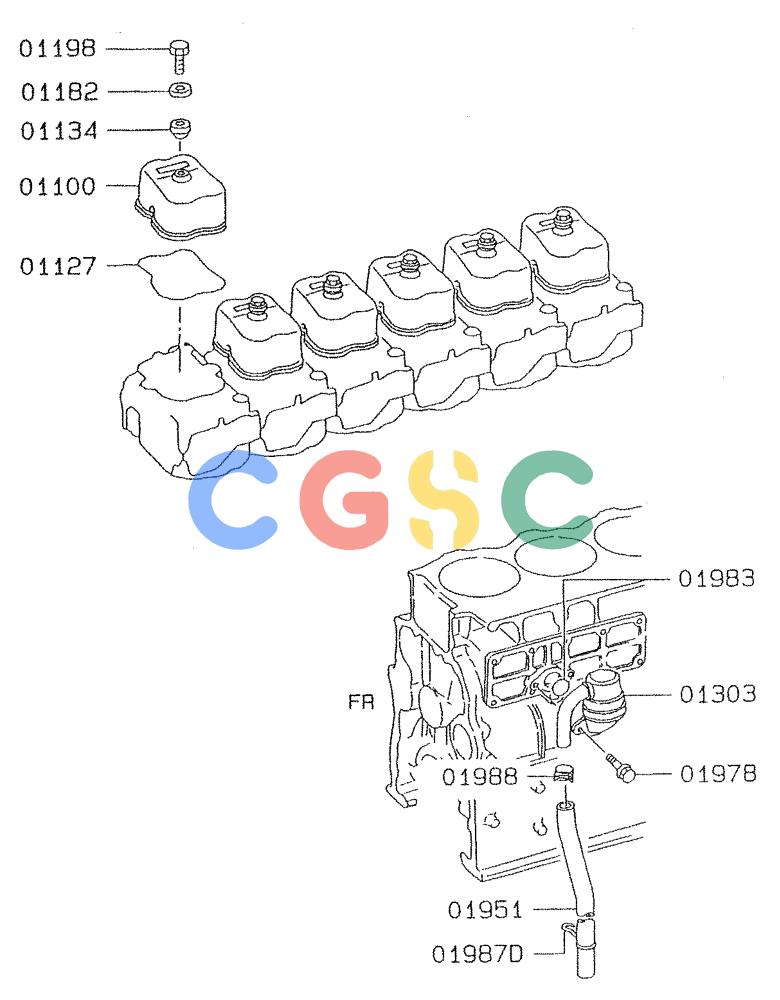

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01100. | VAME051694 | [6] | COVER | KOBCOVER, ROCKER , 9809.1- Superseded by part number: 132282A1 |
| 01127. | VAME051373 | [6] | GASKET | KOBROCKER COVER , 9809.1- Superseded by part number: 132283A1 |
| 01134. | VAMD000523 | [6] | SEAL | KOBROCKER COVER BOLT , RUBBER, 9809.1- Superseded by part number: IH1273078C1 |
| 01182. | VAME051705 | [6] | WASHER | KOBROCKER COVER , 8.5, 9809.1- Superseded by part number: 132285A1 |
| 01198. | VAMH001103 | [6] | SCREW | KOBCOVER , 8×28, 9809.1- Superseded by part number: 132286A1 |
| 01303. | VAME054385 | [1] | BREATHER | KOBENG , 9809.1- Superseded by part number: 132287A1 |
| 01951. | VAME058897 | [1] | HOSE | KOBENG, VINYL 25.4×1250, 9809.1- |
| 01978. | VAMH000706 | [2] | SCREW | KOBENG BREATHER , FLANGE, 10×16, 9809.1- Superseded by part number: 132289A1 |
| 01983. | VAMF520585 | [1] | O-RING | KOBENG BREATHER , 45, 9809.1- Superseded by part number: 132290A1 |
| 01987D. | VA3004211900 | [1] | STAY | KOBCLIP, ENG BREATHER , 9809.1- Superseded by part number: 132291A1 |
| 01988. | VAMS666012 | [1] | HOSE CLAMP | KOBENS BREATHER , D=30, 9809.1- |
