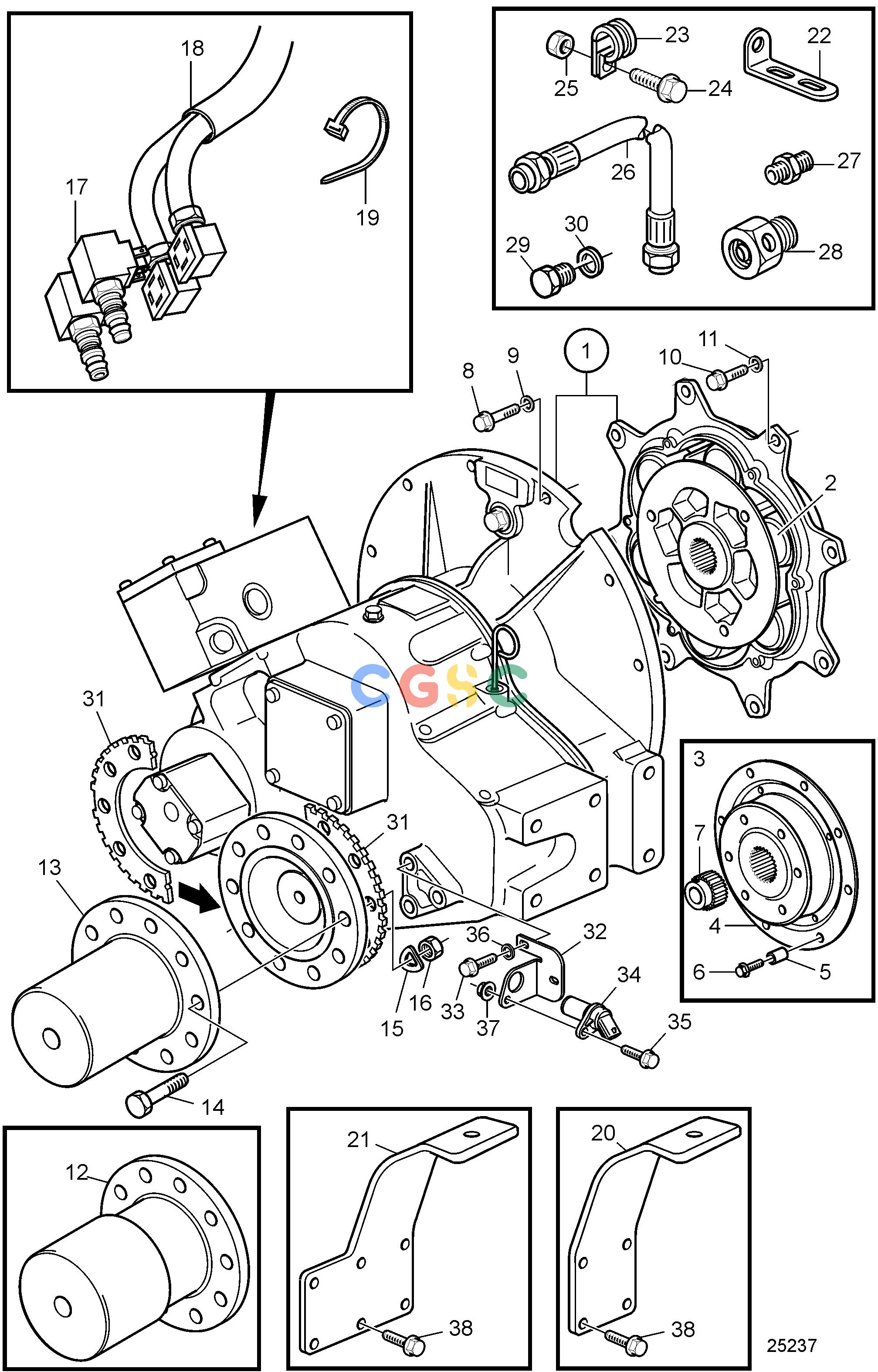

沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MTransmissionsConnecting Components ZF325A: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
393 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21464774
|
[1] |
Reversing gear
|
7° angle down, Ratio 1.48:1
|
| 1. |
21464779
|
[1] |
Reversing gear
|
7° angle down, Ratio 1.73:1
|
| 1. |
21464780
|
[1] |
Reversing gear
|
7° angle down, Ratio 2.04:1
|
| 2. |
21509619
|
[1] |
Roller kit
|
Kit include 6pcs rubber rollers
|
| 3. |
21532612
|
[1] |
Flexible coupling
|
|
| 4. |
21532585
|
[1] |
Flexible coupling
|
|
| 5. |
849513
|
[8] |
Spacer sleeve
|
|
| 6. |
965226
|
[8] |
Flange screw
|
|
| 7. |
21581531
|
[1] |
Hub
|
|
| 8. |
965185
|
[12] |
Flange screw
|
|
| 9. |
941908
|
[12] |
Spring washer
|
|
| 10. |
965194
|
[8] |
Flange screw
|
|
| 11. |
955897
|
[8] |
Washer
|
|
| 12. |
3828478
|
[1] |
Companion flange
|
Pre-drilled 30mm. Max shaft 80mm. 12 holes, Earlier prod.
|
| 13. |
864087
|
[1] |
Clutch flange
|
10 holes, Later prod
|
| 14. |
955739
|
[12] |
Hexagon screw
|
|
| 15. |
941912
|
[12] |
Spring washer
|
|
| 16. |
950378
|
[12] |
Lock nut
|
|
| 17. |
3831157
|
[2] |
Solenoid
|
24V
|
| 18. |
3808581
|
[1] |
Wiring harness
|
(874619)
|
| 19. |
948211
|
[1] |
Cable tie
|
|
| 20. |
7740680_023
|
|
Engine suspension
|
|
| 21. |
7740680_023
|
|
Engine suspension
|
|
| 22. |
965553
|
[1] |
Bracket
|
|
| 23. |
945081
|
[2] |
Clamp
|
|
| 24. |
946173
|
[2] |
Flange screw
|
|
| 25. |
945408
|
[1] |
Flange nut
|
|
| 26. |
3837463
|
[1] |
Hose
|
|
| 27. |
983779
|
[1] |
Nipple
|
|
| 28. |
3837435
|
[1] |
Elbow nipple
|
|
| 29. |
479976
|
[1] |
Plug
|
|
| 30. |
18677
|
[1] |
Gasket
|
|
| 31. |
3841413
|
[2] |
Sprocket wheel
|
|
| 32. |
3841424
|
[1] |
Bracket
|
|
| 33. |
967949
|
[2] |
Flange screw
|
|
| 34. |
20513343
|
[1] |
Sensor
|
|
| 35. |
946544
|
[1] |
Flange screw
|
|
| 36. |
949607
|
[2] |
Spring washer
|
|
| 37. |
949278
|
[1] |
Flange lock nut
|
|
| 38. |
975126
|
[8] |
Flange screw
|
|
