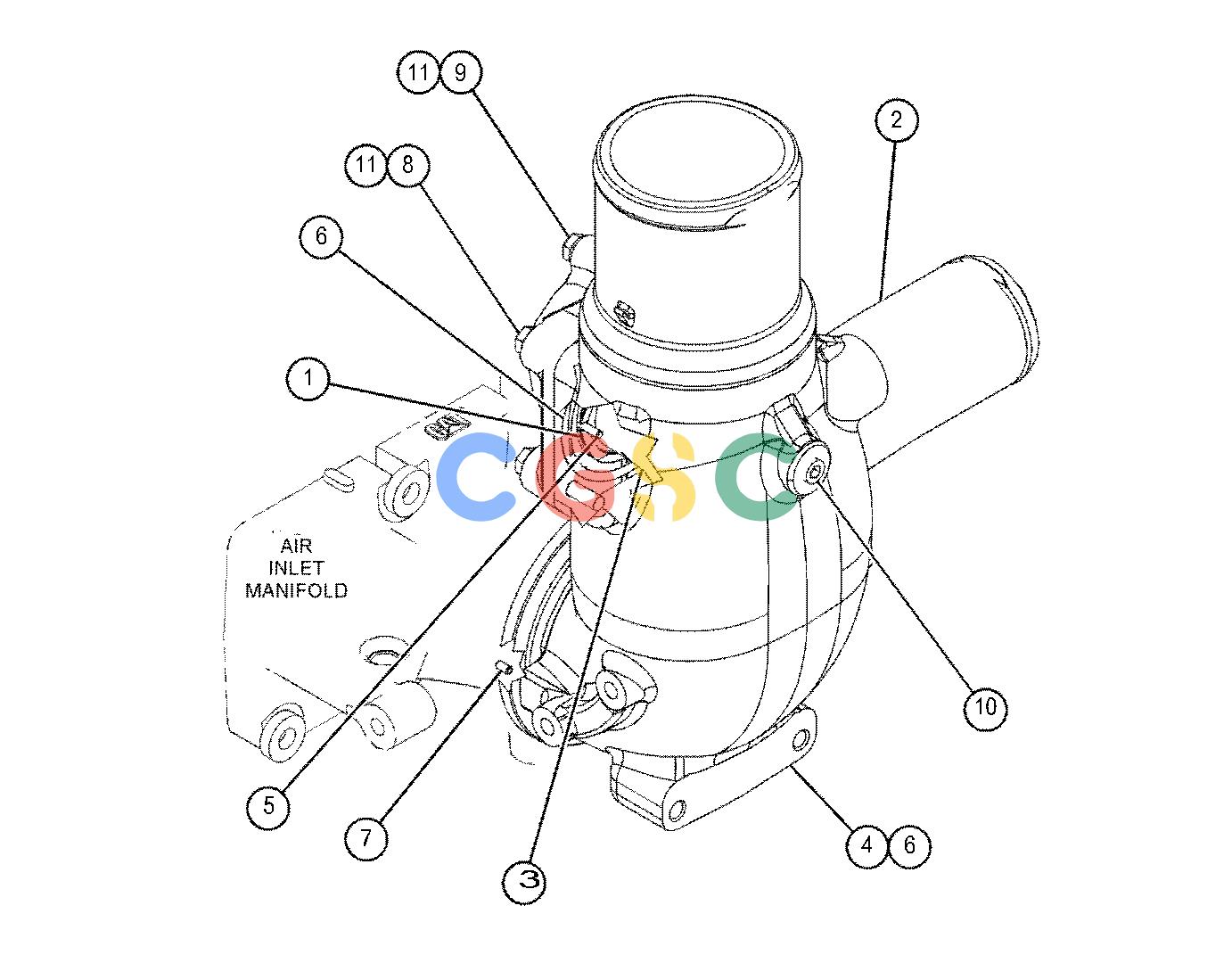

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 340-7220 | [1] | RING | |
| 2. | 340-7231 | [1] | TUBE | |
| 3. | 347-9478 | [1] | TUBE | |
| 4. | 467-1937 | [1] | MANIFOLD | |
| 5. | 1W-6448 | [1] | DOWEL | |
| 6. | 5P-4892 | [1] | SEAL-O-RING | |
| 7. | 6D-9953 | [1] | PIN-SPRING | |
| 8. | 6V-2315M | [2] | BOLT(M6X1X35-MM) | |
| 9. | 8T-5066M | [2] | BOLT(M6X1X60-MM) | |
| 10. | 8T-6757 | [1] | PLUG-PIPE | |
| 11. | 9X-8267 | [4] | WASHER(6.6X12X2-MM THK) | |
| M | METRIC PART | |||
