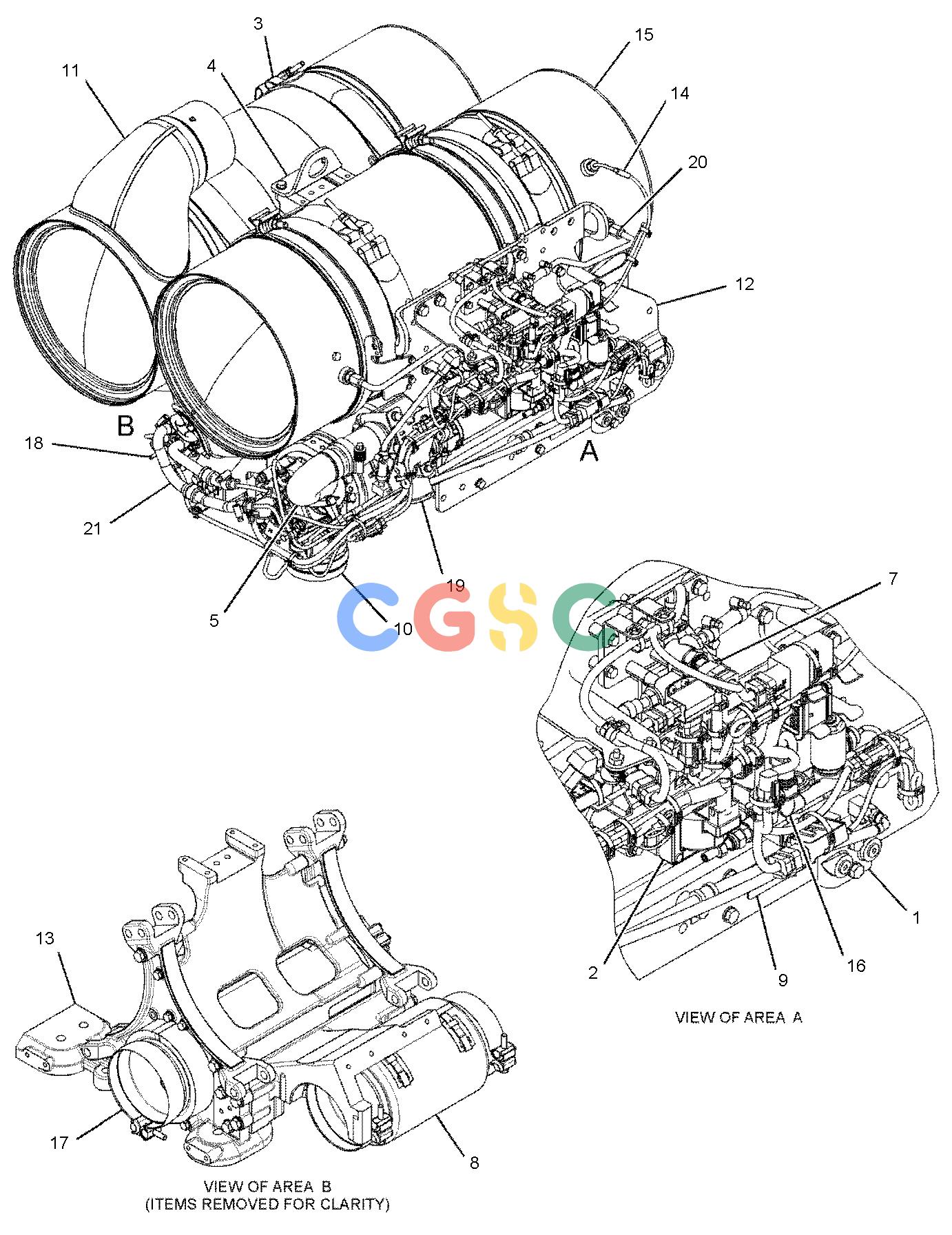

卡特零件查询（725C） 394-5353: MODULE AR-CLEAN EMISSIONS
广数供应链运营团队, 14 02月, 2025，浏览：
1012 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 336-5043Y | [1] | MANIFOLD GP-EXHAUST COMBUSTION(AFTERTREATMENT REGEN DEVICE) | |
| 2. | 343-3872Y | [1] | COIL GP-IGNITION(AFTERTREATMENT REGEN DEVICE) | |
| 3. | 345-1799Y | [1] | STRAP GP-MOUNTING(DPF, MUFFLER) | |
| 4. | 345-9175Y | [1] | LIFTING GP-CEM | |
| 5. | 346-3565Y | [1] | LINES GP-AIR(ARD COMBUSTION) | |
| 7. | 347-1934Y | [1] | RELAY GP(ARD NOZZLE HEATER) | |
| 8. | 347-2250Y | [1] | LINES GP-EXHAUST(DPF INLET) | |
| 9. | 347-3259 | [1] | PLATE & FILM GP(CLEAN EMISSIONS MODULE) | |
| 10. | 364-9003Y | [1] | COMBUSTION & MTG GP-EXHAUST | |
| 11. | | [1] | CATALYST AS |
| 12. | 381-7670Y | [1] | SUPPORT & MOUNTING GP(CLEAN EMISSIONS MODULE) | |
| 13. | 381-8033Y | [1] | SUPPORT & MOUNTING GP(CLEAN EMISSIONS MODULE) | |
| 14. | 384-8161Y | [1] | WIRING GP-CEM | |
| 15. | 390-0629Y | [1] | FILTER GP-DIESEL PARTICULATE | |
| 16. | 391-8127Y | [1] | MANIFOLD GP-FUEL(AFTERTREATMENT REGEN DEVICE) | |
| 17. | 399-0110Y | [1] | LINES GP-EXHAUST | |
| 18. | 399-6078Y | [1] | INJECTOR & MTG GP-DEF | |
| 19. | 416-4726Y | [1] | VALVE GP-AIR CONTROL | |
| 20. | 416-4730Y | [1] | SENSOR & MTG GP-PRESSURE(EXHAUST) | |
| 21. | 418-4030Y | [1] | LINES GP-EXHAUST COMBUSTION | |
| | Y | | SEPARATE ILLUSTRATION |
