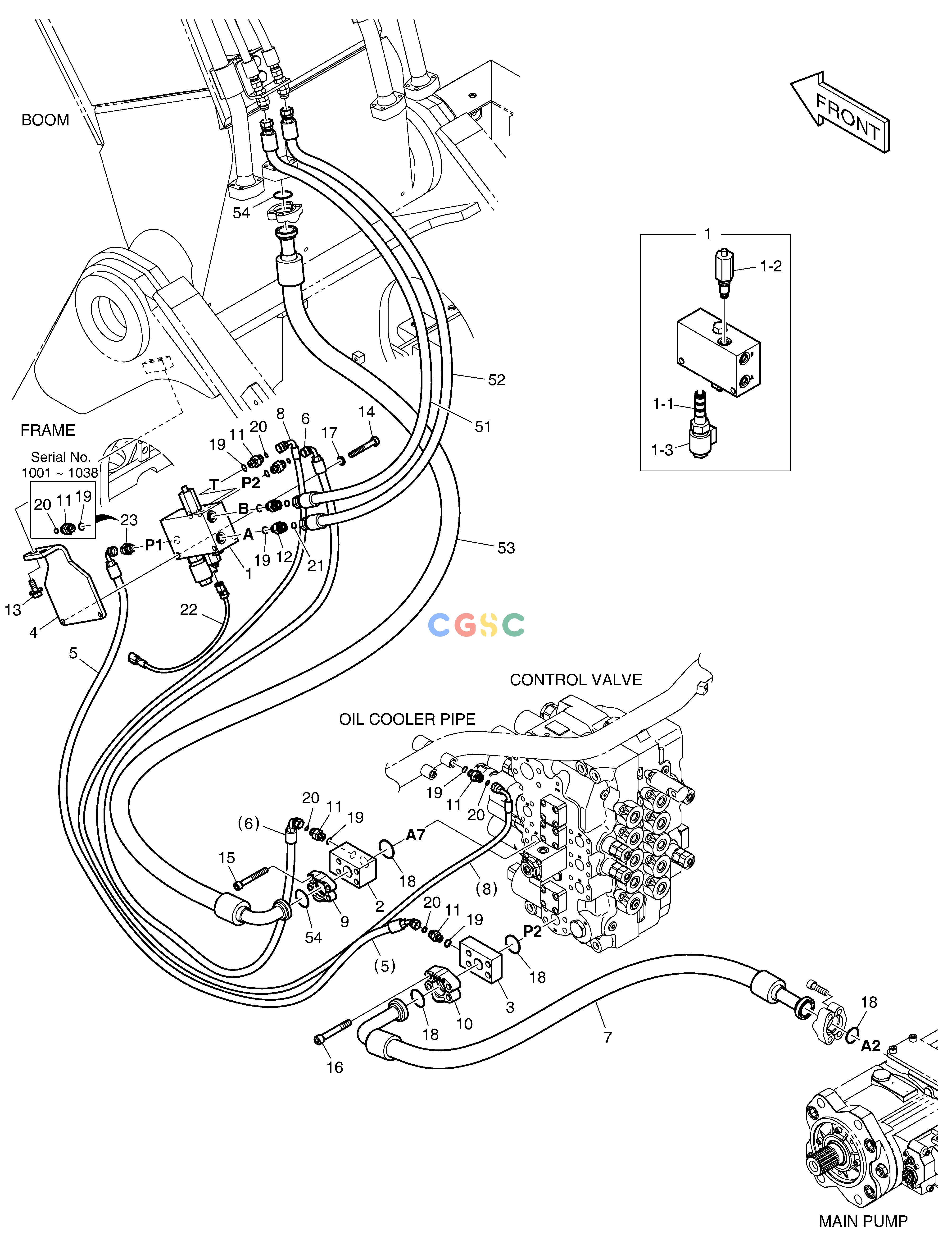

斗山零件查询MAIN PIPING - QUICK FIT DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
920 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08531
|
[-] |
|
|
| 1. |
410111-00142
|
[1] |
|
|
| 1-1. |
410135-00248
|
[1] |
|
|
| 1-2. |
410126-00038
|
[1] |
|
|
| 1-3. |
300715-00039
|
[1] |
|
|
| 10. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 11. |
2181-4133D1
|
[5] |
ADAPTER
|
|
| 11. |
2181-4133D1
|
[6] |
ADAPTER
|
|
| 12. |
2181-4133D40
|
[2] |
ADAPTER
|
|
| 13. |
DS0025016
|
[2] |
BOLT
|
|
| 14. |
S0558966
|
[2] |
BOLT
|
|
| 15. |
S2213266
|
[4] |
BOLT;SOCKET M10X1.5X80
|
|
| 16. |
S2216066
|
[4] |
BOLT;SOCKET
|
|
| 17. |
S5102603
|
[2] |
. WASHER
|
|
| 18. |
2180-1026D19
|
[4] |
O-RING
|
|
| 19. |
S8000111
|
[7] |
O-RING
|
|
| 19. |
S8000111
|
[8] |
O-RING
|
|
| 2. |
100201-00019
|
[1] |
|
|
| 20. |
S8030041
|
[5] |
O-RING
|
|
| 20. |
S8030041
|
[6] |
O-RING
|
|
| 21. |
S8030061
|
[2] |
O-RING
|
|
| 22. |
310207-00863A
|
[1] |
|
|
| 23. |
430201-01290
|
[1] |
ADAPTER,FILTER
|
|
| 3. |
100201-00067B
|
[1] |
|
|
| 4. |
110425-00087C
|
[1] |
|
|
| 5. |
DS2021699
|
[1] |
|
|
| 51. |
DS20111195
|
[1] |
|
|
| 52. |
DS20111345
|
[1] |
|
|
| 53. |
DS20401332
|
[1] |
|
|
| 54. |
2180-1026D19
|
[2] |
O-RING
|
|
| 6. |
DS2023838
|
[1] |
|
|
| 7. |
DS20401336
|
[1] |
|
|
| 8. |
DS2123167
|
[1] |
|
|
| 9. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
