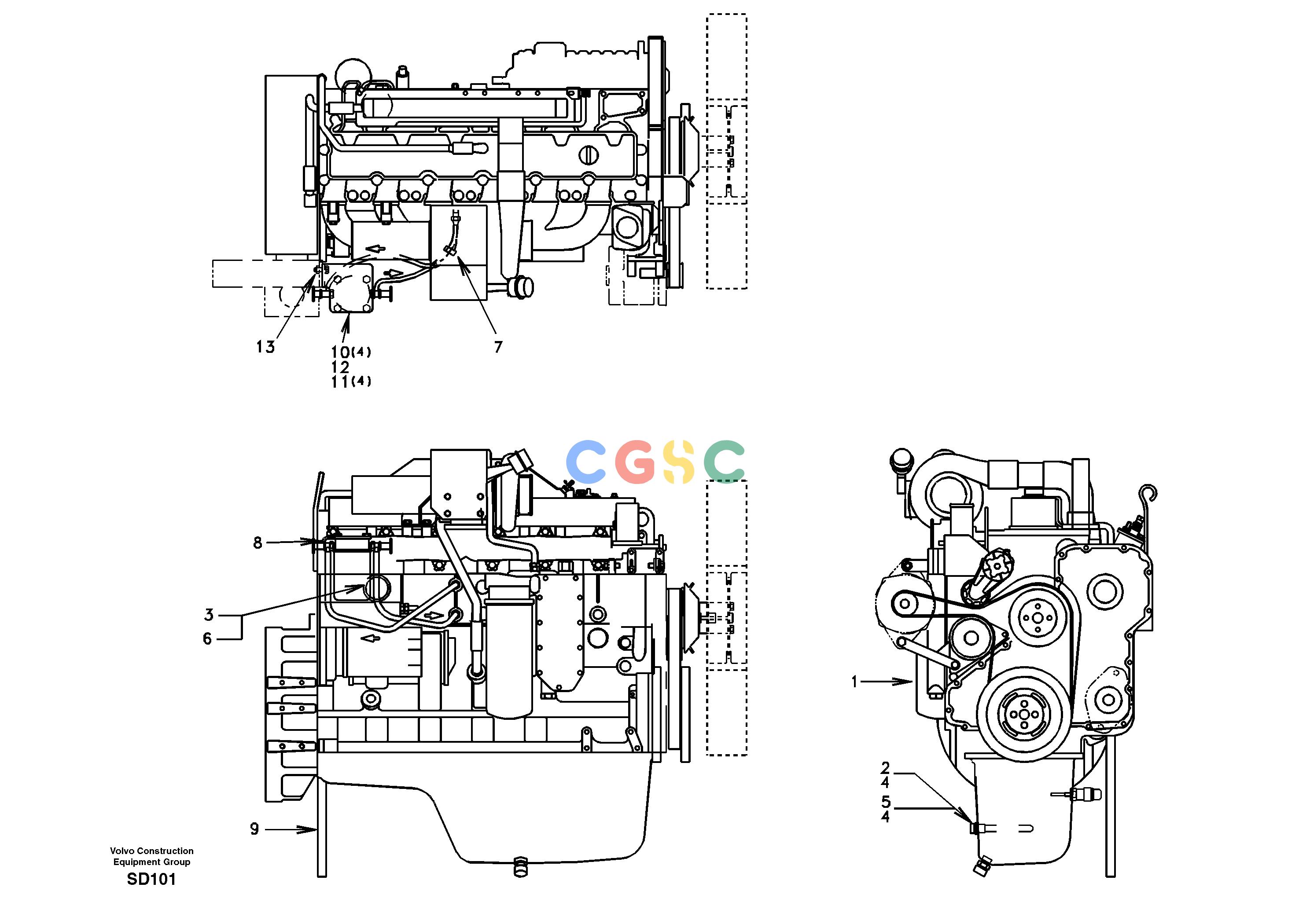

沃尔沃零件查询EC290 EngineNoneDG04B001 TROPIC-DG04B002 STDNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
500 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1111-00704
|
[1] |
Engine
|
TROPICAL
|
| |
SA1111-00143
|
|
Engine
|
STANDARD
|
| 2. |
SA2011-00450
|
|
Heater
|
240V
|
| 3. |
SA2011-00510
|
|
Heater
|
240V
|
| 4. |
VOE13947627
|
|
Plane gasket
|
|
| 5. |
SA2011-00460
|
|
Heater
|
120V
|
| 6. |
SA2011-00520
|
|
Heater
|
120V
|
| 7. |
SA9314-02100
|
[2] |
Cable tie
|
|
| 8. |
SA9312-10175
|
[1] |
Hose clamp
|
|
| 9. |
SA9952-26020
|
[1] |
Hose
|
|
| 10. |
SA1111-00171
|
[1] |
Bracket
|
SER NO 3001-3337
|
| |
SA14507205
|
[1] |
Bracket
|
SER NO 3338-
|
| 11. |
SA9213-10000
|
[6] |
Spring washer
|
SER NO 3001-3236
|
| |
SA9213-10000
|
[2] |
Spring washer
|
SER NO 3237-
|
| 12. |
SA9081-11607
|
[4] |
Hexagon screw
|
SER NO 3001-3236
|
| 13. |
VOE983252
|
[1] |
Hexagon screw
|
|
