沃尔沃零件查询D12D-A MH; D12D-B MH; D12D-C MH; D12D-E MH; D12D-G MH; D12C-A MP; D12D-A MP; D12D-B MP; D12D-C MP; D12D-D MP; D12D-E MP; D12D-F MP; D12D-G MTransmissionsConnecting Components ZF350IVEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
166 次

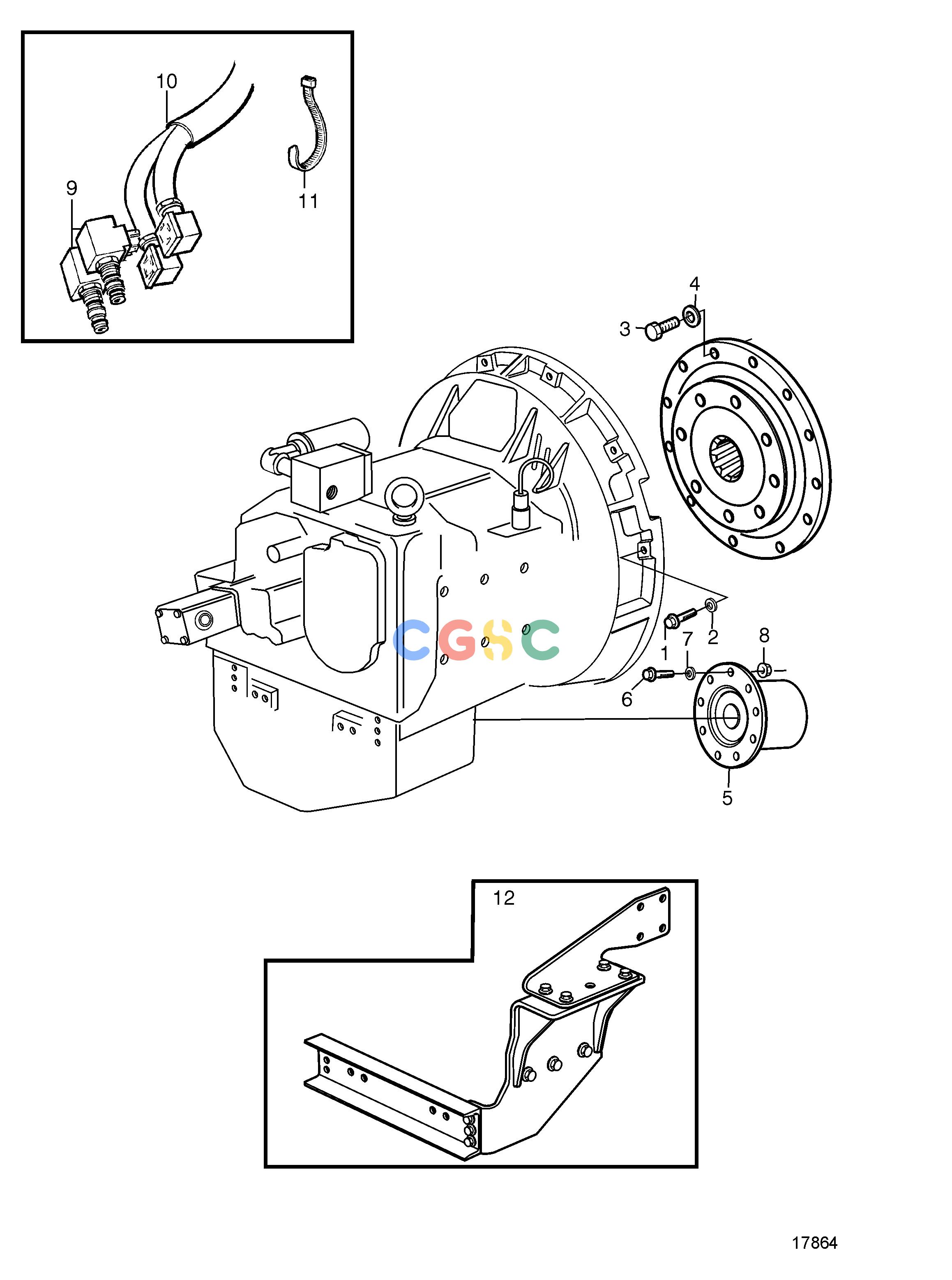

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
965185
|
[12] |
Flange screw
|
|
| 2. |
941908
|
[12] |
Spring washer
|
|
| 3. |
965194
|
[8] |
Flange screw
|
|
| 4. |
940280
|
[8] |
Spring washer
|
|
| 5. |
864087
|
[1] |
Clutch flange
|
Pre-drilled 30mm. Max shaft 80mm
|
| 6. |
980253
|
[10] |
Hexagon screw
|
|
| 7. |
941913
|
[10] |
Spring washer
|
|
| 8. |
943674
|
[10] |
Lock nut
|
|
| 9. |
3831157
|
[2] |
Solenoid
|
24V
|
| 10. |
3808581
|
[1] |
Wiring harness
|
(874619)
|
| 11. |
948211
|
[1] |
Cable tie
|
|
| 12. |
7740680_023
|
|
Engine suspension
|
|
