沃尔沃零件查询EC290 Cylinder blockNoneDG04B001 TROPIC-DG04B002 STDNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
400 次

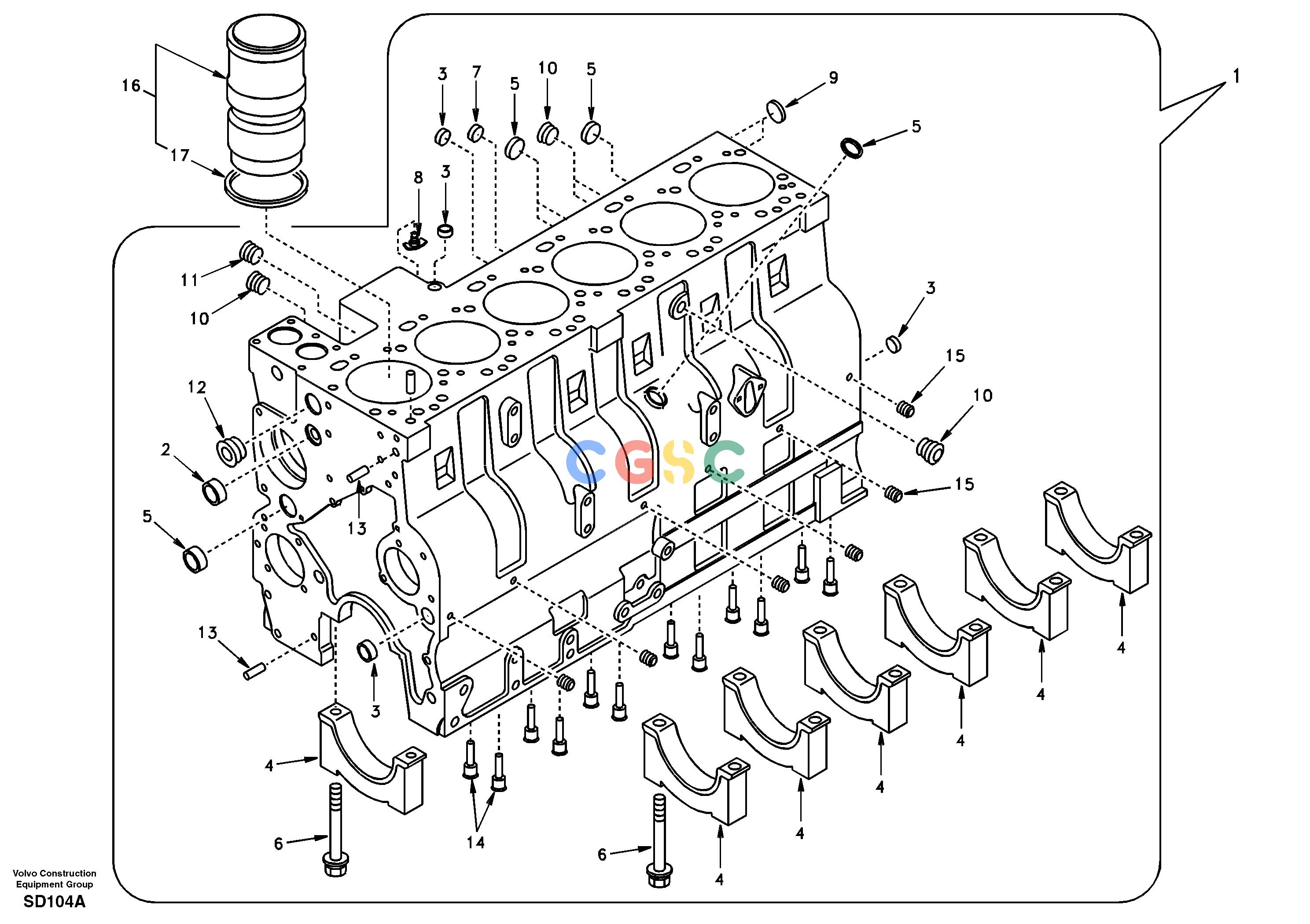

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3934902
|
[1] |
Block
|
SS 3934906
|
| 2. |
SA143066
|
[1] |
Plug
|
|
| 3. |
SA3004258
|
[4] |
Plastic plug
|
|
| 4. |
SA3917313
|
[7] |
Cap
|
|
| 5. |
SA3905401
|
[4] |
Plug
|
|
| 6. |
SA3916369
|
[14] |
Screw
|
|
| 7. |
SA3812090
|
[1] |
Plug
|
|
| 8. |
SAS-923-E
|
[1] |
Shut-off Cock
|
SS S923E
|
| 9. |
SA3920706
|
[2] |
Expansion plug
|
|
| 10. |
SA3008468
|
[4] |
Tube plug
|
|
| 11. |
SA3008469
|
[1] |
Plug
|
|
| 12. |
SA3008470
|
[1] |
Plug
|
|
| 13. |
SA3900257
|
[2] |
Locating pin
|
|
| 14. |
SA3928031
|
[12] |
Nozzle
|
|
| 15. |
SA3906619
|
[6] |
Plug
|
|
| 16. |
SA3944344
|
[6] |
Liner
|
SS 3800328
|
| 17. |
SA3907177
|
[1] |
Seal
|
|
