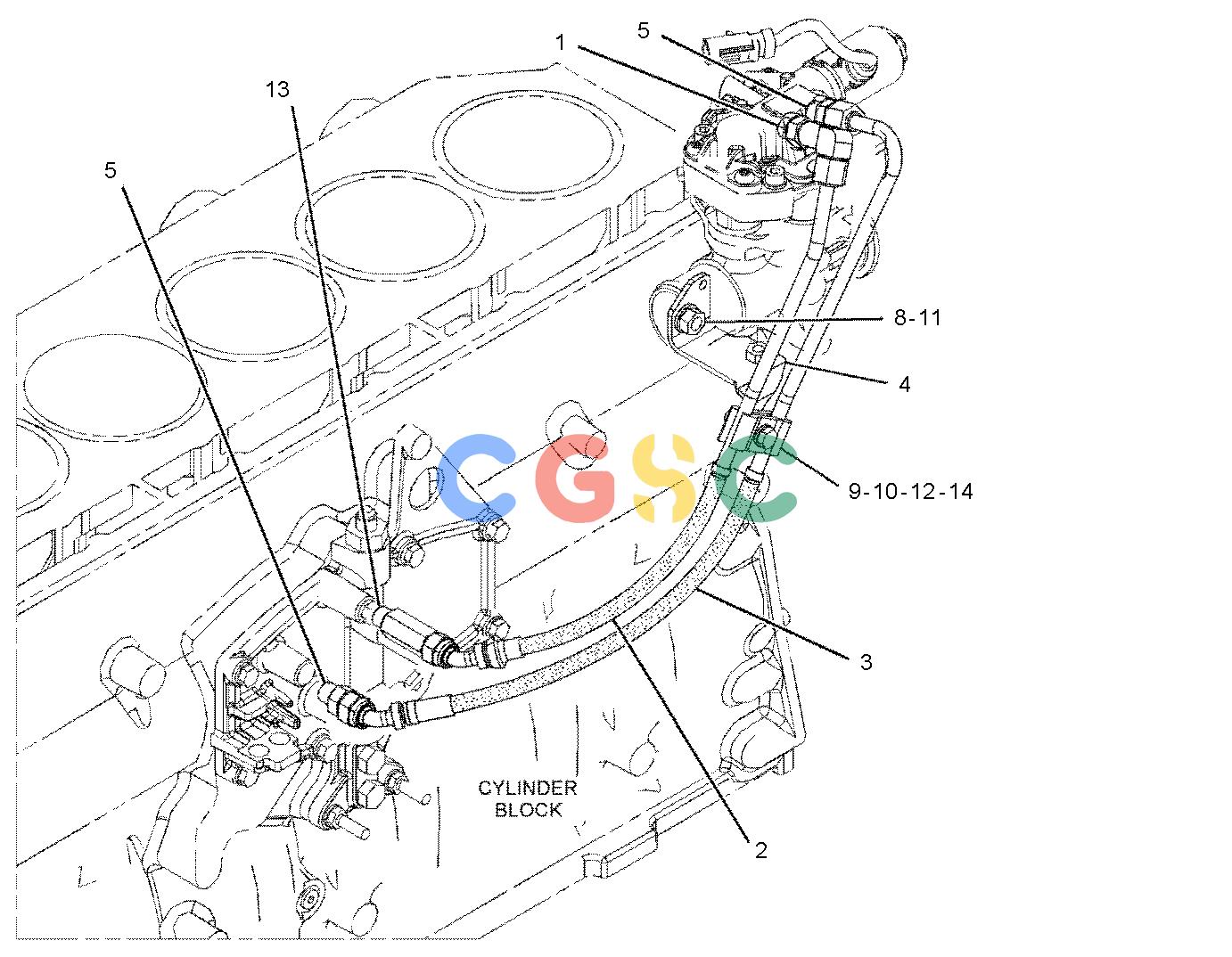

卡特零件查询（725C） 357-6365: LINES GP-ENGINE OIL
广数供应链运营团队, 14 02月, 2025，浏览：
675 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 341-0102 | [1] | ELBOW AS | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| | 341-0101 | [1] | ELBOW | |
| 2. | 392-4788 | [1] | HOSE AS | |
| 3. | 392-4796 | [1] | HOSE AS | |
| 4. | 358-6574 | [1] | BRACKET AS | |
| 5. | 183-3399 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8636 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 8. | 2Y-5829M | [1] | NUT(M10X1.5-THD) | |
| 9. | 5M-5687 | [2] | CLIP | |
| 10. | 6V-5218M | [1] | BOLT(M8X1.25X35-MM) | |
| 11. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 12. | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 13. | 321-8610 | [1] | CONNECTOR AS | |
| | 9X-2297 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 14. | 5J-4715 | [1] | WASHER(10.3X20.6X4.2-MM THK) | |
| | M | | METRIC PART |
