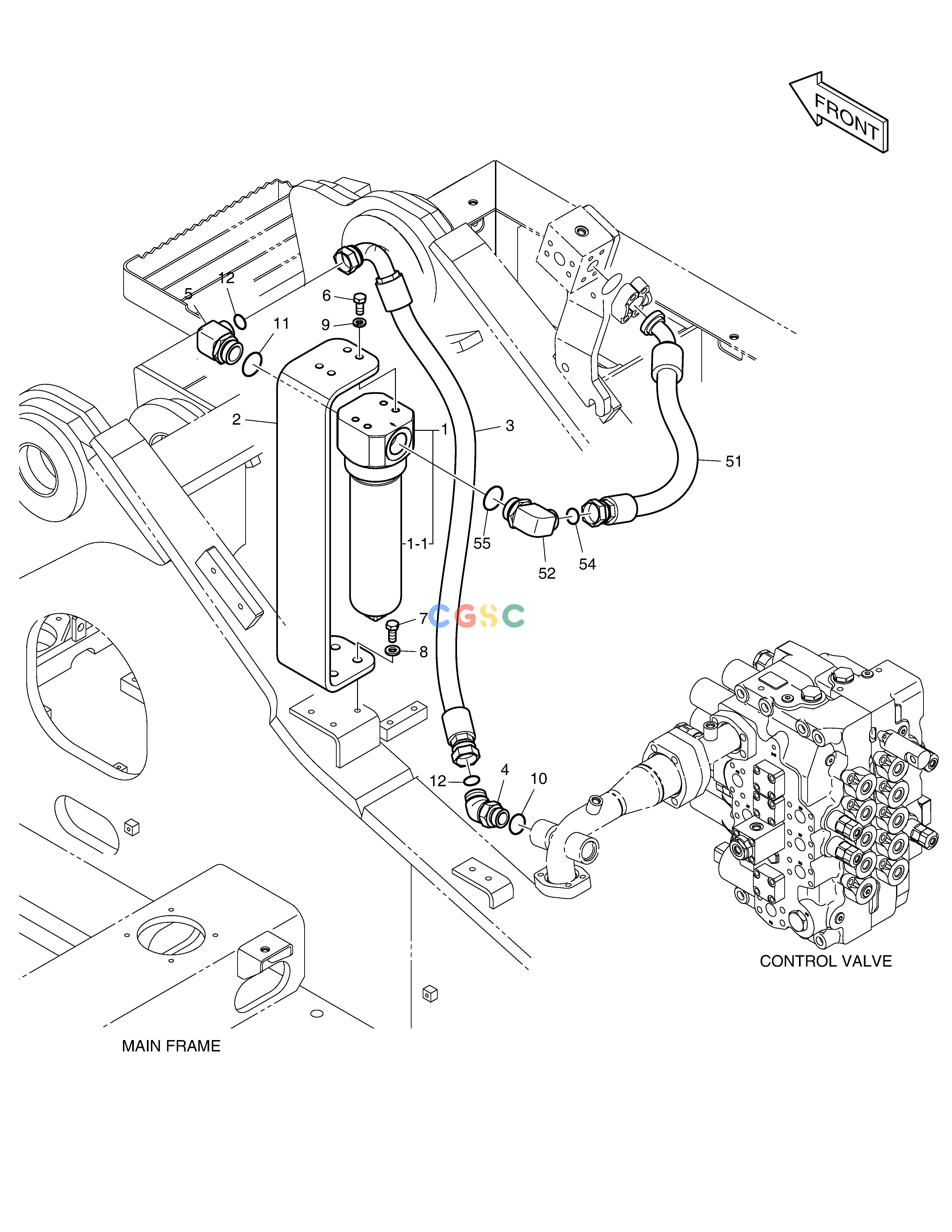

斗山零件查询ONE WAY PIPING - WITH FILTER DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
552 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08580
|
[-] |
|
|
| 1. |
471-00109
|
[1] |
FILTER;BREAKER
|
|
| 1-1. |
474-00041
|
[1] |
ELEMENT;BREAKER FILTER
|
|
| 10. |
S8000291
|
[1] |
O-RING
|
|
| 11. |
S8000381
|
[1] |
O-RING
|
|
| 12. |
S8030161
|
[2] |
O-RING
|
|
| 2. |
110413-00009B
|
[1] |
|
|
| 3. |
DS2013923
|
[1] |
HOSE
|
|
| 4. |
2181-2816D2
|
[1] |
ELBOW
|
|
| 5. |
DS2304076
|
[1] |
|
|
| 51. |
DS2017135
|
[1] |
|
|
| 52. |
DS2304076
|
[1] |
|
|
| 54. |
S8030161
|
[1] |
O-RING
|
|
| 55. |
S8000381
|
[1] |
O-RING
|
|
| 6. |
S0515166
|
[4] |
BOLT
|
|
| 7. |
S0515266
|
[4] |
BOLT
|
|
| 8. |
4114-1792A
|
[4] |
WASHER
|
|
| 9. |
S5102703
|
[4] |
WASHER
|
|
