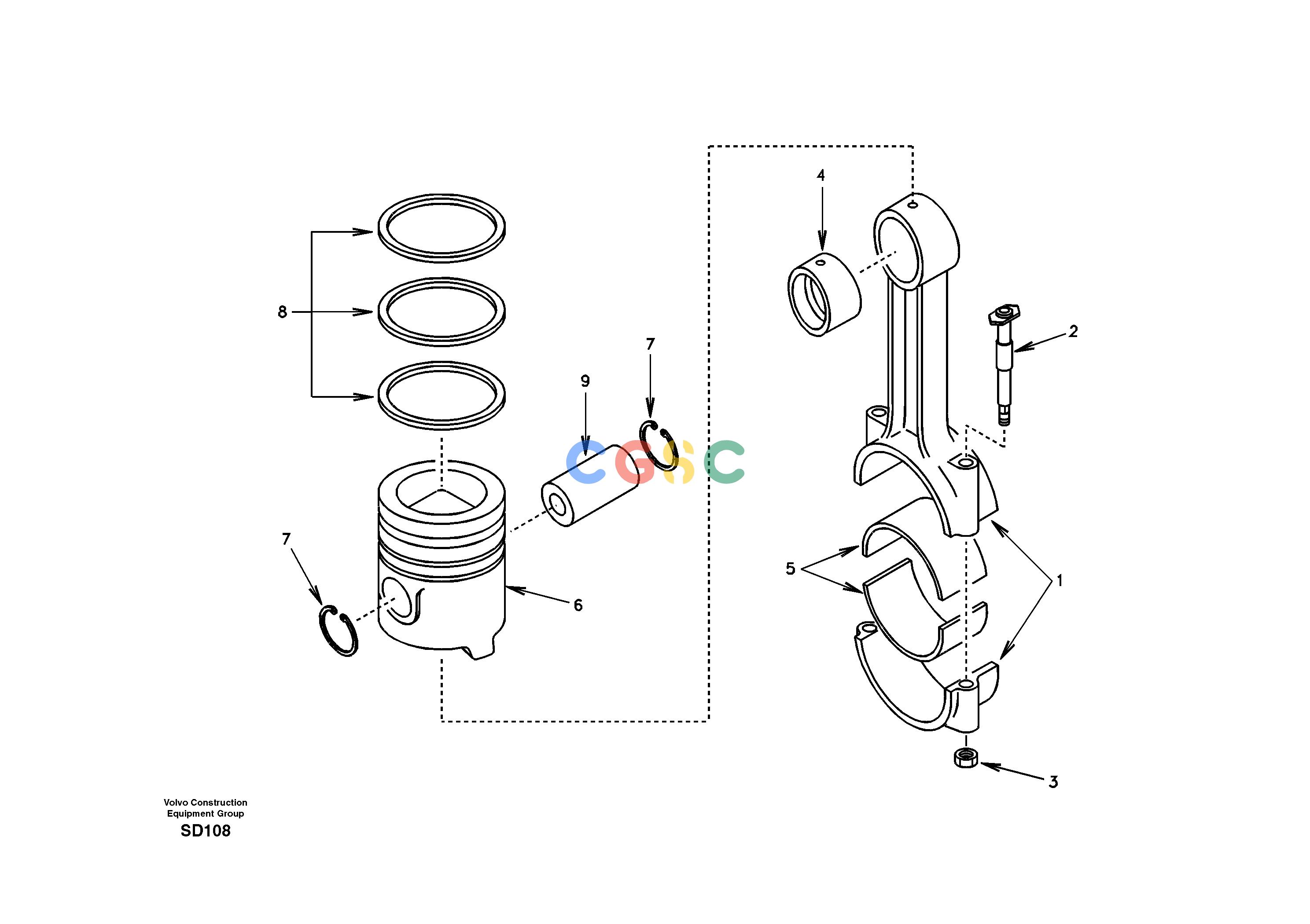

沃尔沃零件查询EC290 Connecting rod and pistonNoneDG04B001 TROPIC-DG04B002 STDNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
872 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA3901383
|
[6] |
Connecting Rod
|
|
| 1. |
SA3924350
|
[1] |
Connecting Rod
|
|
| 2. |
SA3928870
|
[2] |
Bolt
|
|
| 3. |
SA3934864
|
[2] |
Nut
|
|
| 4. |
SA3913990
|
[1] |
Bushing
|
|
| 5. |
SA3901430
|
[12] |
Bearing
|
STANDARD
|
| |
SA3901431
|
[REQ] |
Bearing
|
010
|
| |
SA3901432
|
[REQ] |
Bearing
|
020
|
| |
SA3901433
|
[REQ] |
Bearing
|
030
|
| |
SA3901434
|
[REQ] |
Bearing
|
040
|
| 6. |
SA3802657
|
[6] |
Piston
|
STANDARD
|
| 7. |
SA3901996
|
[2] |
Ring
|
SNAP
|
| 8. |
SA3802110
|
[1] |
Ring
|
STANDARD
|
| 9. |
SA3901597
|
[6] |
Pin
|
|
