凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (68.170.AM[02]) - VAR - 726666, 726964 - NET WRAP STATIONARY ROLL BRAKE TENSIONER, YFN188618 AND PRIOR Case Agriculture_凯斯Case_工程机械

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (68.170.AM[02]) - VAR - 726666, 726964 - NET WRAP STATIONARY ROLL BRAKE TENSIONER, YFN188618 AND PRIOR Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 620 次

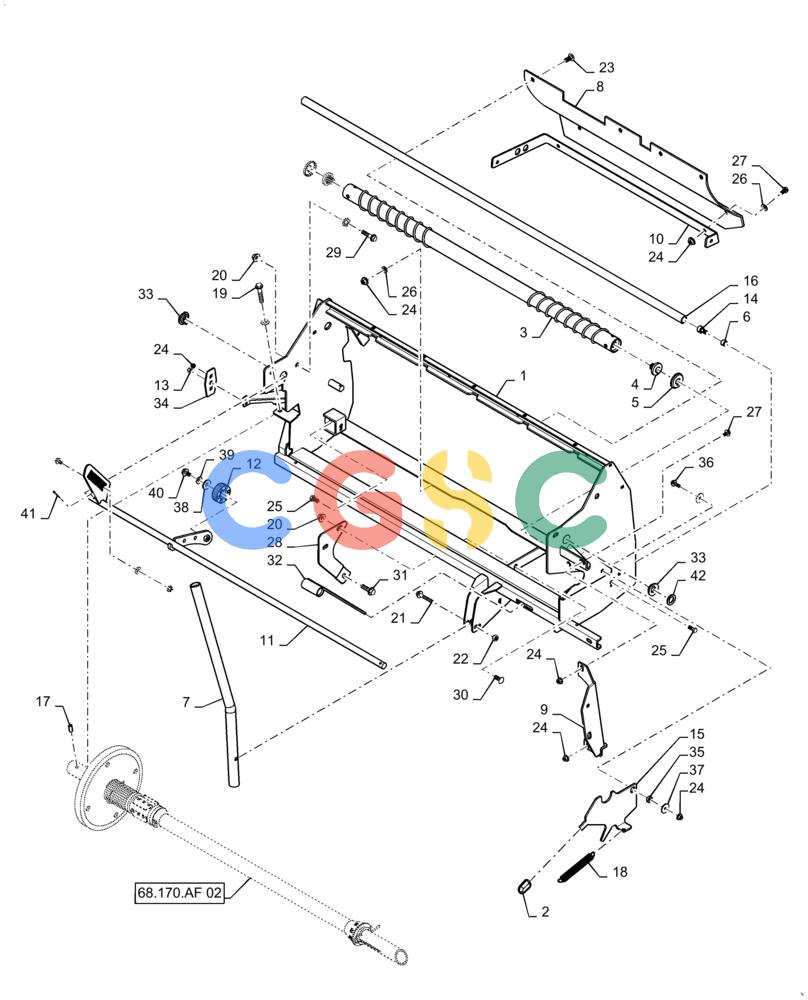

Pos.	Part No	Qty	Parts name	Comments
1.	84570133	[1]	SUPPORT	PLO
2.	86516827	[1]	HANDLE	NH
3.	87397756	[1]	ROLL,50.8mm OD x 1327mm L	PA Spreader
4.	87643130	[2]	SUPPORT	NH
5.	86622552	[2]	SHIELD	PA
6.	768703	[2]	BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L	NH
7.	84375021	[1]	TUBE	PLO
8.	47925326	[1]	SHIELD	NH
9.	84408933	[1]	SUPPORT	PLO LH
10.	47446548	[1]	SUPPORT	PLO
11.	47707358	[1]	SHAFT	NH
12.	84569292	[1]	ROLLER	PLO Net Counter
13.	80855	[2]	NUT,Hex, 3/8" - 24	WIN
14.	87010284	[2]	CAMSHAFT BEARING	NH Cam Follower
15.	84568730	[1]	LATCH	PLO
16.	47412297	[1]	SHAFT,25.4mm OD x 1392.9mm L	PLO Smooth
17.	47420685	[1]	SPACER	NH
18.	87109697	[1]	SPRING	GI
19.	86011090	[1]	BOLT,Hex Flng, M10 x 70mm, Cl 8.8	NH
20.	9804278	[4]	FLANGE NUT,M10 x 1.5, Cl 8	NH
21.	9804265	[1]	FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8	NH
22.	100037	[1]	LOCK NUT,M10 x 1.5, Cl 8	NH
23.	86507486	[9]	CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8	NH
24.	9804277	[19]	FLANGE NUT,Hex, M8 x 1.25, Cl 8	NH Superseded by part number: 86505868
25.	88206	[2]	BOLT,Hex, 3/8" - 16 x 1", Gr 5	NH
26.	80664	[9]	WASHER,0.38" ID x 0.88" OD x 0.08" Thk	NH
27.	86511841	[4]	BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8	NH
28.	84599791	[1]	SUPPORT	NH
29.	9804264	[1]	FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8	NH Superseded by part number: 16587625
30.	86512446	[2]	CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8	NH
31.	9804262	[1]	BOLT,M10 x 39.2mm, Cl 8.8	NH Superseded by part number: 9840672
32.	87026611	[1]	SHEET METAL	PA Net Stuffer
33.	87521161	[2]	BUSHING,20.2mm ID x 44.5mm OD x 10.5mm Thk	NH
34.	47412869	[1]	PLATE	NH
35.	859896	[1]	SPACER	NH
36.	9804260	[1]	BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8	NH
37.	80577826	[1]	WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk	NH
38.	80702	[1]	WASHER,0.44" ID x 1" OD x 0.08" Thk	NH
39.	322358	[1]	BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk	NH
40.	86050286	[5]	FLANGE BOLT,M10 x 20mm, Cl 8.8	NH
41.	87395	[2]	COTTER PIN,1/8" OD x 1-1/4" OAL	NH
42.	140021	[2]	WASHER,22mm ID x 37mm OD x 3mm Thk	NH
