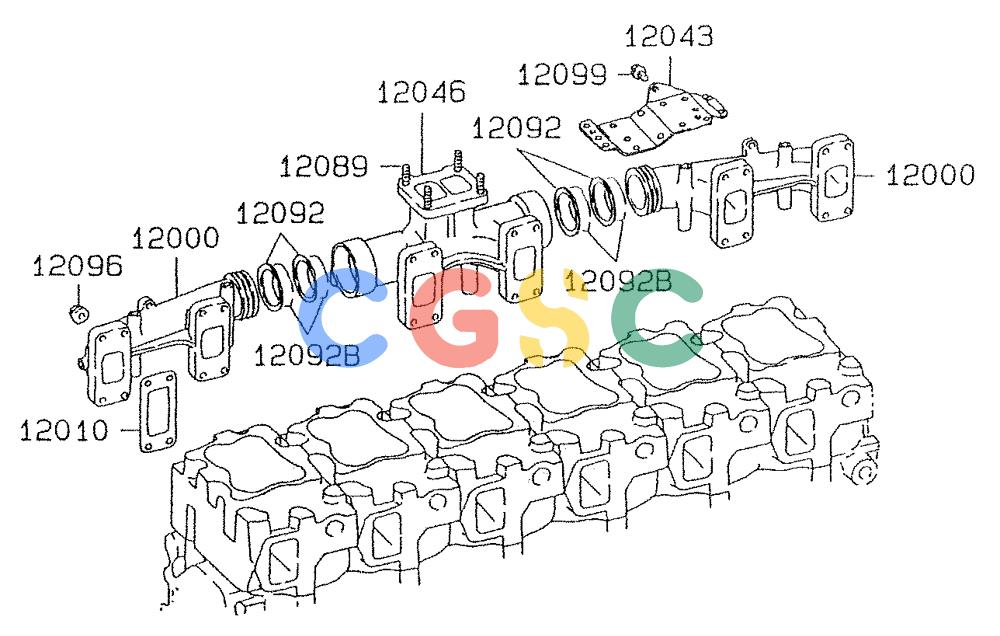

神钢零件查询(6D24-TEB) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (05-002) - EXHAUST MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
952 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 12000. | VAME152481 | [2] | EXHAUST MANIFOLD | KOB9809.1- |
| 12010. | VAME053112 | [6] | GASKET | KOBEXHAUST MANIFOLD, 9809.1- Superseded by part number: 134861A1 |
| 12043. | VAME150073 | [1] | FOAM INSULATION | KOBEXHAUST MANIFOLD HEAT, 9809.1- Superseded by part number: 134862A1 |
| 12046. | VAME053862 | [1] | EXHAUST MANIFOLD | KOBCTR, 9809.1- |
| 12089. | VAMF407728 | [4] | STUD | KOBEXHAUST MANIFOLD, 10X30, 9809.1- Superseded by part number: 134865A1 |
| 12092. | VAME053950 | [4] | SEAL | KOBEXHAUST MANIFOLD, 9809.1- Superseded by part number: 134866A1 |
| 12092B. | VAME053952 | [4] | SEAL | KOBEXHAUST MANIFOLD, 9809.1- Superseded by part number: 134867A1 |
| 12096. | VAMH004054 | [24] | NUT | KOBEXHAUST MANIFOLD, FLANGE, 10, 9809.1- Superseded by part number: 134868A1 |
| 12099. | VAMH000392 | [3] | BOLT | KOBEXHAUST MANIFOLD, WASHER ASSEMBLE D.8X12, 9809.1- |
