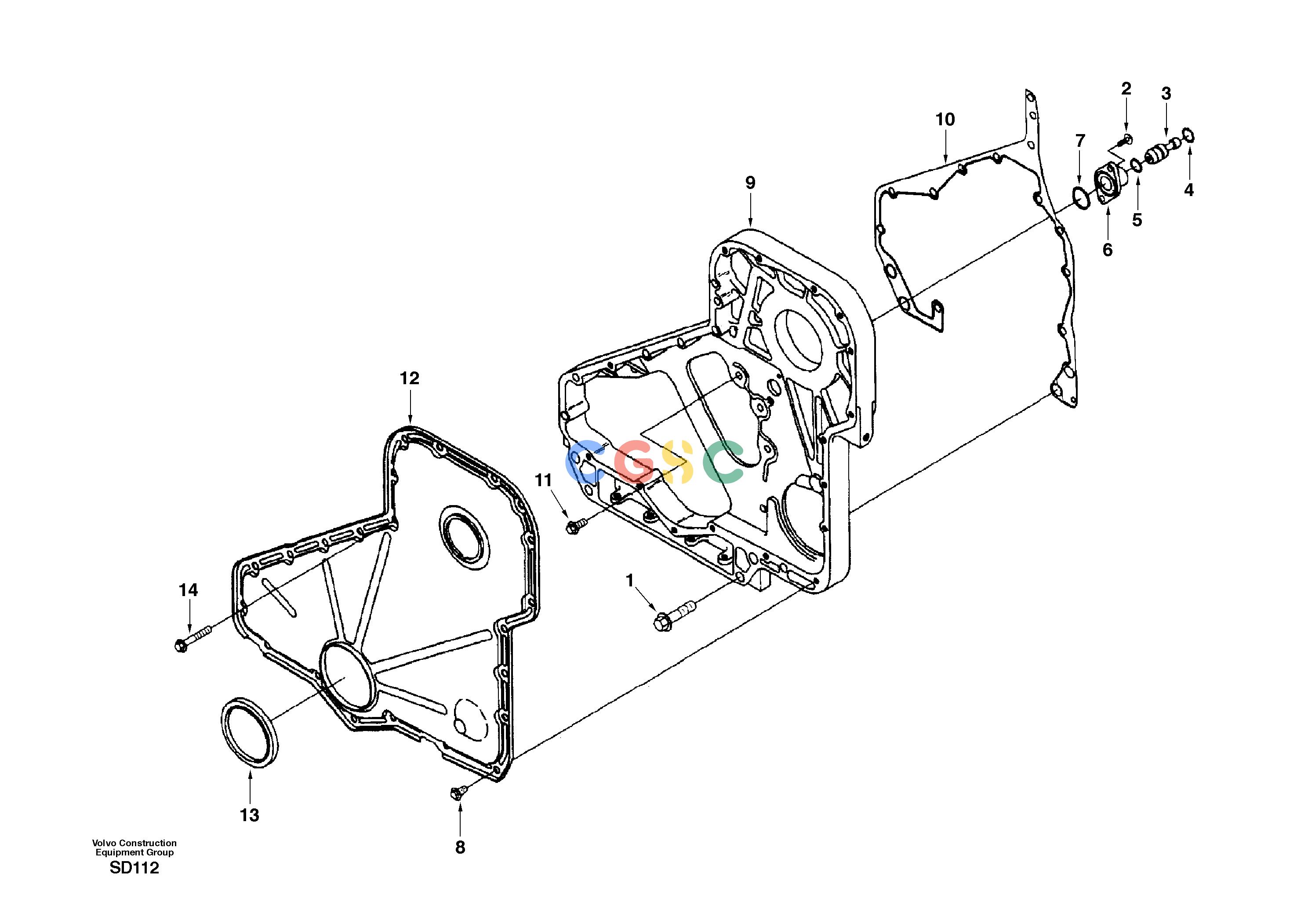

沃尔沃零件查询EC290 Timing gear casingNoneDG04B001 TROPIC-DG04B002 STDNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
710 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3902116
|
[4] |
Screw
|
|
| 2. |
SA3907998
|
[2] |
Screw
|
|
| 3. |
SA3903924
|
[1] |
Pin
|
|
| 4. |
SA3904849
|
[1] |
Retaining ring
|
|
| 5. |
VOE11716092
|
[1] |
Seal
|
|
| 6. |
SA3919683
|
[1] |
Cover
|
|
| 7. |
SA3915772
|
[1] |
Seal
|
|
| 8. |
SA3925883
|
[16] |
Bolt
|
|
| 9. |
SA3926721
|
[1] |
Housing
|
|
| 10. |
SA3929253
|
[1] |
Gasket
|
|
| 11. |
SA3926846
|
[5] |
Screw
|
|
| 12. |
SA3926847
|
[1] |
Cover
|
|
| 13. |
SA4025270
|
[1] |
Sealing
|
|
| 14. |
SA3926863
|
[6] |
Screw
|
|
