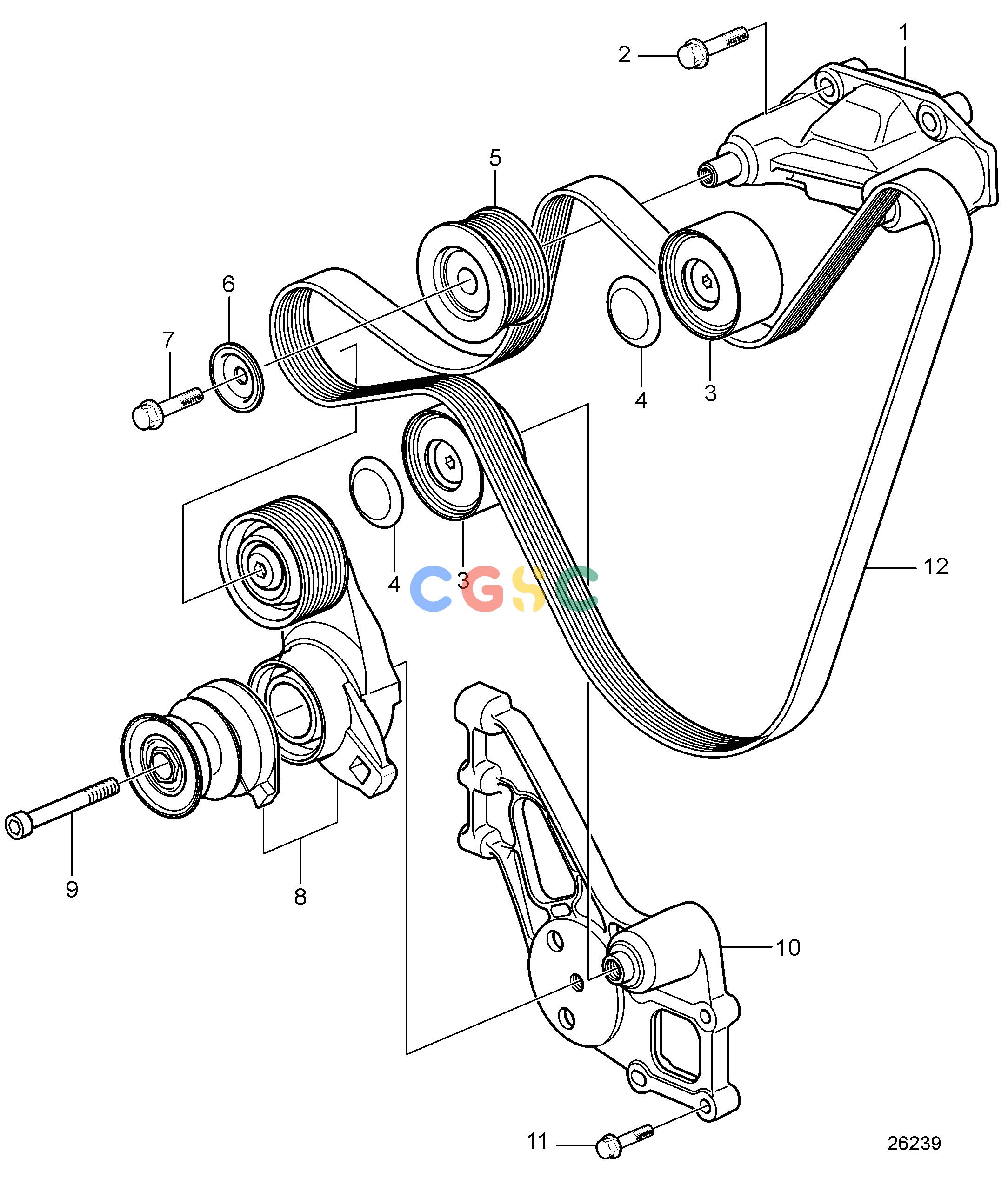

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHCooling SystemBelt Tensioner Device HE/KC/CCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
553 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22722110
|
[1] |
Bracket
|
SN-2013665901
|
| 1. |
78466877
|
[1] |
Bracket
|
SN2013665902-
|
| 2. |
984755
|
[3] |
Flange screw
|
|
| 3. |
21676635
|
[2] |
Idler pulley
|
|
| 4. |
21717627
|
[2] |
Dust cover
|
|
| 5. |
20357382
|
[1] |
Idler pulley
|
|
| 6. |
8097084
|
[1] |
Cover
|
|
| 7. |
984756
|
[1] |
Flange screw
|
|
| 8. |
21631484
|
[1] |
Belt tensioner
|
|
| 9. |
959249
|
[1] |
Hex. socket screw
|
|
| 10. |
22529079
|
[1] |
Bracket
|
|
| 11. |
984739
|
[4] |
Flange screw
|
|
| 12. |
21457868
|
[1] |
V-ribbed belt
|
SN-2013665901, For engines with singel alternator
|
| 12. |
60113500
|
[1] |
V-ribbed belt
|
SN2013665902- For engines with singel alternator
|
| 12. |
995162
|
[1] |
V-ribbed belt
|
SN-2013665901,engines belt driven sea water pump
|
| 12. |
60113501
|
[1] |
V-ribbed belt
|
SN2013665902- for engines with twin alternator
|
| 12. |
995163
|
[1] |
V-ribbed belt
|
Engines with alternator and belt driven sea water pump
|
| 12. |
20580937
|
[1] |
V-ribbed belt
|
SN-1013688853 Engines without alternator and without belt driven sea water pump
|
| 12. |
20451458
|
[1] |
V-ribbed belt
|
SN1013688854- Engines without alternator and without belt driven sea water pump
|
