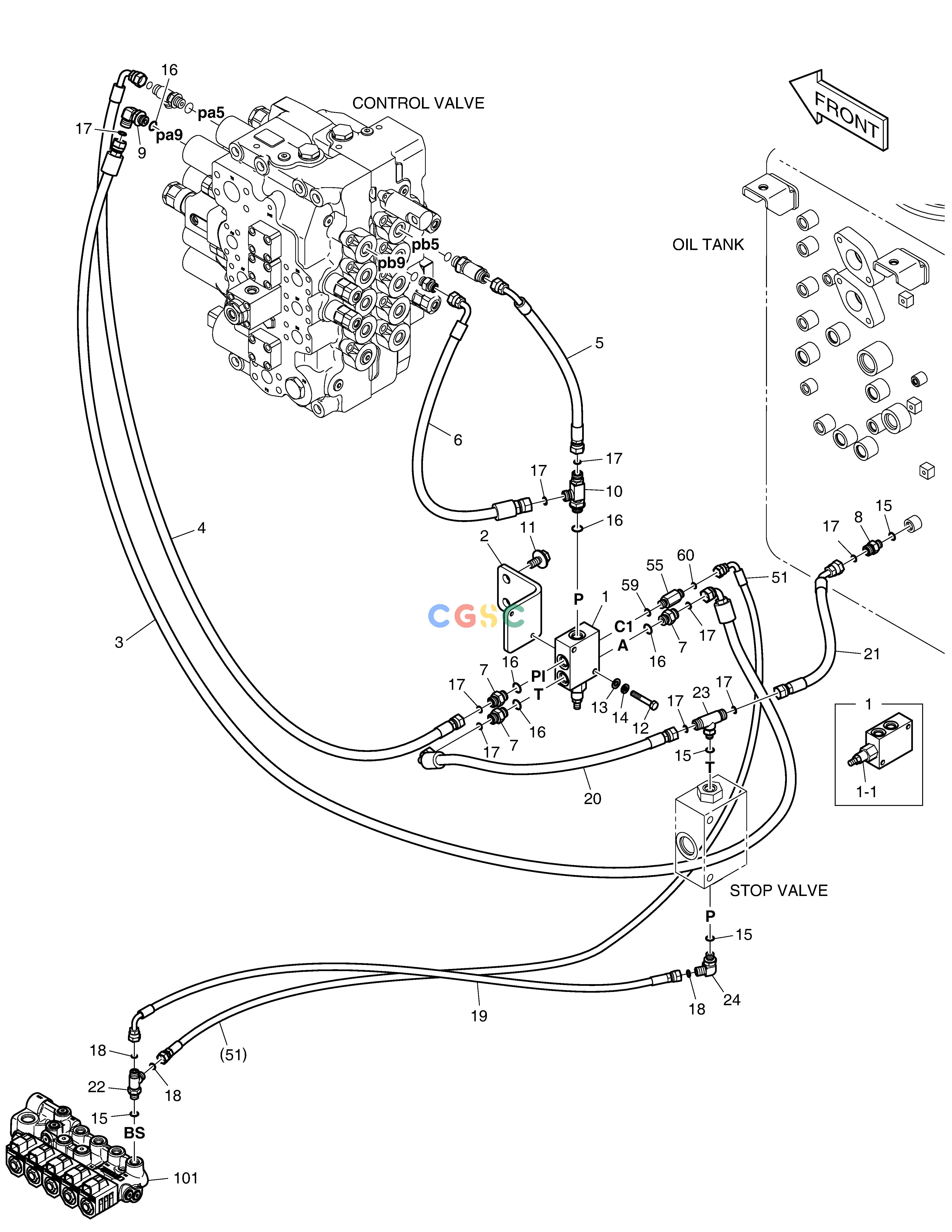

斗山零件查询PILOT PIPING - TWO PUMP DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
213 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08570
|
[-] |
|
|
| 1. |
K1014266
|
[1] |
VALVE;PILOT
|
|
| 1-1. |
2.421-00208
|
[1] |
VALVE;PILOT SHIFT
|
|
| 10. |
410134-00033
|
[1] |
|
|
| 101. |
410135-00235A
|
[1] |
|
|
| 11. |
DS0025018
|
[2] |
BOLT
|
|
| 12. |
S0556366
|
[2] |
BOLT
|
|
| 13. |
S5010513
|
[2] |
WASHER
|
|
| 14. |
S5102503
|
[2] |
. WASHER
|
|
| 15. |
S8000111
|
[4] |
O-RING
|
|
| 16. |
S8000141
|
[5] |
O-RING
|
|
| 17. |
S8030061
|
[9] |
O-RING
|
|
| 18. |
S8030041
|
[3] |
O-RING
|
|
| 19. |
DS2119129
|
[1] |
|
|
| 2. |
110406-00811
|
[1] |
|
|
| 20. |
DS2121020
|
[1] |
|
|
| 21. |
DS2142007
|
[1] |
|
|
| 22. |
181-00121D1
|
[1] |
TEE
|
|
| 23. |
DS2418012
|
[1] |
|
|
| 24. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 3. |
DS2121051
|
[1] |
|
|
| 4. |
DS2121187
|
[1] |
|
|
| 5. |
DS2121289
|
[1] |
|
|
| 51. |
DS2123185
|
[1] |
|
|
| 55. |
2181-4133D44
|
[1] |
ADAPTER
|
|
| 59. |
S8000111
|
[1] |
O-RING
|
|
| 6. |
DS2143020
|
[1] |
|
|
| 60. |
S8030041
|
[1] |
O-RING
|
|
| 7. |
2181-4133D2
|
[3] |
ADAPTER
|
|
| 8. |
2181-4133D40
|
[1] |
ADAPTER
|
|
| 9. |
2181-2815D6
|
[1] |
ELBOW
|
|
