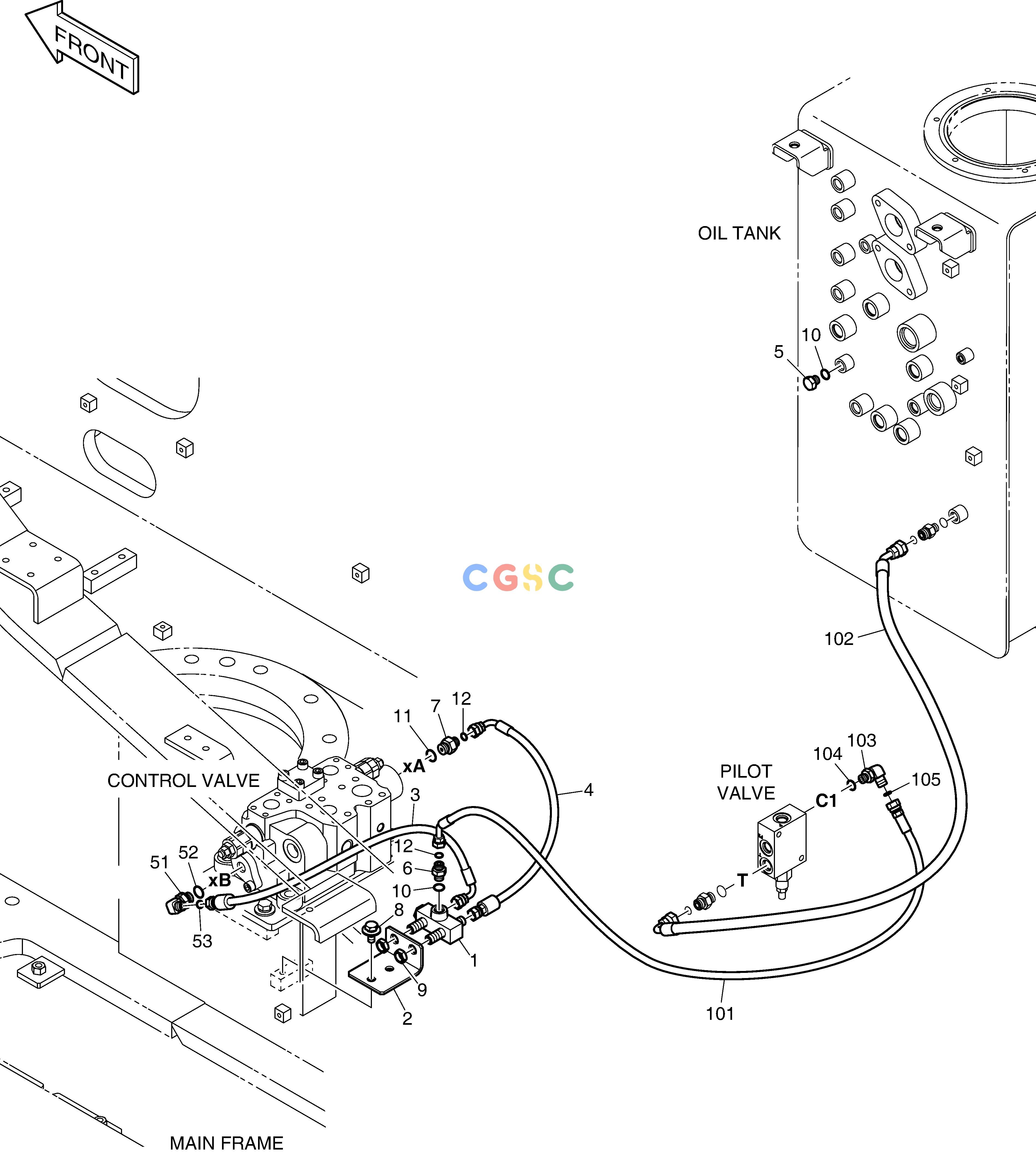

斗山零件查询PILOT PIPING(1) - ARTI. BOOM DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
317 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08547
|
[-] |
|
|
| 1. |
410134-00015
|
[1] |
|
|
| 10. |
S8000111
|
[2] |
O-RING
|
|
| 101. |
DS2120092
|
[1] |
|
|
| 102. |
DS2140003
|
[1] |
|
|
| 103. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 104. |
S8000111
|
[1] |
O-RING
|
|
| 105. |
S8030041
|
[1] |
O-RING
|
|
| 11. |
S8000141
|
[1] |
O-RING
|
|
| 12. |
S8030041
|
[2] |
O-RING
|
|
| 2. |
110406-01559
|
[1] |
|
|
| 3. |
DS2121359
|
[1] |
|
|
| 4. |
DS2143007
|
[1] |
|
|
| 5. |
2181-1950D1
|
[1] |
PLUG
|
|
| 51. |
2181-2815D7
|
[1] |
ELBOW
|
|
| 52. |
S8000141
|
[1] |
O-RING
|
|
| 53. |
S8030041
|
[1] |
O-RING
|
|
| 6. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 7. |
2181-4133D41
|
[1] |
ADAPTER
|
|
| 8. |
DS0025017
|
[2] |
BOLT
|
|
| 9. |
DS0301031
|
[2] |
NUT
|
|
