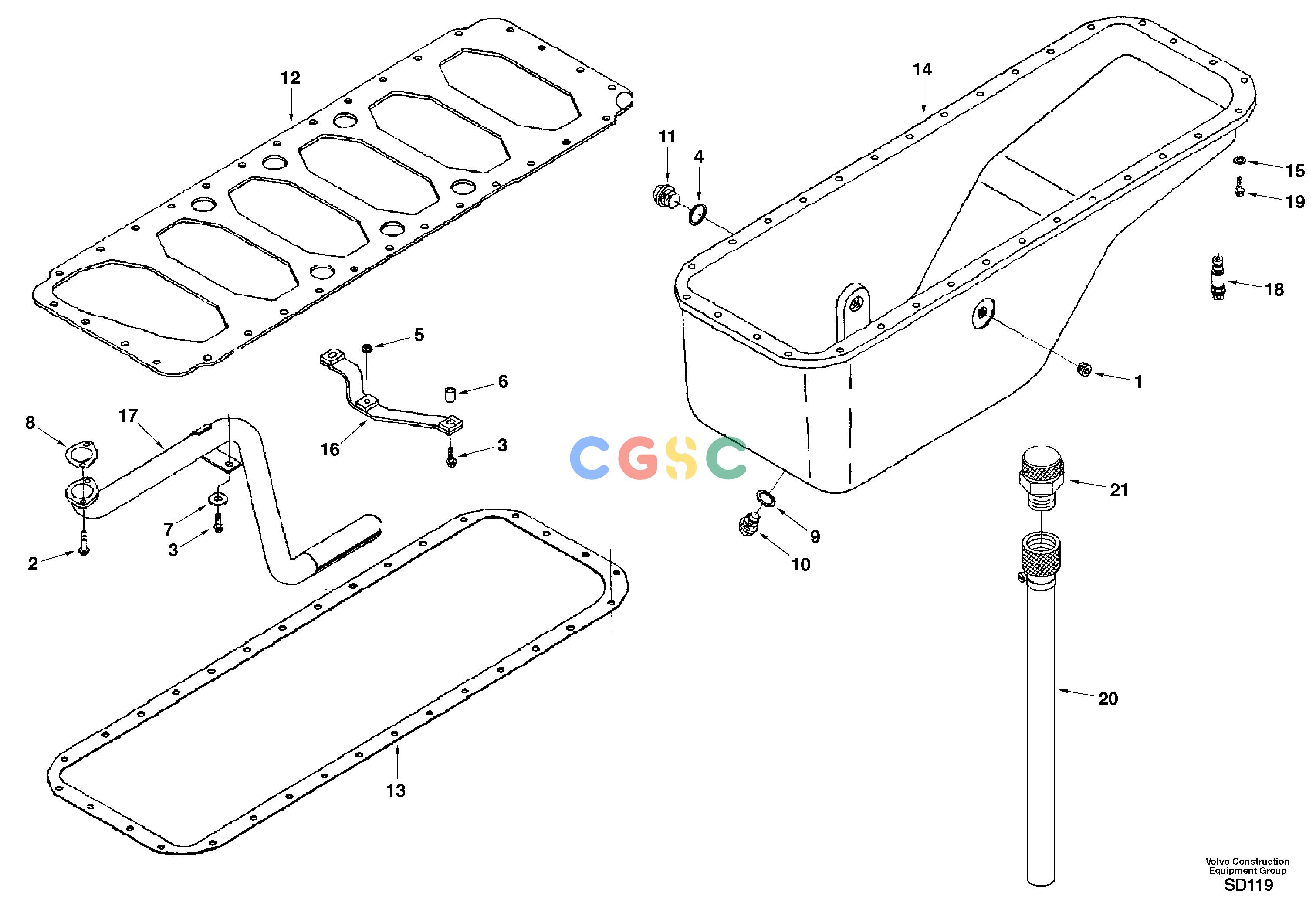

沃尔沃零件查询EC290 Oil sumpNoneDG04B001 TROPIC-DG04B002 STDNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
729 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3013786
|
[1] |
Plug
|
|
| 2. |
SA3900628
|
[2] |
Screw
|
|
| 3. |
SA3901865
|
[4] |
Bolt
|
|
| 4. |
VOE11716074
|
[1] |
Washer
|
|
| 5. |
SA3906216
|
[2] |
Nut
|
|
| 6. |
SA3926865
|
[2] |
Spacer
|
|
| 7. |
SA3910960
|
[2] |
Washer
|
|
| 8. |
SA3914302
|
[1] |
Gasket
|
|
| 9. |
SA3920773
|
[1] |
Washer
|
|
| 10. |
SA3924147
|
[1] |
Plug
|
|
| 11. |
SA3924148
|
[1] |
Plug
|
|
| 12. |
SA3927606
|
[1] |
Plate
|
|
| 13. |
SA3930408
|
[1] |
Gasket
|
|
| 14. |
SA3932070
|
[1] |
Oil Pan
|
|
| 15. |
SA3908316
|
[32] |
Washer
|
|
| 16. |
SA3931787
|
[1] |
Brace
|
|
| 17. |
SA3931979
|
[1] |
Connector
|
|
| 18. |
SA3931352
|
[1] |
Valve
|
|
| 19. |
SA3902114
|
[32] |
Screw
|
|
| 20. |
SA3282945
|
[1] |
Adapter
|
|
| 21. |
SA3283505
|
[1] |
Valve
|
|
