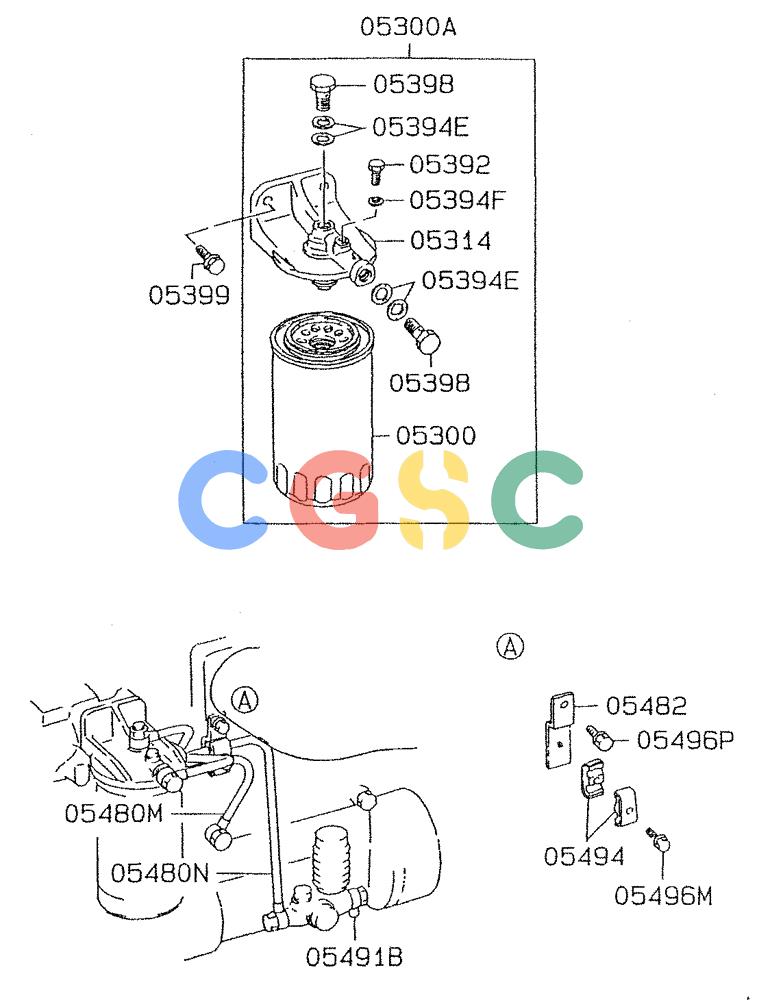

神钢零件查询(6D24-TEB) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-001) - FUEL FILTER & HOSE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
418 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 05300. | VAME056670 | [1] | ELEMENT | KOBFUEL, 9809.1- Superseded by part number: 84160262 |
| 05300A. | VAME090010 | [1] | FUEL FILTER | KOBFUEL FILTER ASSY, 9809.1- Superseded by part number: 302996A1 |
| . . | VAME090012 | [1] | FUEL FILTER | KOB Superseded by part number: 302996A1 |
| 05314. | VAME056279 | [1] | FILTER HEAD | KOB9809.1- Superseded by part number: 133399A1 |
| 05392. | VAME016894 | [1] | PLUG | KOBFUEL FILTER, SCREW, 8X9, 9809.1- |
| 05394E. | VAMH035069 | [4] | GASKET | KOBFUEL FILTER, 14, 9809.1- Superseded by part number: 133378A1 |
| 05394F. | VAMH035067 | [1] | GASKET | KOBFUEL FILTER, 8, 9809.1- |
| 05398. | VAMH037087 | [2] | BOLT | KOBEYE, FUEL FILTER, 14X26, 9809.1- |
| 05399. | VAMH000714 | [2] | BOLT | KOBFUEL FILTER, FLANGE, 10X25, 9809.1- |
| 05480M. | VAME158352 | [1] | TUBE, FUEL LINE, 10, 9809.1- | |
| 05480N. | VAME158351 | [1] | TUBE, FUEL LINE, 10, 9809.1- | |
| 05482. | VAME930211 | [1] | STAY, FUEL LINE, 9809.1- | |
| 05491B. | VAMH037116 | [1] | FLEXIBLE JOINT | KOBFUEL LINE, 9809.1- |
| 05494. | VAMH021218 | [2] | CLAMP | KOBFUEL LINE, D = 9X2, 9809.1- |
| 05496M. | VAMF140013 | [1] | BOLT | KOBFUEL LINE, FLANGE, 6X35, 9809.1- |
| 05496P. | VAMH000706 | [1] | SCREW | KOBFUEL LINE, FLANGE, 10X16 , 9809.1- Superseded by part number: 132289A1 |
