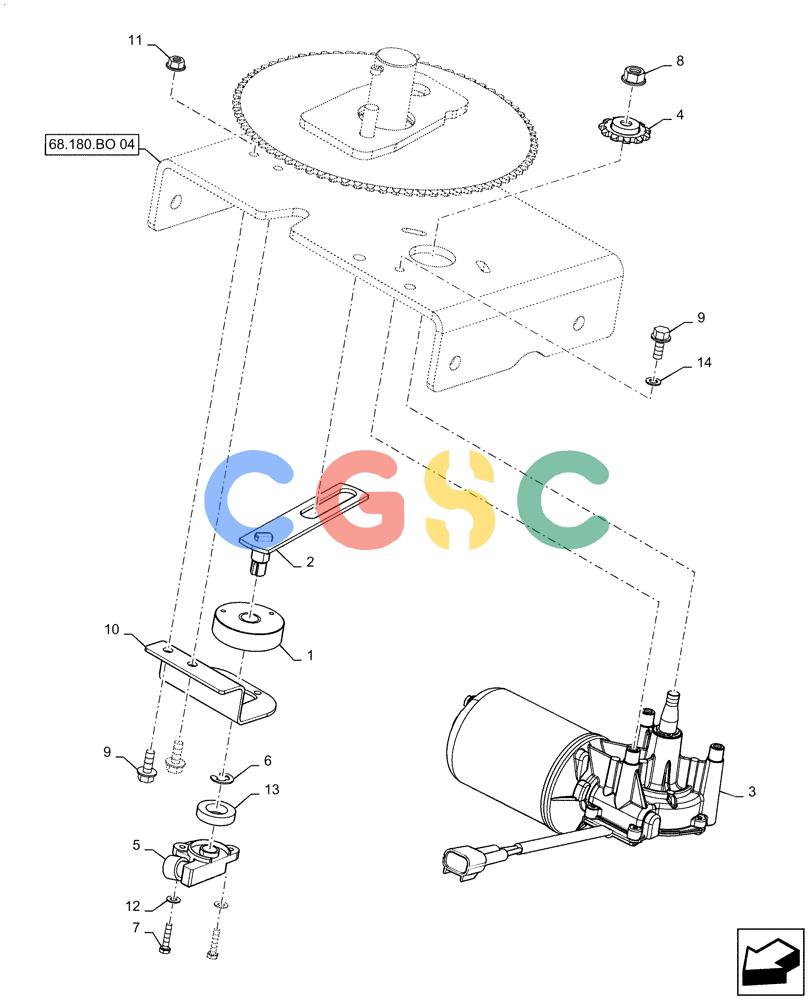

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (68.180.BO[03]) - TWINE PIVOT ELECTRIC Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
942 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84308004
|
[1] |
HUB
|
NH
|
| 2. |
84279849
|
[1] |
ACTUATING PLATE
|
NH
|
| 3. |
47441445
|
[1] |
WIPER MOTOR,12V
|
NH
Twine Pivot
|
| 4. |
84258225
|
[1] |
SPROCKET,RC35, 11T
|
NH
|
| 5. |
86977396
|
[1] |
POTENTIOMETER,3000 Ohm, 16 VDC
|
PA
|
| 6. |
86000439
|
[1] |
SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External
|
NH
|
| 7. |
412255
|
[2] |
BOLT,Hex, M4 x 20mm, Cl 8.8
|
NH
|
| 8. |
86505868
|
[1] |
SERRATED NUT,Hex, M8 x 1.25, Cl 8
|
ZED
|
| 9. |
9804256
|
[5] |
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
|
NH
|
| 10. |
84300445
|
[1] |
MOUNT
|
NH
|
| 11. |
9804276
|
[2] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 12. |
9672521
|
[2] |
LOCK WASHER,Ext Tooth, #10
|
WIN
|
| 13. |
86613601
|
[1] |
WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk
|
NH
|
| 14. |
322357
|
[3] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
