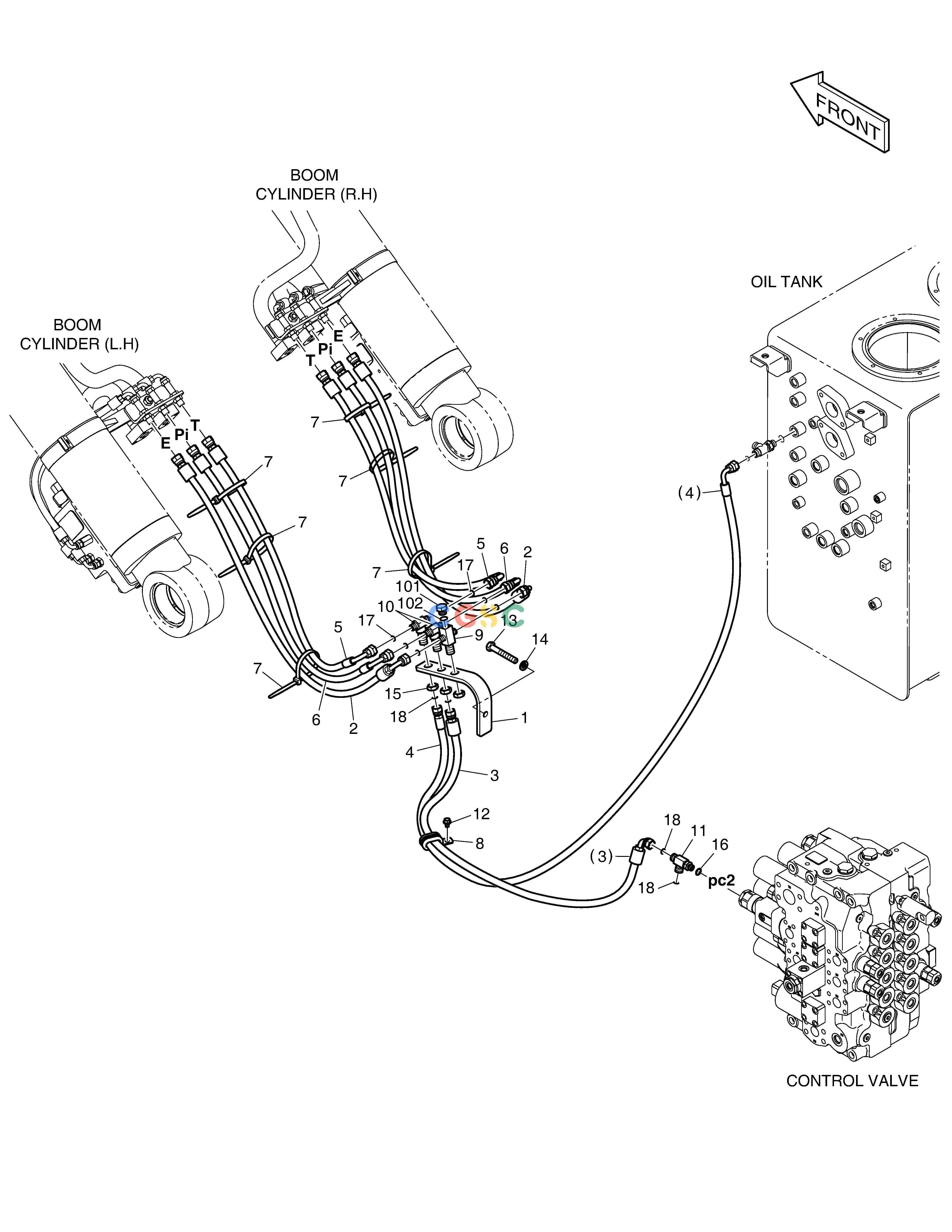

斗山零件查询PILOT PIPING-BOOM LOCK VALVE DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
921 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08548
|
[-] |
|
|
| 1. |
110420-00027A
|
[1] |
|
|
| 10. |
DS2416013
|
[2] |
|
|
| 101. |
2181-1950D2
|
[1] |
PLUG
|
|
| 102. |
S8000141
|
[1] |
O-RING
|
|
| 11. |
DS2412016
|
[1] |
|
|
| 12. |
K1001029
|
[1] |
BOLT
|
|
| 13. |
S0561366
|
[1] |
BOLT
|
|
| 14. |
S5102703
|
[1] |
WASHER
|
|
| 15. |
DS0301032
|
[3] |
NUT
|
|
| 16. |
S8000111
|
[1] |
O-RING
|
|
| 17. |
S8030041
|
[6] |
O-RING
|
|
| 18. |
S8030061
|
[4] |
O-RING
|
|
| 2. |
DS20132278
|
[2] |
|
|
| 3. |
DS2121037
|
[1] |
|
|
| 4. |
DS2121209
|
[1] |
|
|
| 5. |
DS2143008
|
[2] |
|
|
| 6. |
DS2143009
|
[2] |
|
|
| 7. |
310101-00035
|
[6] |
TIE,CABLE
|
|
| 8. |
124-00209D1
|
[1] |
CLIP
|
|
| 9. |
430225-00006A
|
[1] |
|
|
