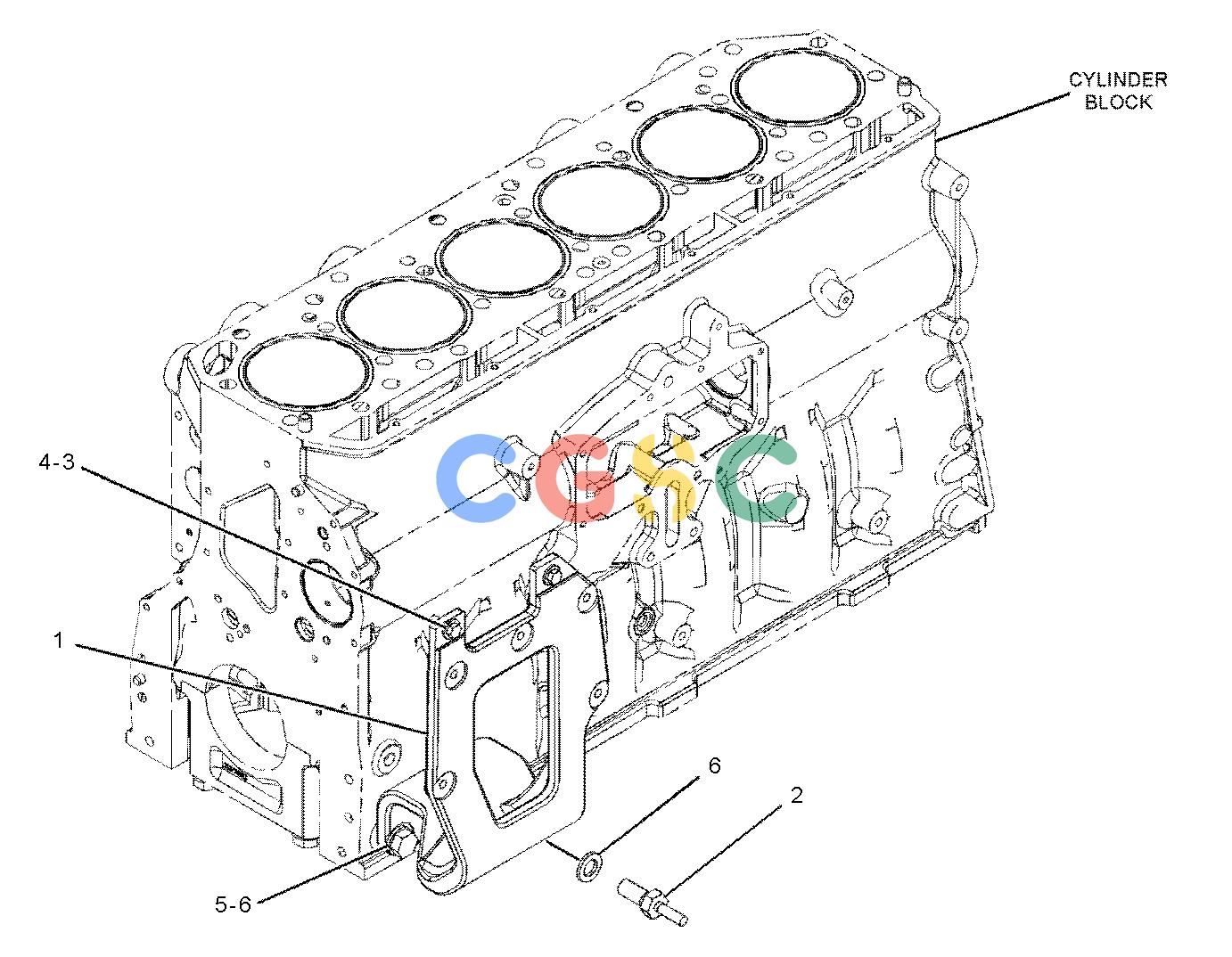

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 352-9361 | [1] | BRACKET | |
| 2. | 276-3596 | [1] | STUD | |
| 3. | 3E-4352 | [2] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 4. | 6V-3940M | [2] | BOLT(M8X1.25X25-MM) | |
| 5. | 6V-5844M | [1] | BOLT(M16X2X35-MM) | |
| 6. | 9X-8268 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| M | METRIC PART | |||
