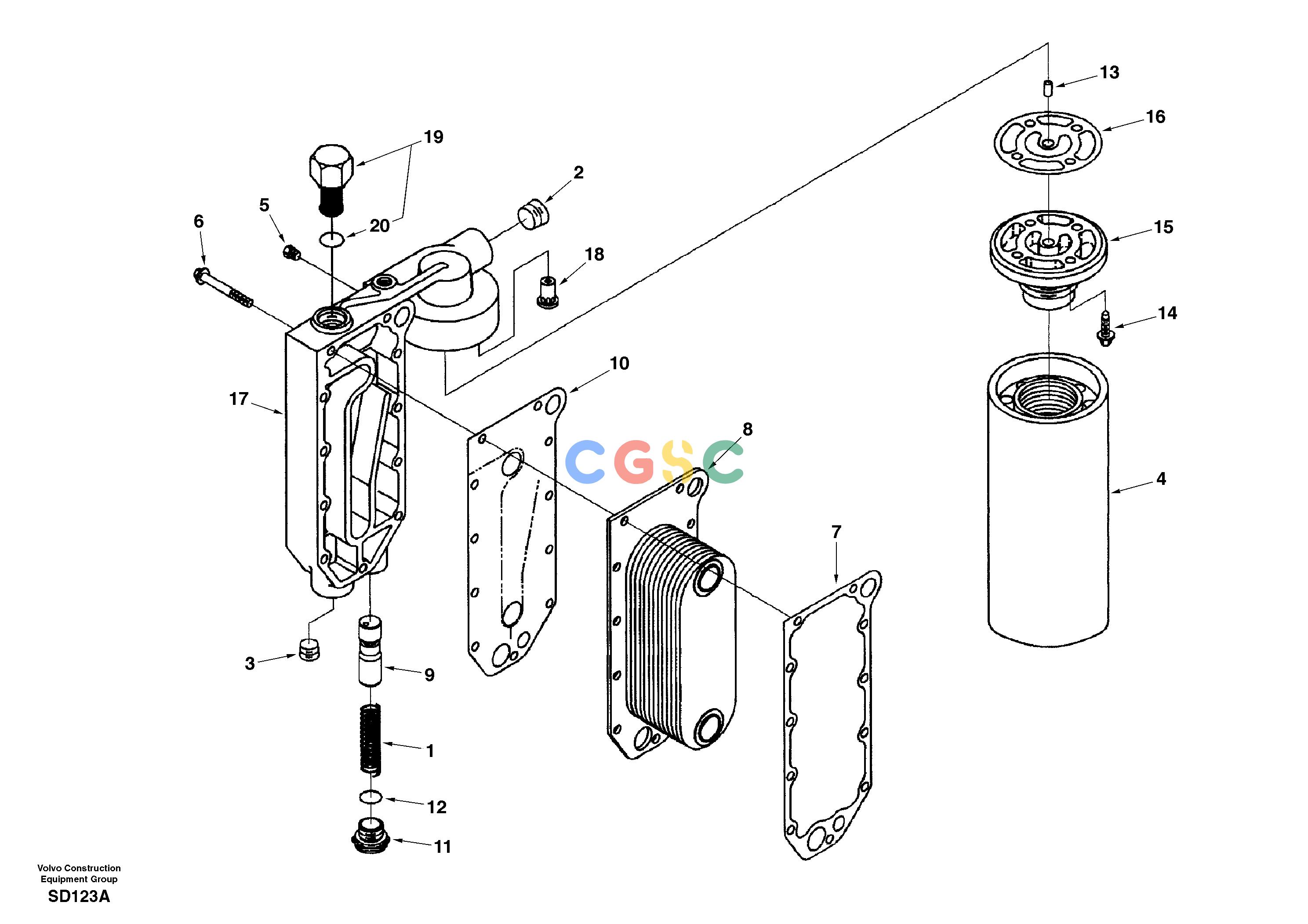

沃尔沃零件查询EC290 Oil coolerNoneDG04B001 TROPIC-DG04B002 STDNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
359 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA68274
|
[1] |
Spring
|
|
| 2. |
SA3008469
|
[1] |
Plug
|
|
| 3. |
SA3027232
|
[1] |
Plug
|
|
| 4. |
VOE11712405
|
[1] |
Oil Filter
|
|
| 5. |
SA3906619
|
[2] |
Plug
|
|
| 6. |
SA3916073
|
[11] |
Screw
|
|
| 7. |
VOE11716099
|
[1] |
Gasket
|
|
| 8. |
SA3918175
|
[1] |
Radiator Core
|
|
| 9. |
SA3918532
|
[1] |
Plunger
|
|
| 10. |
SA3929011
|
[1] |
Gasket
|
|
| 11. |
SA3931084
|
[1] |
Plug
|
|
| 12. |
SA3930911
|
[1] |
Seal
|
|
| |
SA3934159
|
[1] |
Head
|
|
| 13. |
SA118227
|
[1] |
Ring
|
|
| 14. |
SA3907860
|
[4] |
Screw
|
|
| 15. |
SA3918334
|
[1] |
Head
|
|
| 16. |
SA3921605
|
[1] |
Gasket
|
|
| 17. |
SA3931077
|
[1] |
Cover
|
|
| 18. |
SA3933615
|
[1] |
Valve
|
|
| 19. |
SA3934410
|
[1] |
Valve
|
|
| 20. |
SA3201562
|
[1] |
Seal
|
|
