神钢零件查询(6D24-TEB) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-004) - FUEL RETURN HOSE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
610 次

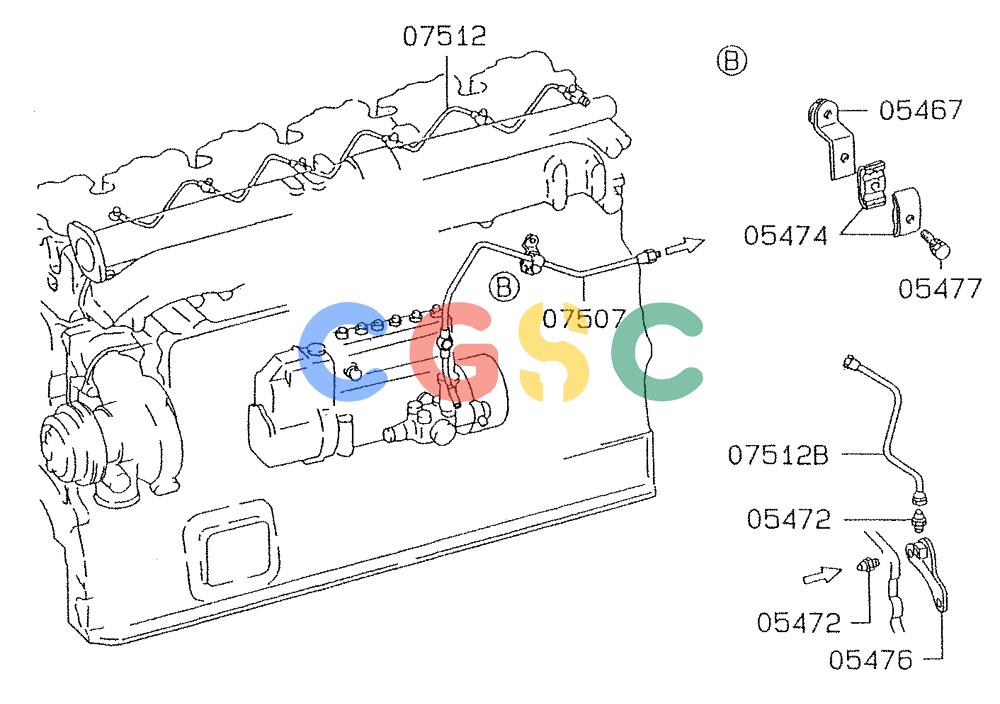

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 05467. | VAMH023119 | [1] | BRACKET | KOBSTAY, FUEL RETURN LINE, 9809.1- Superseded by part number: 133324A1 |
| 05472. | VAMH038906 | [2] | HYD CONNECTOR | KOBJOINT, FUEL RETURN LINE, 9809.1- Superseded by part number: 133327A1 |
| 05474. | VAMH021233 | [2] | CLAMP | KOBFUEL RETURN LINE, D = 6X2, 9809.1- Superseded by part number: 133329A1 |
| 05476. | VAME158019 | [1] | BRACKET, FUEL RETURN LINE, 9809.1- | |
| 05477. | VAMF140013 | [1] | BOLT | KOBFUEL RETURN LINE, FLANGE, 6X35, 9809.1- |
| 07507. | VAME158479 | [1] | TUBE | KOB8, 9809.1- |
| 07512. | VAME056925 | [1] | PIPE | KOBTUBE, INJECTION NOZZLE RETURN, 6.35, 9809.1- Superseded by part number: 240284A1 |
| 07512B. | VAME059630 | [1] | PIPE | KOBTUBE, INJECTION NOZZLE, 9809.1- |
