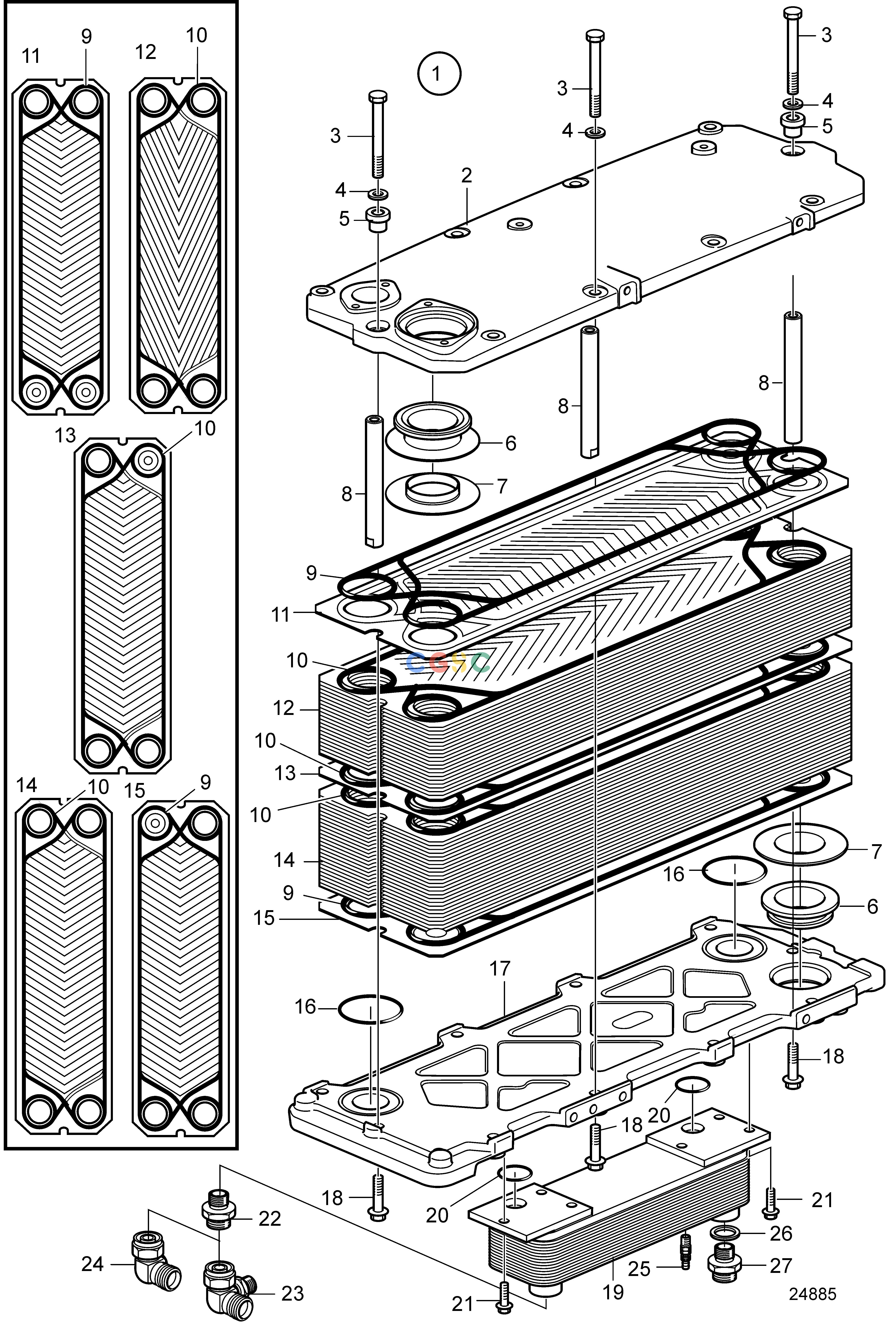

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHCooling SystemHeat Exchanger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1020 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21404010
|
[1] |
Heat exchanger
|
|
| 2. |
21111056
|
[1] |
Top plate
|
|
| 3. |
970959
|
[10] |
Hexagon screw
|
|
| 4. |
190523
|
[10] |
Washer
|
|
| 5. |
21111110
|
[2] |
Spacer tube
|
|
| 6. |
21111123
|
[2] |
Liner
|
|
| 7. |
21111128
|
[2] |
Collar
|
|
| 8. |
21111099
|
[10] |
Spacer tube
|
|
| 9. |
21242901
|
[2] |
Gasket, Top & Bottom
|
See workshop manual,or 47701879
|
| 10. |
21242902
|
[44] |
Gasket
|
|
| 11. |
21111094
|
[1] |
Cooling plate, Top
|
|
| 12. |
21242897
|
[17] |
Cooling plate
|
|
| 13. |
21242898
|
[1] |
Cooling plate, middle
|
|
| 14. |
21242895
|
[25] |
Cooling plate
|
|
| 15. |
21242894
|
[1] |
Cooling plate, bottom
|
|
| 16. |
925255
|
[2] |
O-ring
|
H=3mm, old version
|
| 16. |
994661
|
[2] |
O-ring
|
H=5mm, new version
|
| 17. |
21111085
|
[1] |
Bottom plate
|
Replaced by one 21446285 and two 994661
|
| 17. |
21446285
|
[1] |
Bottom plate
|
|
| 18. |
984755
|
[10] |
Flange screw
|
|
| 19. |
3594800
|
[1] |
Oil cooler
|
Relaced by 21403974
|
| 19. |
21403974
|
[1] |
Oil cooler
|
|
| 20. |
925064
|
[2] |
O-ring
|
|
| 21. |
984735
|
[3] |
Flange screw
|
|
| 22. |
994010
|
[2] |
Nipple
|
For IPS
|
| 23. |
22757596
|
[1] |
Elbow
|
For IPS, classified design
|
| 24. |
992197
|
[1] |
Elbow nipple, nipple
|
For IPS
|
| 25. |
949918
|
[1] |
Shut-off cock
|
For IPS and inboard
|
| 26. |
976932
|
[2] |
Gasket
|
For inboard
|
| 27. |
943986
|
[2] |
Nipple
|
For inboard
|
