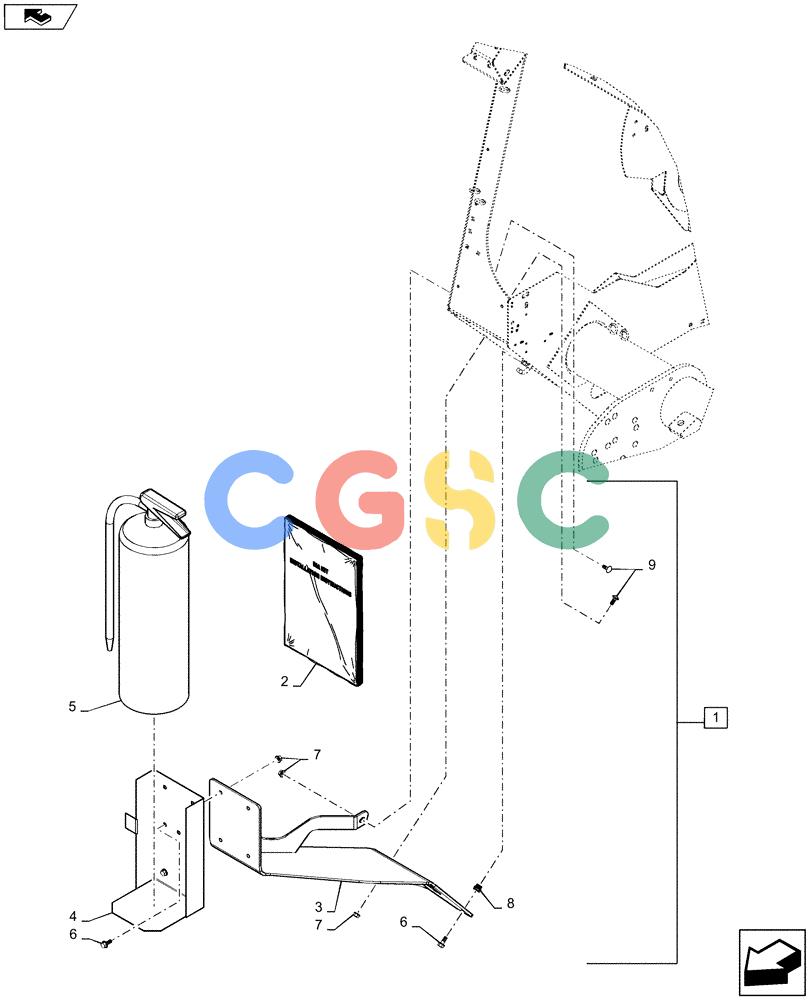

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (88.100.05[01]) - DIA, KIT, FIRE EXTINGUISHER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
307 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84542883
|
[1] |
DIA KIT, HARVESTER
|
NH
Fire Extinguisher, Incl 2 - 7
|
| 2. |
84394619
|
[1] |
INSTRUCTION
|
NH
|
| 3. |
84542884
|
[1] |
MOUNT
|
NH
|
| 4. |
84271991
|
[1] |
MOUNT
|
NH
|
| 5. |
9827423
|
[1] |
FIRE EXTINGUISHER,Classification A
|
NH
|
| 6. |
9804258
|
[6] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 7. |
9804277
|
[6] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 8. |
86610200
|
[1] |
THREADED INSERT,M8 x 1.25
|
NH
|
| 9. |
86507486
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
