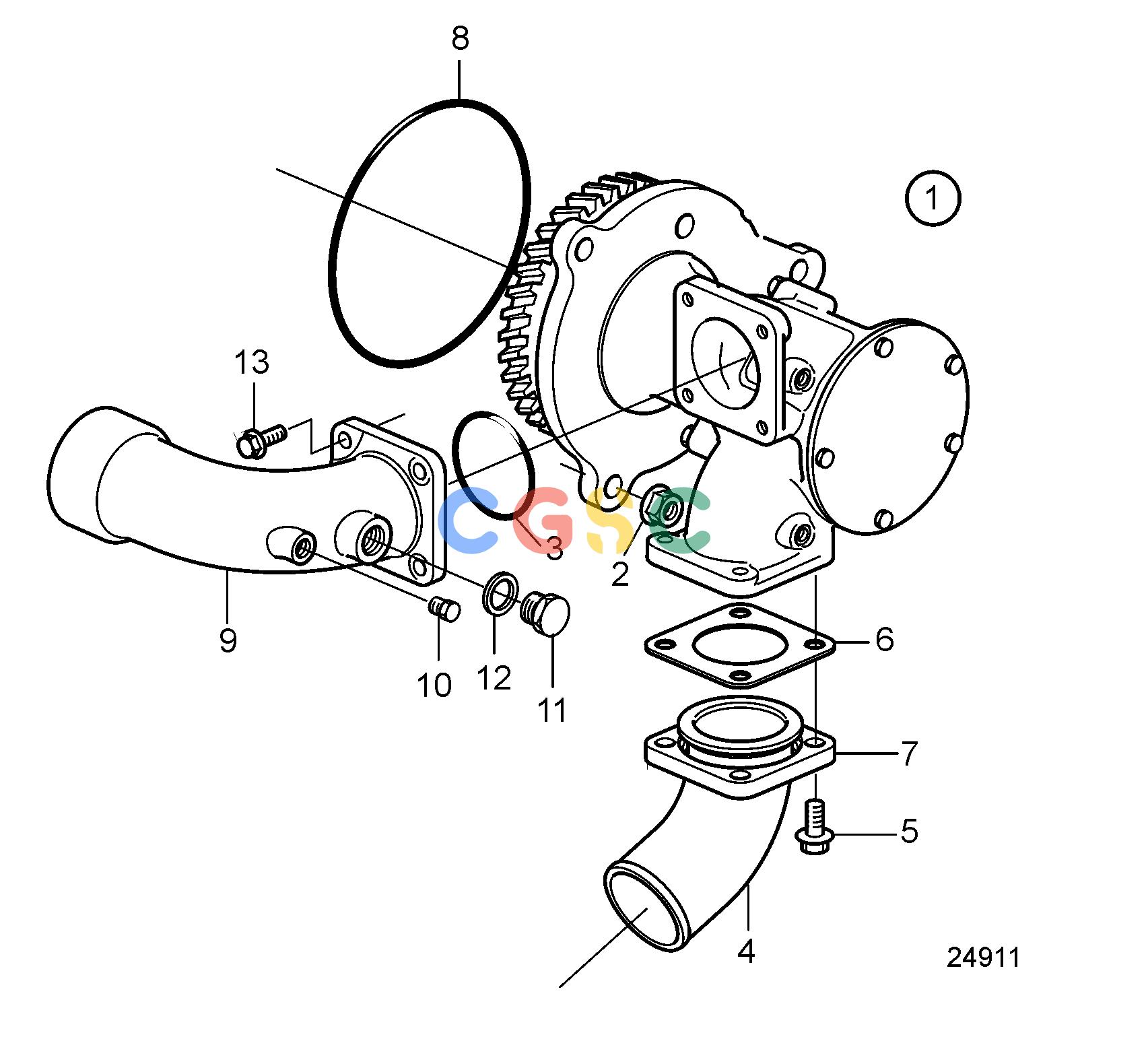

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHCooling SystemSea Water Pump for Heat ExchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
741 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3886848
|
[1] |
Sea water pump
|
Replaced by 22905150
|
| 1. |
22905150
|
[1] |
Sea water pump
|
|
| 1. |
|
|
|
|
| 2. |
990942
|
[3] |
Flange nut
|
|
| 3. |
925073
|
[1] |
O-ring
|
|
| 4. |
3828559
|
[1] |
Hose attachment
|
|
| 5. |
984753
|
[4] |
Flange screw
|
|
| 6. |
862583
|
[1] |
Gasket
|
|
| 7. |
842867
|
[1] |
Flange
|
|
| 8. |
992065
|
[1] |
O-ring
|
|
| 9. |
3883781
|
[1] |
Pipe
|
|
| 10. |
981749
|
[1] |
Plug
|
|
| 11. |
982293
|
[1] |
Plug
|
|
| 12. |
11998
|
[1] |
Gasket
|
|
| 13. |
984735
|
[4] |
Flange screw
|
|
