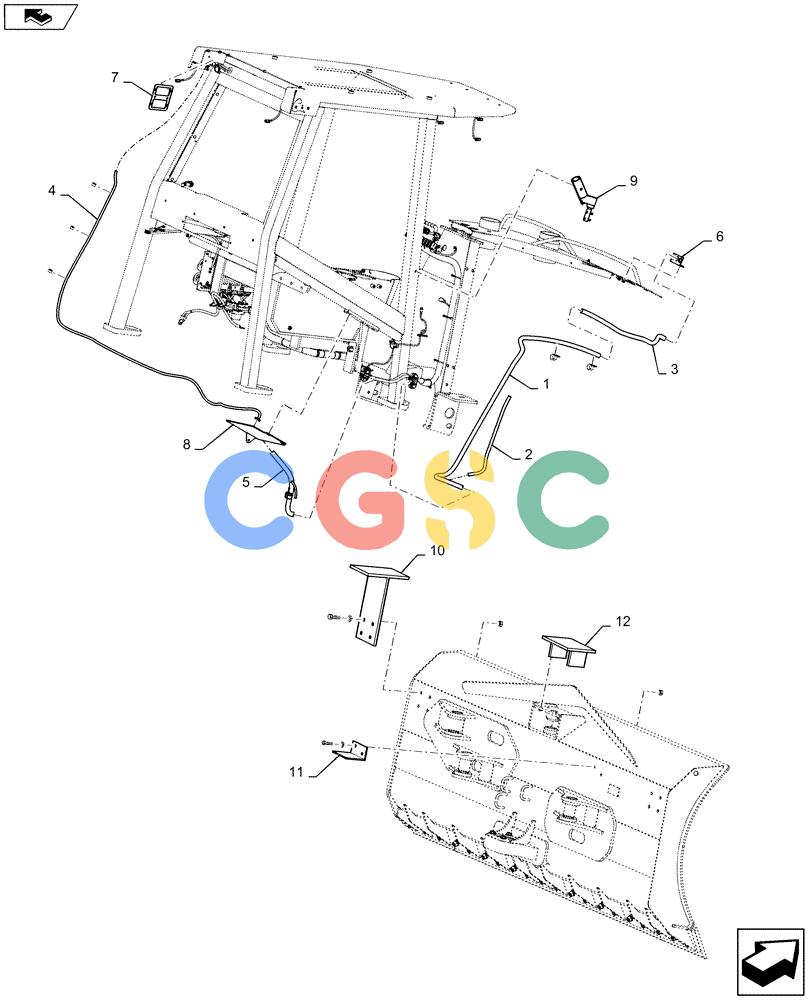

纽荷兰零件查询(D150C XLT) - CRAWLER DOZER - TIER 4A (10/13-) (55.680.AA[01]) - BLADE, GUIDE, TREMBLE READY New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
931 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47411793 | [1] | WIRE HARNESS | BURTrimble 5m Extension |
| 2. | 47411794 | [1] | WIRE HARNESS | BURDisplay |
| 3. | 47411786 | [1] | WIRE HARNESS | BURMain |
| 4. | 47411795 | [1] | WIRE HARNESS | BURRadio |
| 5. | 47365599 | [1] | WIRE HARNESS | BURInterface |
| 6. | 47411781 | [1] | BRACKET | BURQuick Connect |
| 7. | 47411780 | [1] | BRACKET | BURRadio |
| 8. | 47411785 | [1] | BRACKET | BURDozer Controller |
| 9. | 47411783 | [1] | BRACKET | BURDisplay Plate |
| 10. | 47411774 | [2] | BRACKET | BURSide Mast |
| 11. | 47411775 | [1] | BRACKET | BURCenter Mast |
| 12. | 47411778 | [1] | BRACKET | BURSlope Sensor |
