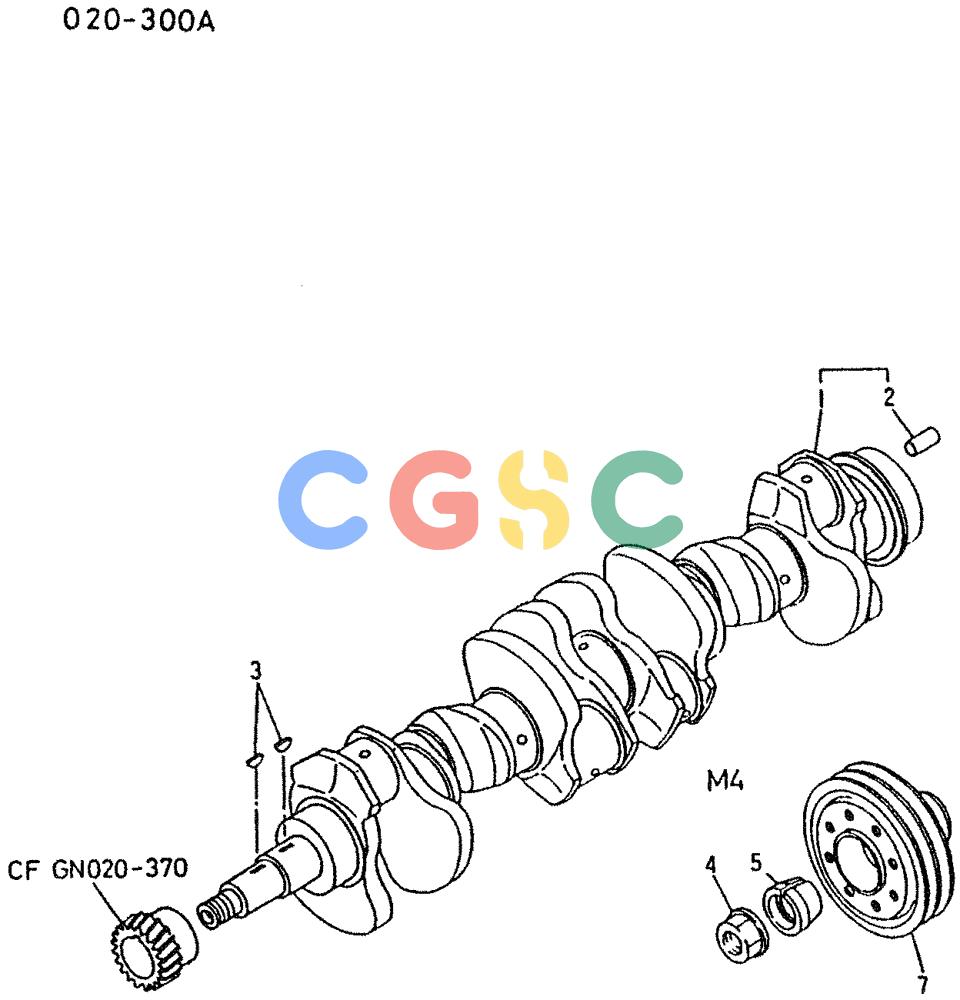

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-011 ) - CRANKSHAFT & PULLEY Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
507 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME082505 | [1] | CRANKSHAFT | KOBCRANKSHAFT ASSY Superseded by part number: VAME300137 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKSHAFT |
| 2. | VAMF472407 | [1] | PIN | KOBPIN,DOWEL 14 |
| 3. | VAMS476137 | [2] | WOODRUFF KEY | KOBKEY,WOODRUFF 7X22 Superseded by part number: VAF287007022 |
| 4. | VAMH004045 | [1] | NUT | KOBNUT 24 |
| 5. | VAME023769 | [1] | ROCKER ARM COTTER | KOBCONE |
| 7. | VAME088287 | [1] | PULLEY | KOBPULLEY,CRANKSHAFT D160 AX2 |
