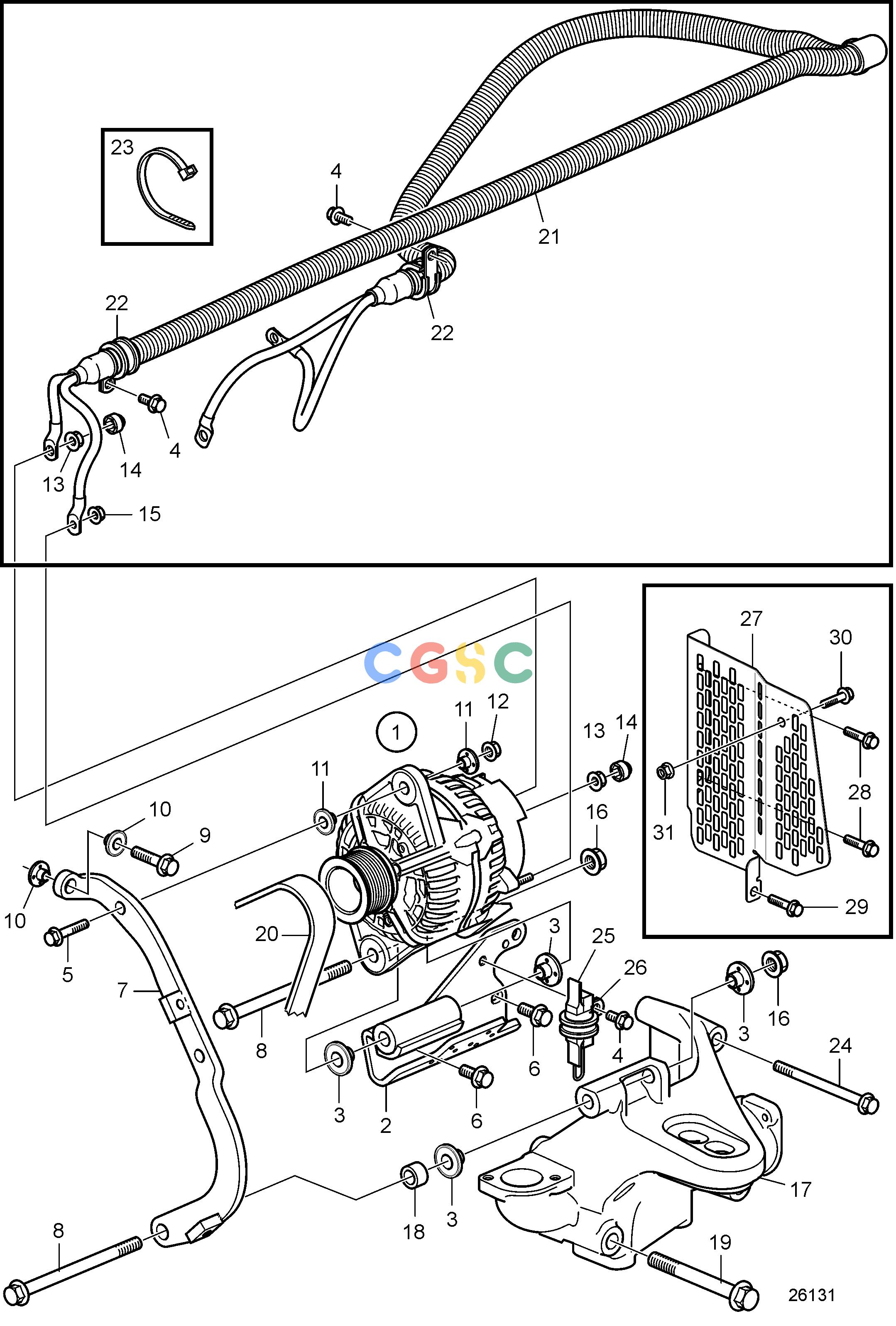

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
834 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21429786
|
[1] |
Alternator
|
28V 110A
|
| 1. |
|
|
|
|
| 2. |
21421863
|
[1] |
Alternator bracket
|
Replaced by 22572118
|
| 2. |
22572118
|
[1] |
Alternator bracket
|
|
| 3. |
21308514
|
[4] |
Insulating bushing
|
|
| 4. |
984752
|
[3] |
Flange screw
|
|
| 5. |
984738
|
[2] |
Flange screw
|
|
| 6. |
984733
|
[2] |
Flange screw
|
|
| 7. |
3888085
|
[1] |
Alternator bracket
|
SN-2013665901
|
| 7. |
78466882
|
[1] |
Alternator bracket
|
SN2013665902-
|
| 8. |
984826
|
[2] |
Flange screw
|
|
| 9. |
984755
|
[1] |
Flange screw
|
|
| 10. |
21308512
|
[2] |
Insulating bushing
|
|
| 11. |
21328137
|
[2] |
Insulating bushing
|
|
| 12. |
990950
|
[1] |
Flange lock nut
|
|
| 13. |
983715
|
[2] |
Hexagon nut
|
|
| 14. |
20576874
|
[2] |
Cap plug
|
|
| 15. |
983714
|
[1] |
Hexagon nut
|
|
| 16. |
971099
|
[2] |
Flange lock nut
|
|
| 17. |
21256248
|
[1] |
Engine bracket
|
|
| 18. |
1678297
|
[1] |
Spacer sleeve
|
|
| 19. |
968902
|
[4] |
Flange screw
|
|
| 20. |
7749490_067
|
|
V-ribbed belt
|
|
| 21. |
21100789
|
[1] |
Wiring harness
|
|
| 22. |
947827
|
[2] |
Clamp
|
|
| 23. |
948211
|
[15] |
Cable tie
|
|
| 24. |
975107
|
[1] |
Flange screw
|
|
| 25. |
21216813
|
[1] |
Diode unit
|
|
| 26. |
949379
|
[1] |
Clamp
|
|
| 27. |
21809827
|
[1] |
Protecting screen
|
No alternator
|
| 28. |
984752
|
[2] |
Flange screw
|
|
| 29. |
984733
|
[1] |
Flange screw
|
|
| 30. |
990940
|
[1] |
Flange nut
|
|
| 31. |
984736
|
[1] |
Flange screw
|
|
