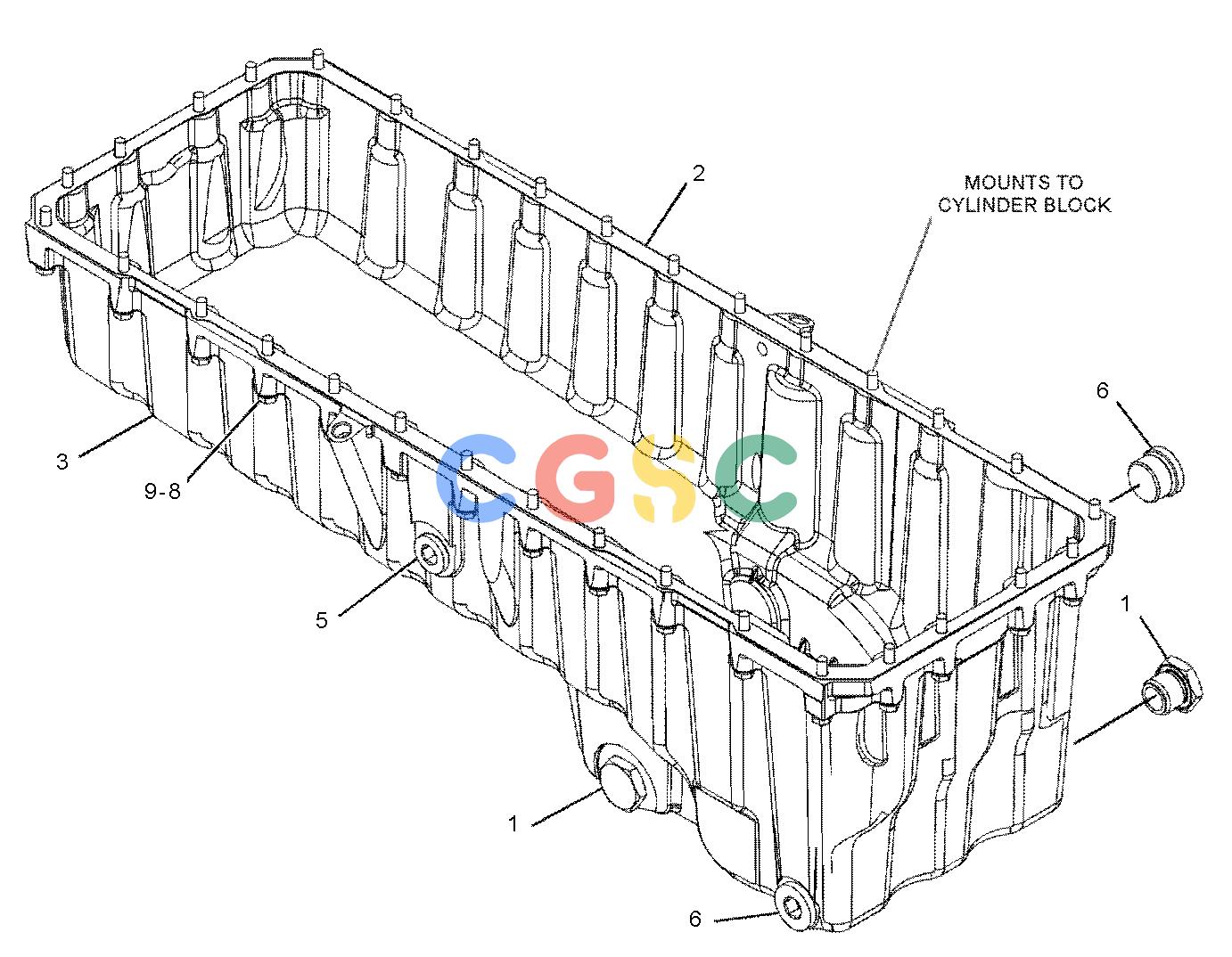

卡特零件查询（725C） 348-8185: PAN GP-OIL
广数供应链运营团队, 14 02月, 2025，浏览：
797 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 392-0775 | [2] | PLUG AS-DRAIN | |
| | | | (EACH INCLUDES) |
| | 9X-6451 | [1] | PLUG-DRAIN(MAGNETIC) | |
| | 279-2252 | [1] | SEAL-O-RING | |
| 2. | 190-6114 | [1] | GASKET-OIL PAN | |
| 3. | 348-8373 | [1] | PAN-OIL | |
| 5. | 389-3709 | [1] | PLUG AS | |
| | 238-5082 | [1] | SEAL-O-RING | |
| | 360-3682 | [1] | PLUG-O-RING | |
| 6. | 389-3728 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 238-5084 | [1] | SEAL-O-RING | |
| | 360-3684 | [1] | PLUG | |
| 8. | 6V-3918M | [32] | BOLT(M8X1.25X50-MM) | |
| 9. | 9M-1974 | [32] | WASHER-HARD(8.8X16X2-MM THK) | |
| | | | |
| | 4C-9612BF | | SEALANT-SILICONE | |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
